In-Vehicle Temperature Sensor

WARNING: This page is about a different car, the 2003 Ford Thunderbird. However, it is still accessible from the selected car via links, so may be relevant.

Remove the instrument cluster finish panel. For additional information, refer to BODY SYSTEM - EXTERIOR .
Remove the components in the order indicated in the following illustration.

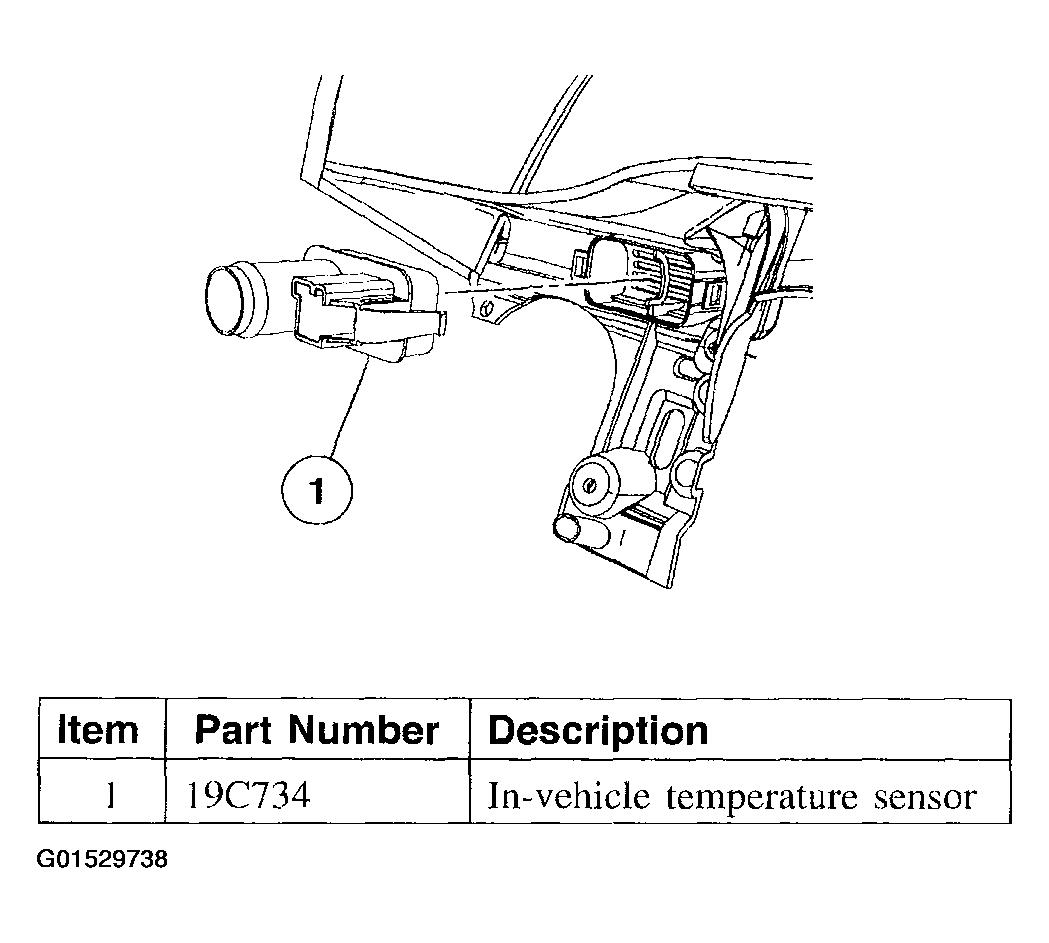

Fig 1: In-Vehicle Temperature Sensor Component Removal Sequence
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
