Instrument Panel Registers: Notes

WARNING: This page is about a different car, the 2003 Ford Thunderbird. However, it is still accessible from the selected car via links, so may be relevant.

Remove the components in the order indicated in the following illustration. To remove individual components, only carry out the following steps:

Fig 1: Component Removal Chart
Courtesy of FORD MOTOR CO.

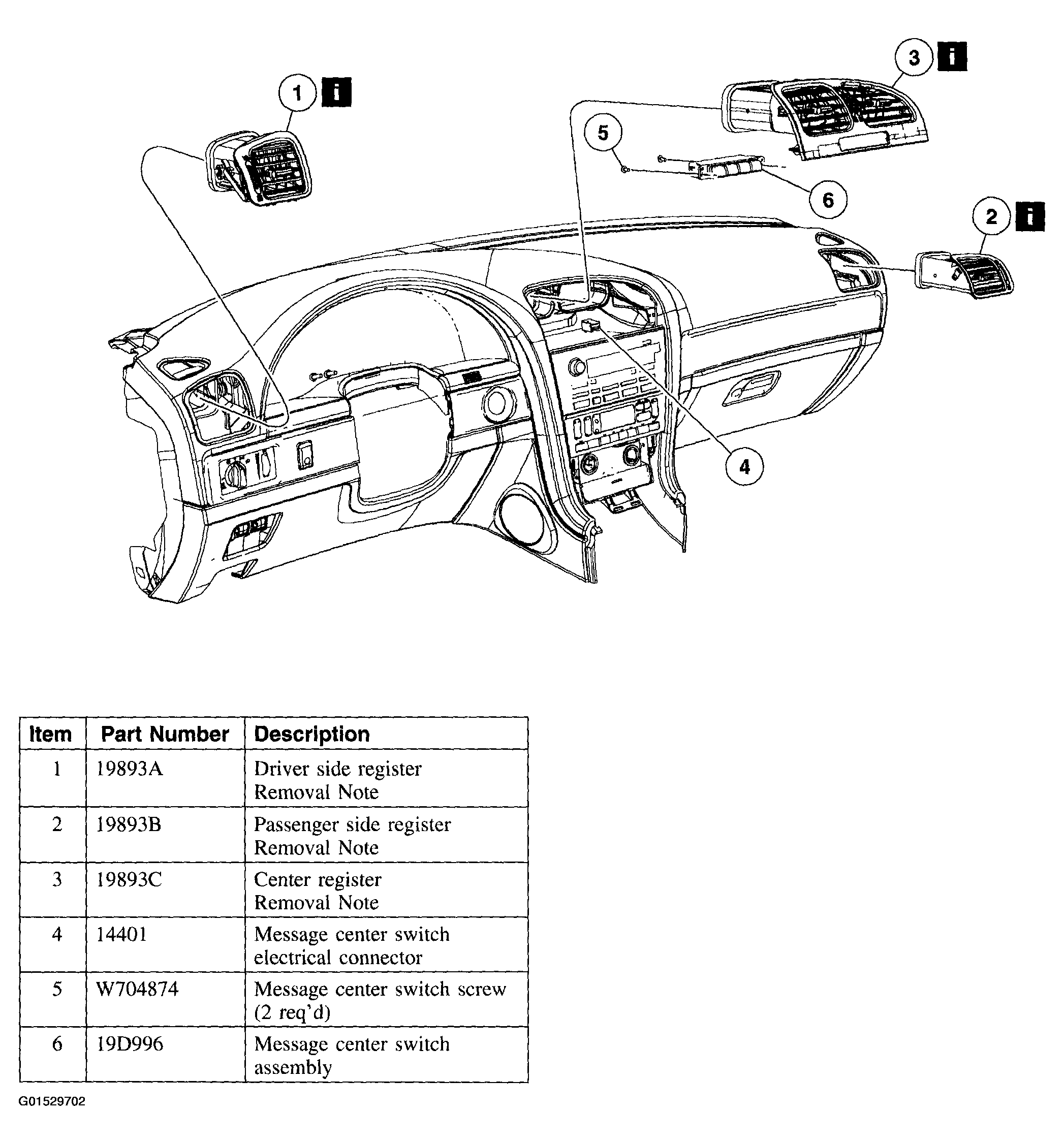

Fig 2: Instrument Panel Registers Component Removal Sequence
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
