Brake Pedal: Notes

WARNING: This page is about a different car, the 2004 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: When removing the adjustable pedal assembly, make sure that the pedals are adjusted to the fully forward position.

Depower the supplemental restraint system (SRS). For additional information, refer to AIR BAG RESTRAINT SYSTEMS .

Remove the parts in the order indicated in the following illustration and table.

To remove individual parts, only carry out the listed steps:

BRAKE PEDAL COMPONENT REMOVAL STEPS

Part	Steps
Adjustable pedal assembly	1-12
Adjustable pedal motor	1-14

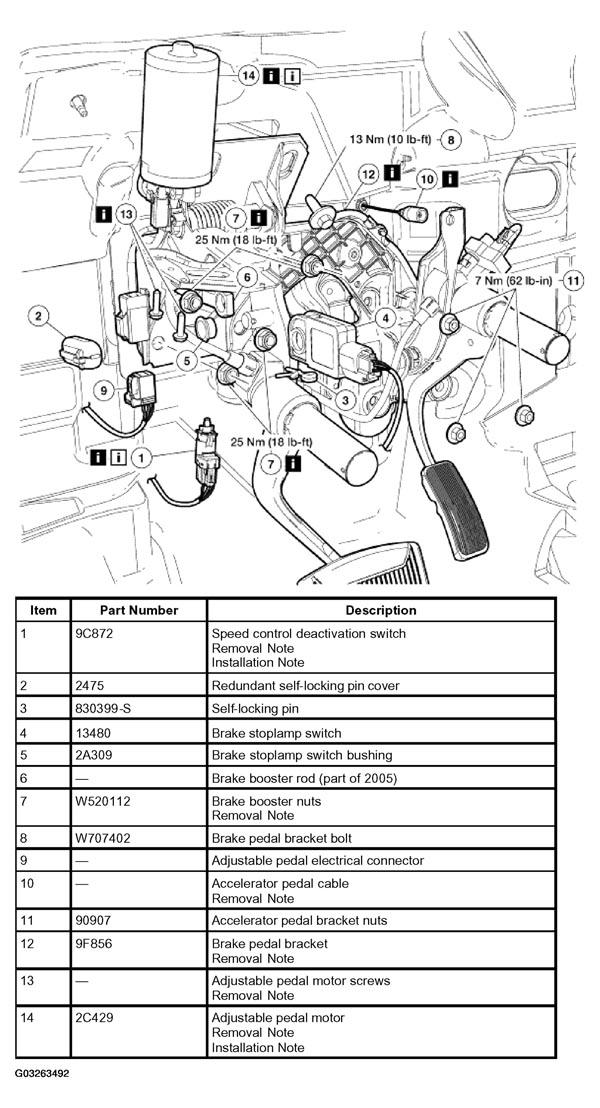

Fig 1: Brake Pedal Component Removal Steps

Courtesy of FORD MOTOR CO.

To install, reverse the removal procedure.
Inspect the brake system for correct operation.
