Sensor Cluster C3179 (2WD)

WARNING: This page is about a different car, the 2004 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.

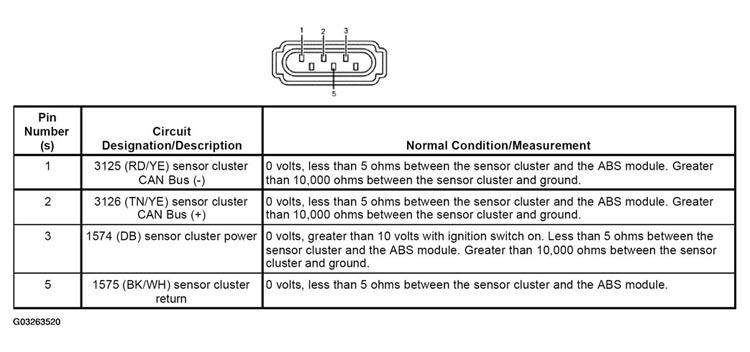

Fig 1: Identifying Sensor Cluster C3179 (2WD) Connector Terminal Specifications

Courtesy of FORD MOTOR CO.
