Speed Control Deactivator Switch C2227
WARNING:
This page is about a different car, the 2004 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.

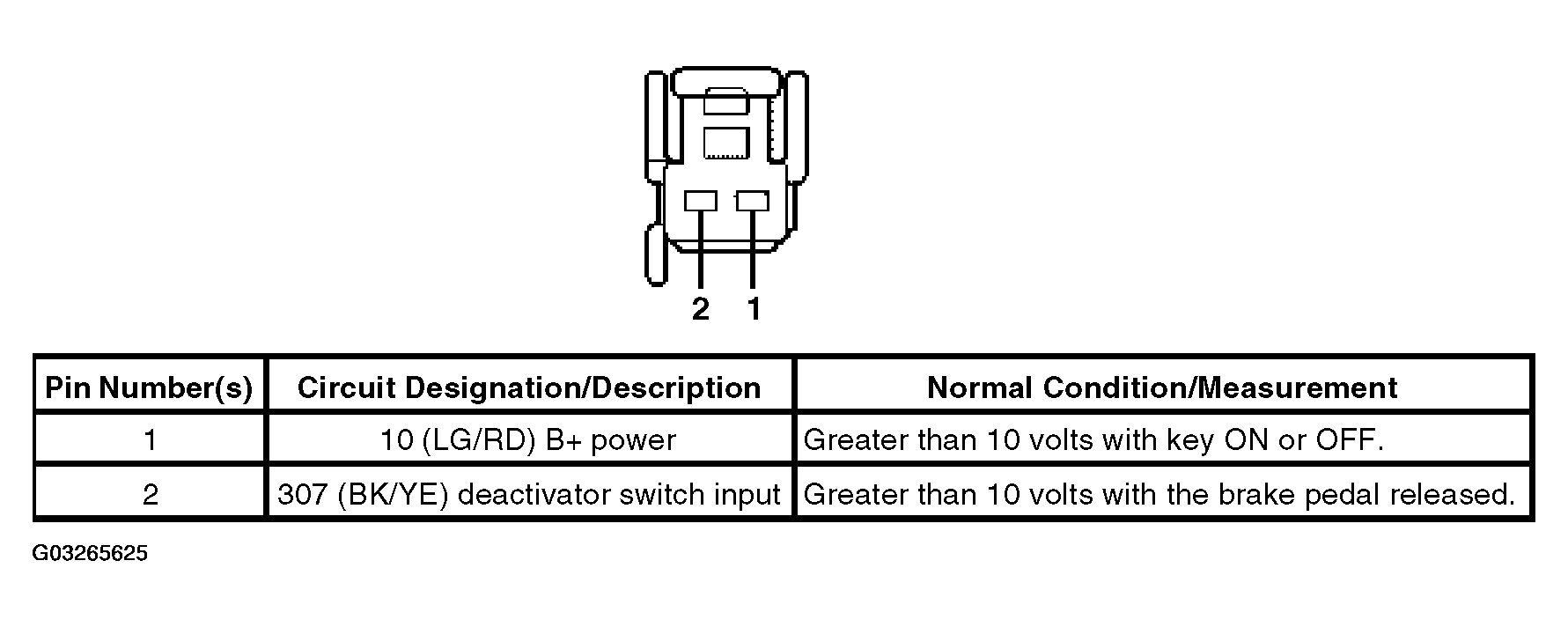

Fig 1: Locating Speed Control Deactivator Switch C2227 Connector Pin
Courtesy of FORD MOTOR CO.
