A/C Compressor Clutch Relay

WARNING: This page is about a different car, the 2004 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.

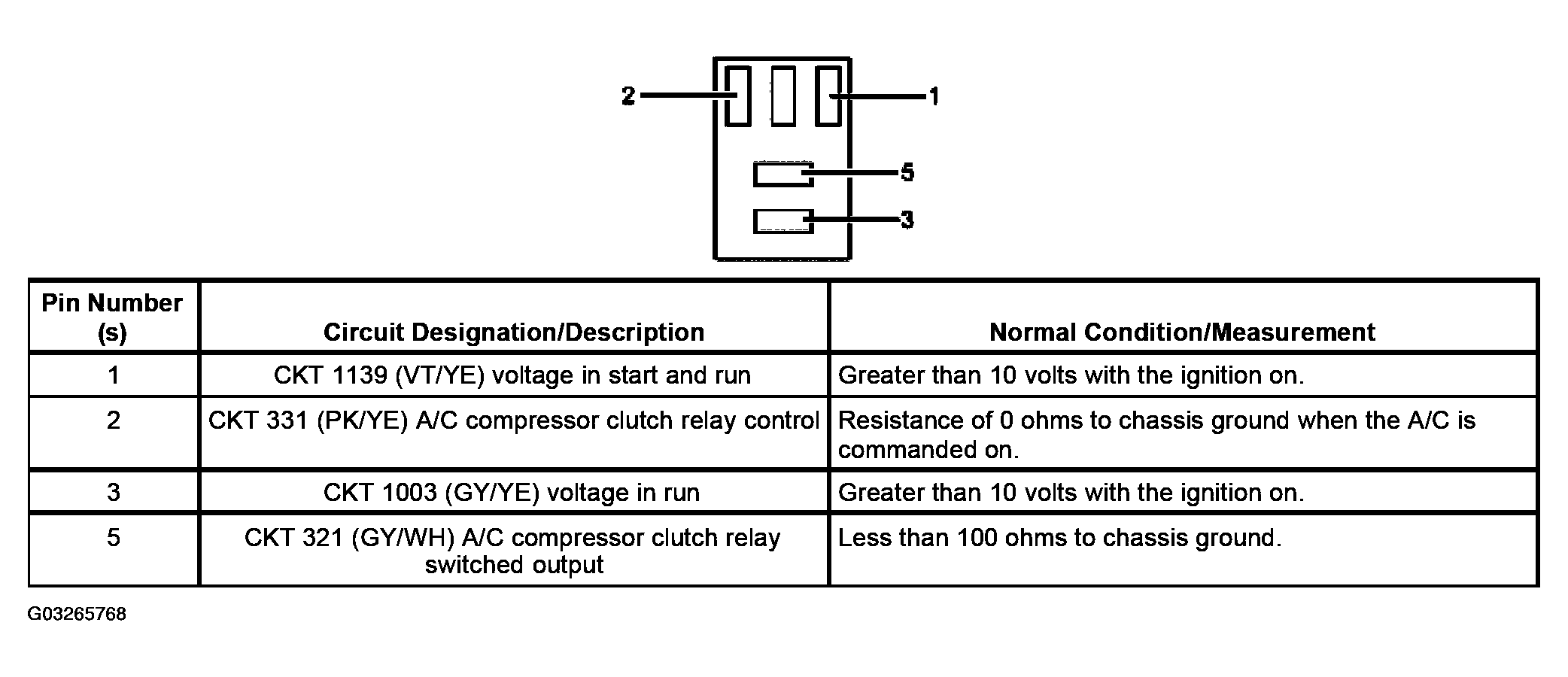

Fig 1: Identifying A/C Compressor Clutch Relay Connector Pins

Courtesy of FORD MOTOR CO.
