WARNING: This page is about a different car, the 2003 Ford Thunderbird. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Audio Unit C240A Connector Terminals
Courtesy of FORD MOTOR CO.

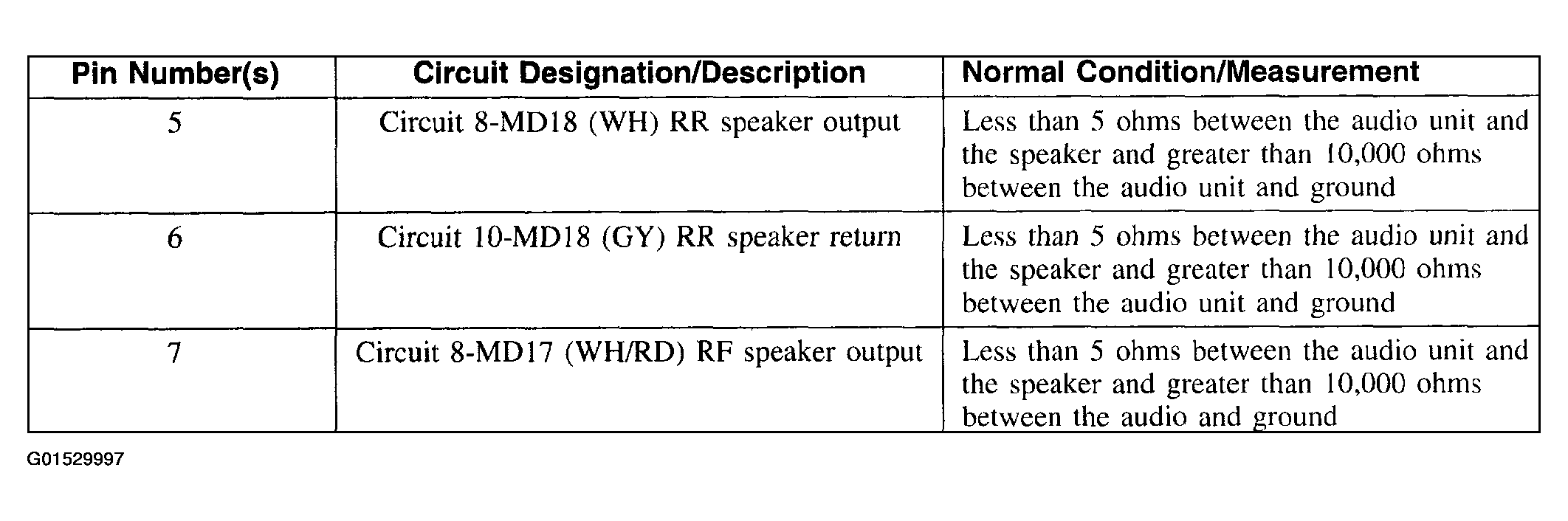

Fig 2: Audio Unit C240A Connector Terminal Specification Chart (1 Of 2)
Courtesy of FORD MOTOR CO.

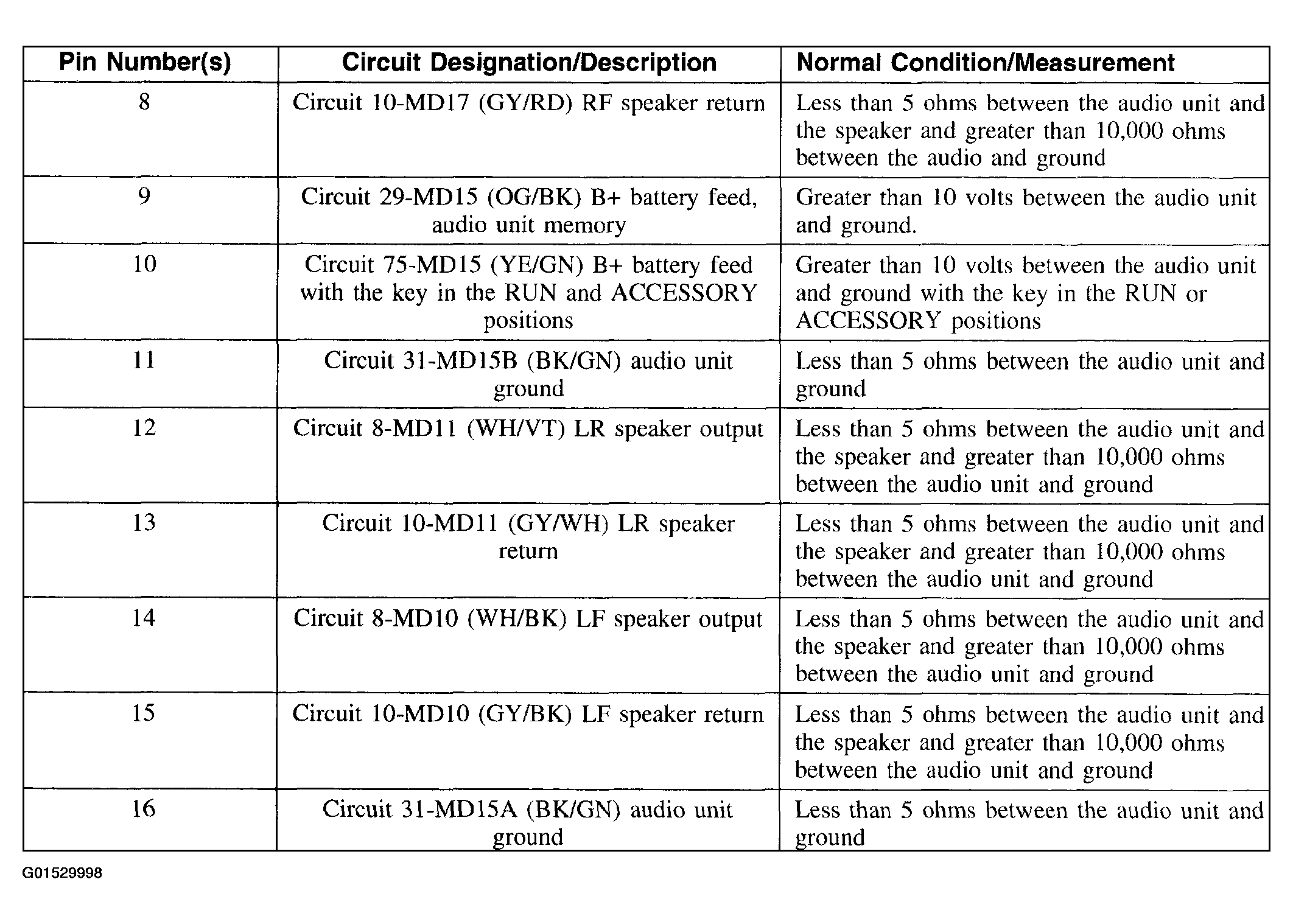

Fig 3: Audio Unit C240A Connector Terminal Specification Chart (2 Of 2)
