Steering Wheel Control Switch C208

WARNING: This page is about a different car, the 2003 Ford Thunderbird. However, it is still accessible from the selected car via links, so may be relevant.

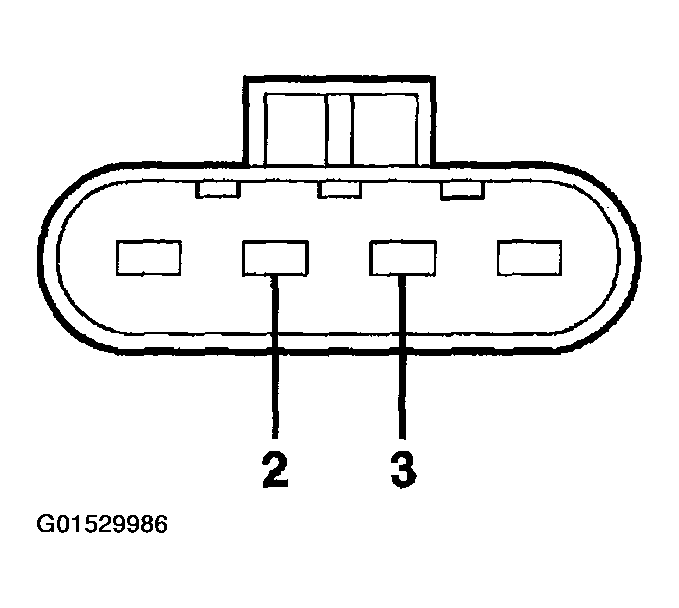

Fig 1: Steering Wheel Control Switch C208 Connector Terminals

Courtesy of FORD MOTOR CO.

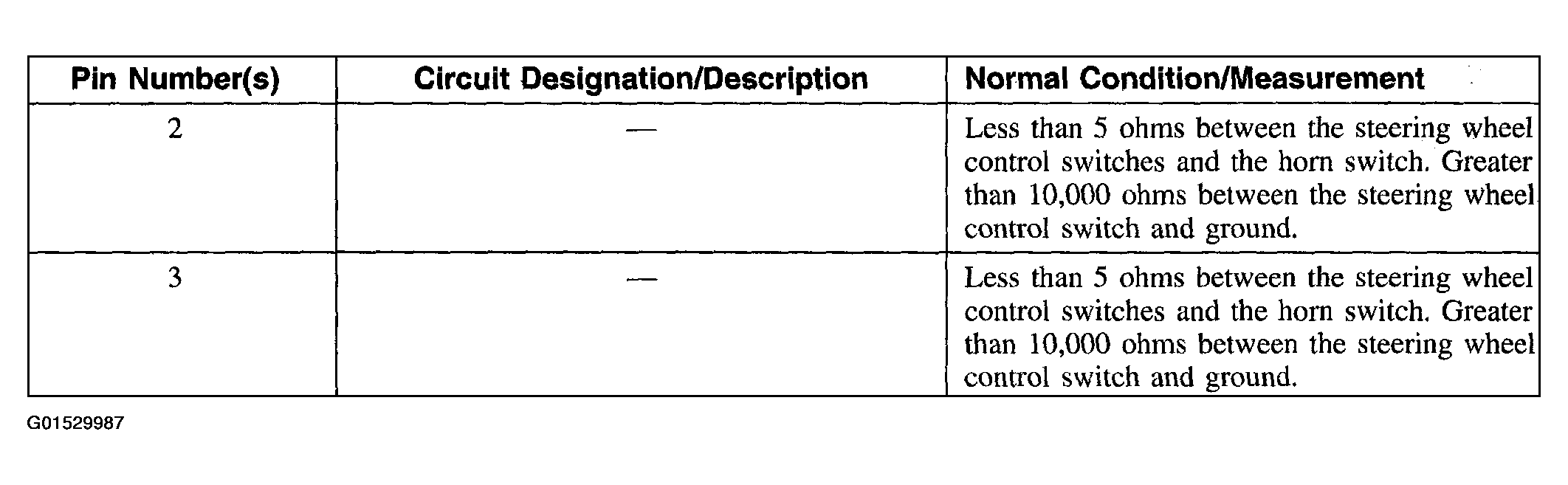

Fig 2: Steering Wheel Control Switch C208 Connector Terminal Specification Chart

Courtesy of FORD MOTOR CO.
