Heated seats, front

WARNING: This page is about a different car, the 2003 Ford Thunderbird. However, it is still accessible from the selected car via links, so may be relevant.

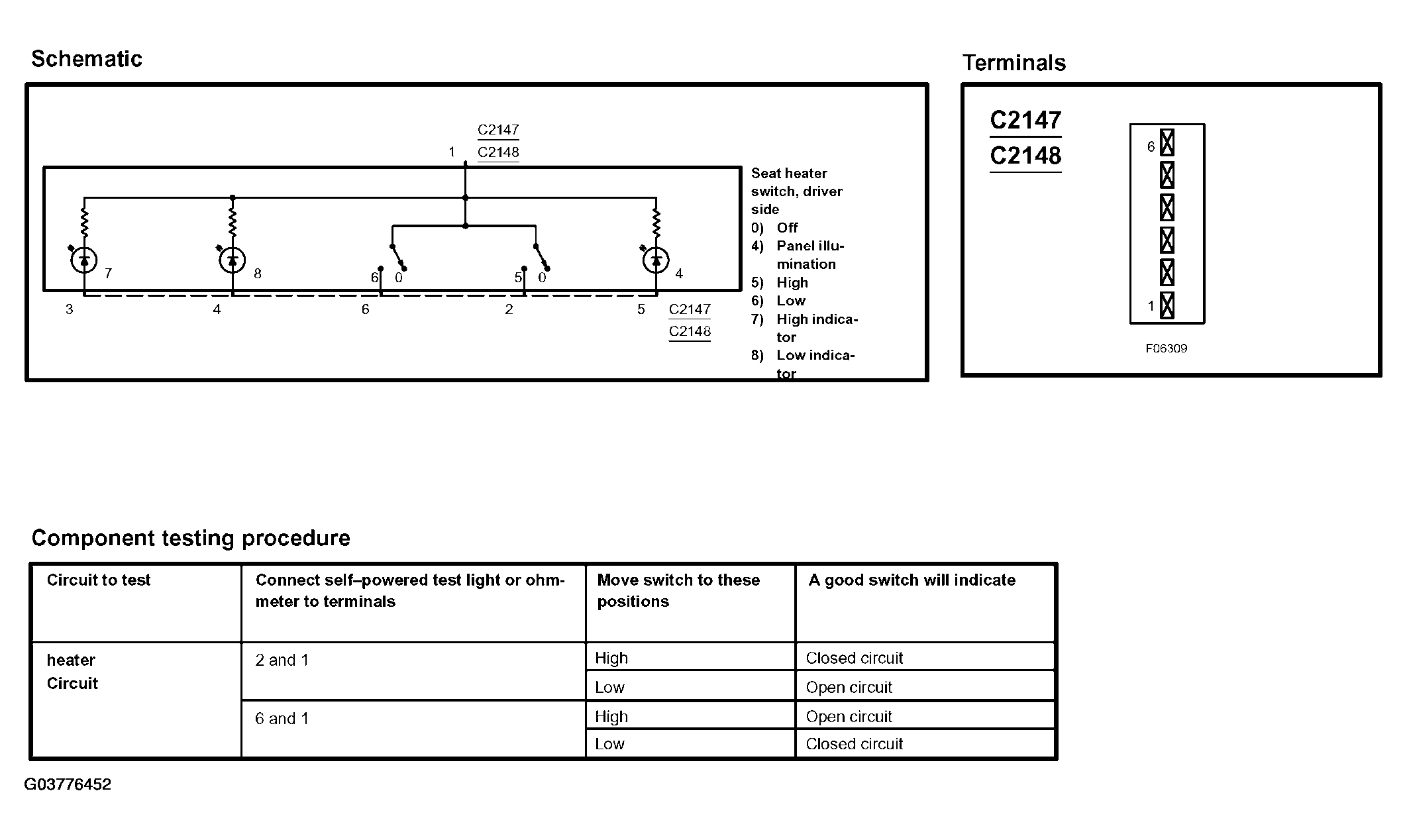

Fig 1: Testing Heated Seats (Front)

Courtesy of FORD MOTOR CO.
