Disassembled Views

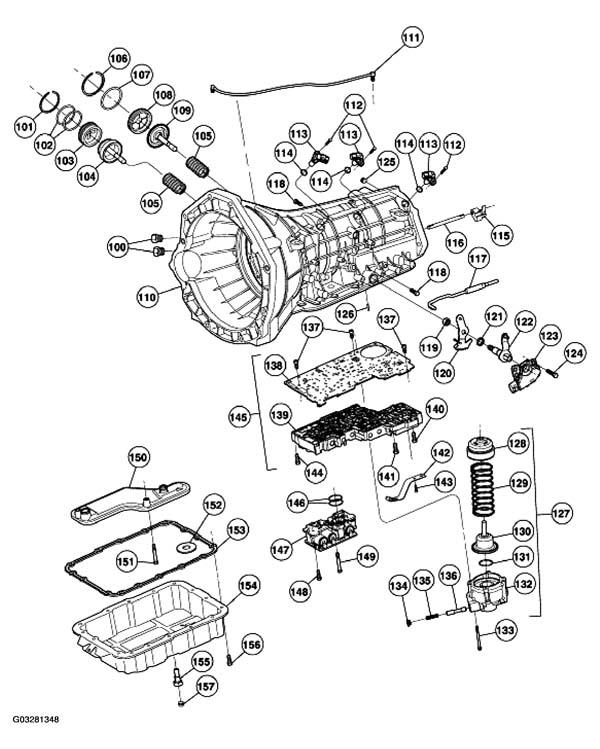

Fig 1: Exploded View Of Automatic Transmission (1 Of 3)

Courtesy of FORD MOTOR CO.

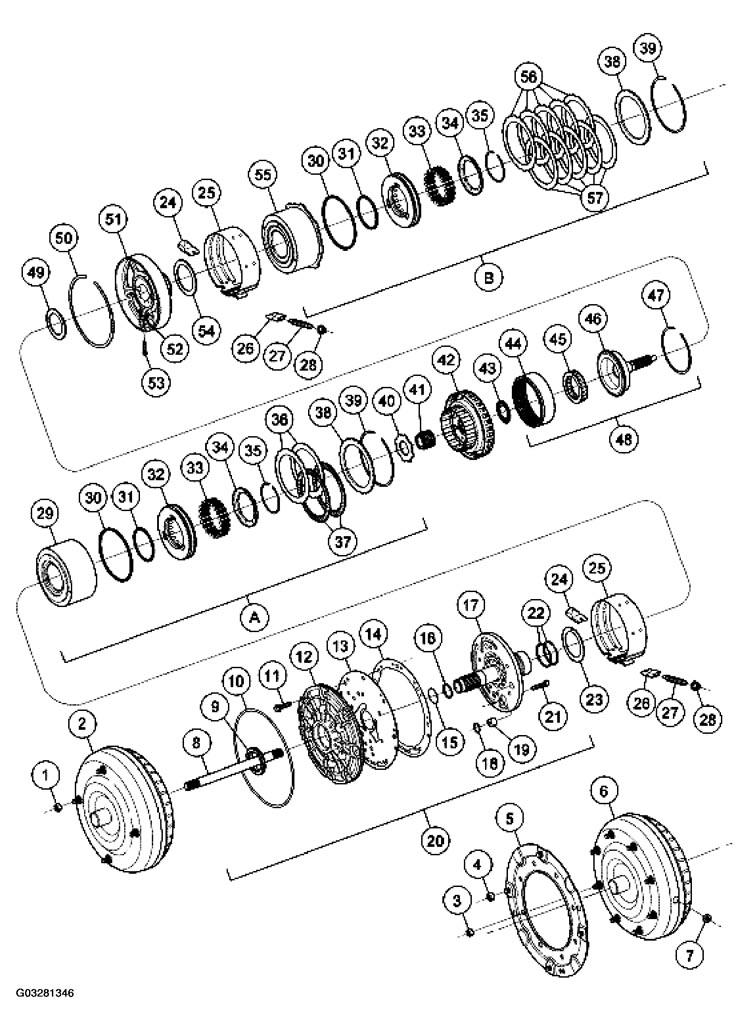

Fig 2: Exploded View Of Automatic Transmission (2 Of 3)

Courtesy of FORD MOTOR CO.

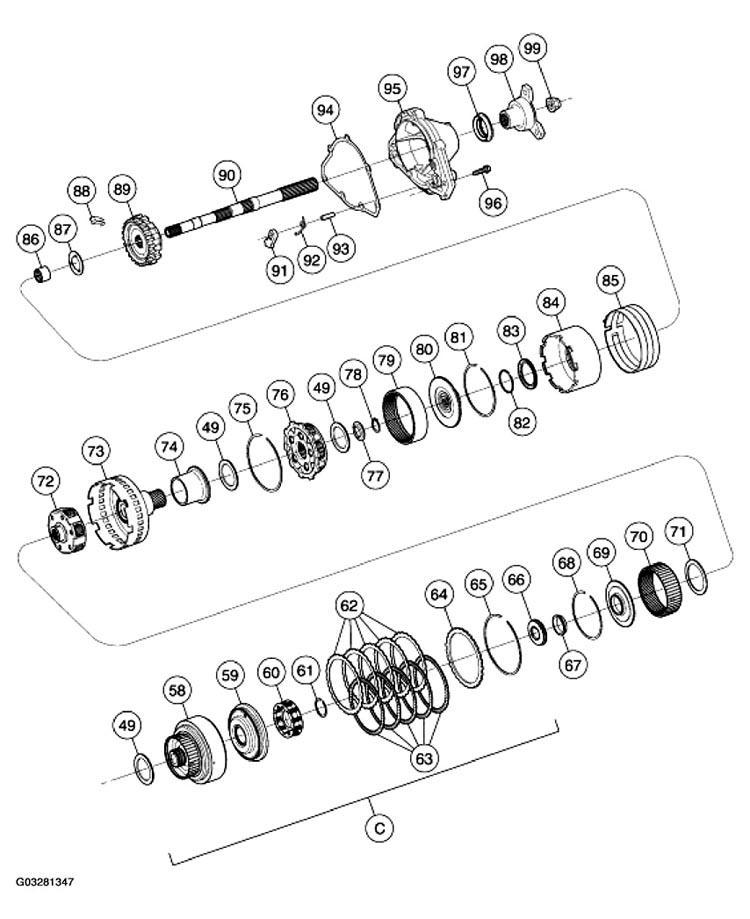

Fig 3: Exploded View Of Automatic Transmission (3 Of 3)

Courtesy of FORD MOTOR CO.

Fig 4: Exploded View Of Automatic Transmission Legend (Items 1-41)

Courtesy of FORD MOTOR CO.

Fig 5: Exploded View Of Automatic Transmission Legend (Items 42-76)

Courtesy of FORD MOTOR CO.

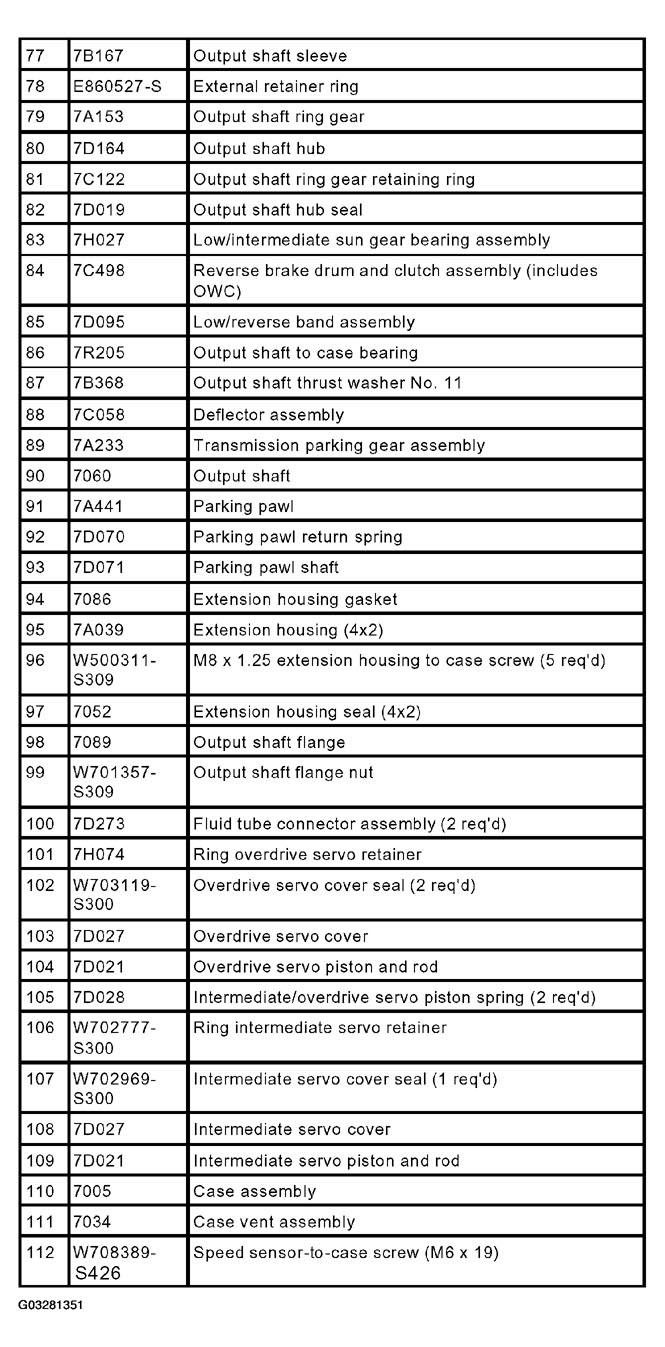

Fig 6: Exploded View Of Automatic Transmission Legend (Items 77-112)

Courtesy of FORD MOTOR CO.

Fig 7: Exploded View Of Automatic Transmission Legend (Items 113-145)

Courtesy of FORD MOTOR CO.

Fig 8: Exploded View Of Automatic Transmission Legend (Items 146-157; A-C)

Courtesy of FORD MOTOR CO.
