Powertrain Control Module (PCM) C175b

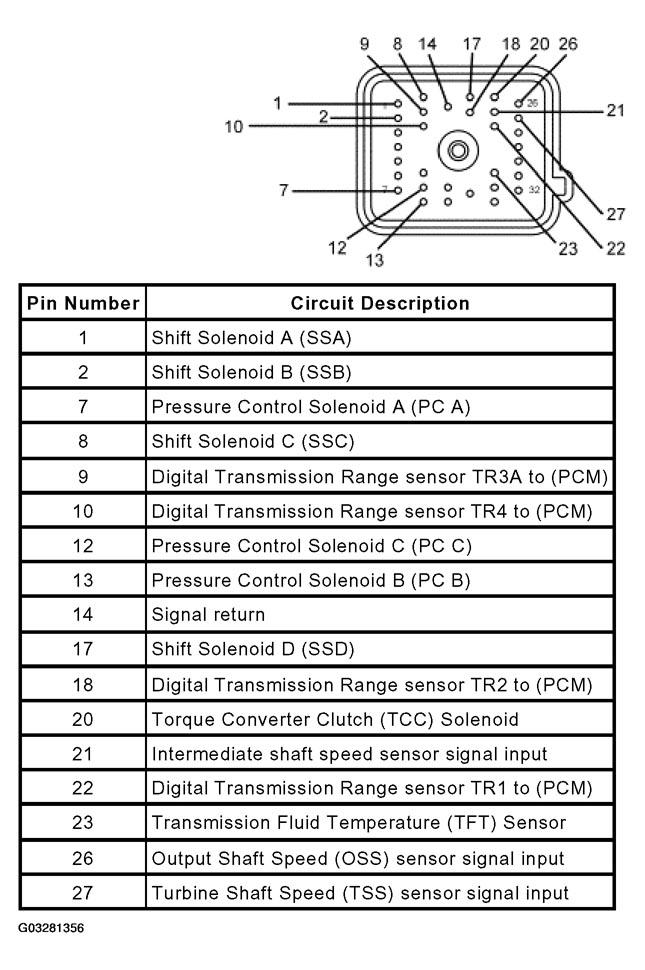

Fig 1: Identifying Powertrain Control Module (PCM) C175b
G03281356Courtesy of FORD MOTOR CO.
