Section 14 (Component Testing)
›
Component Testing
›
Window adjust switch
Window adjust switch
WARNING:
This page is about a different car, the 2004 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

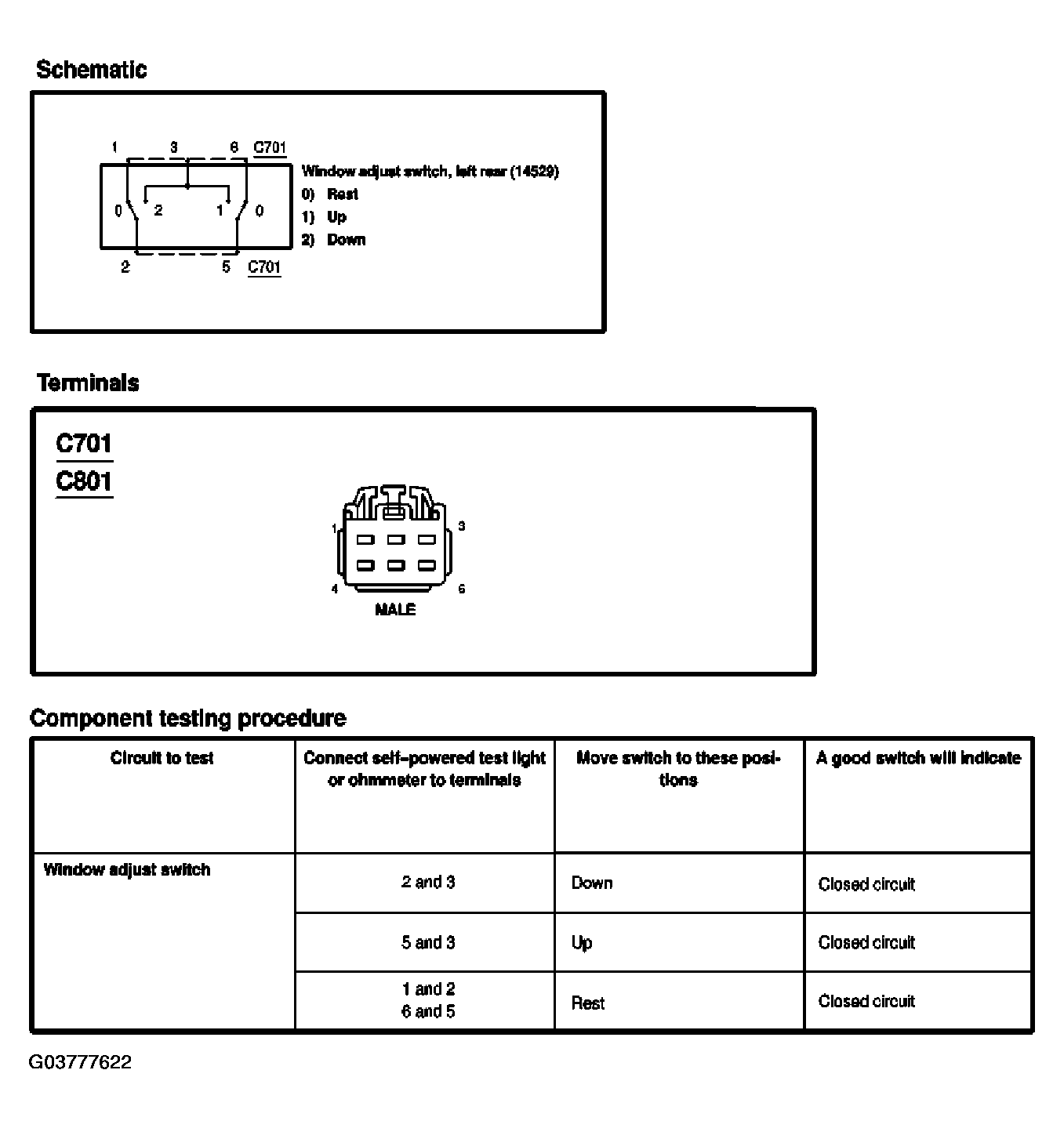

Fig 1: Testing Window Switch
Courtesy of FORD MOTOR CO.
