Transmission Connector Layouts: Notes

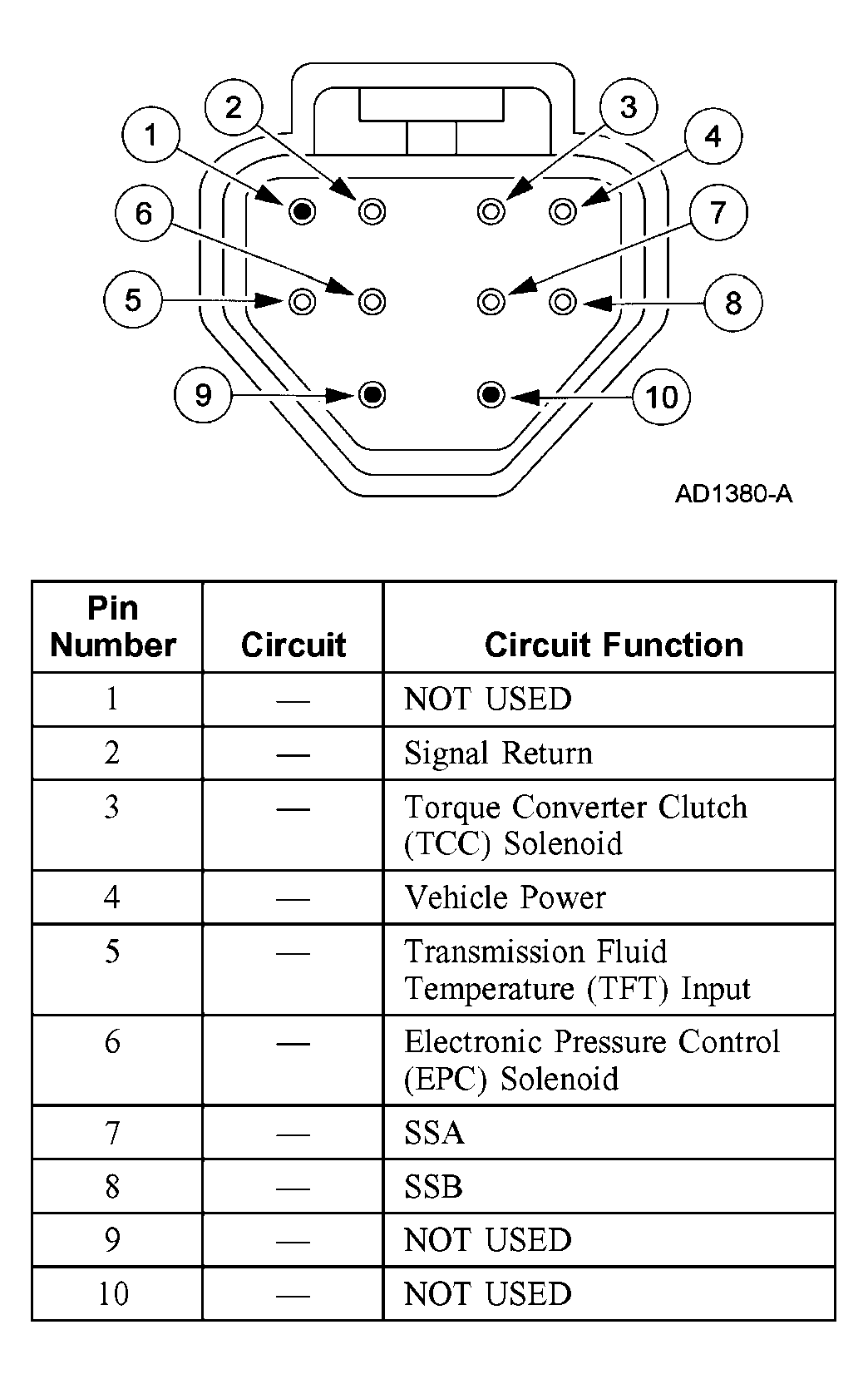

Fig 1: Identifying Transmission Vehicle Harness Connector

Courtesy of FORD MOTOR CO.

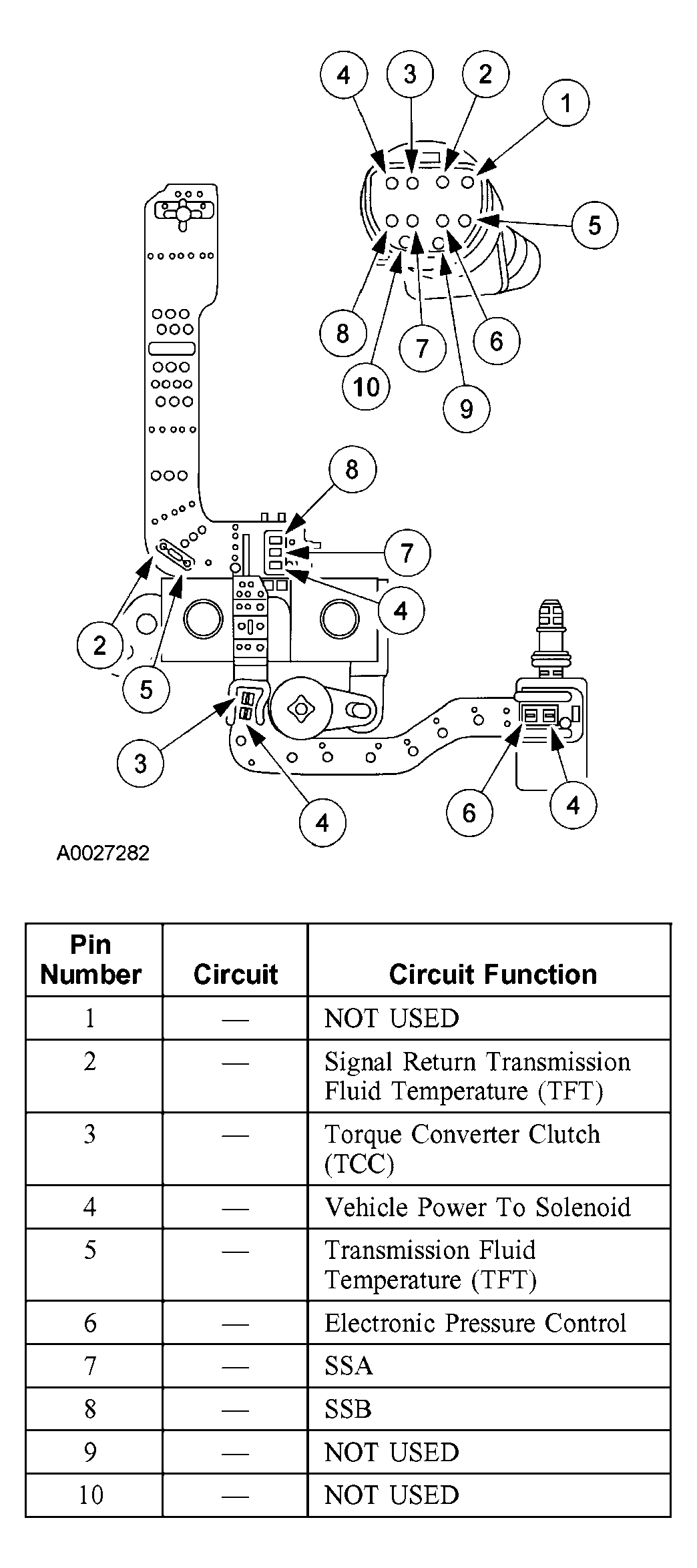

Fig 2: Identifying Transmission Internal Harness Connector

Courtesy of FORD MOTOR CO.

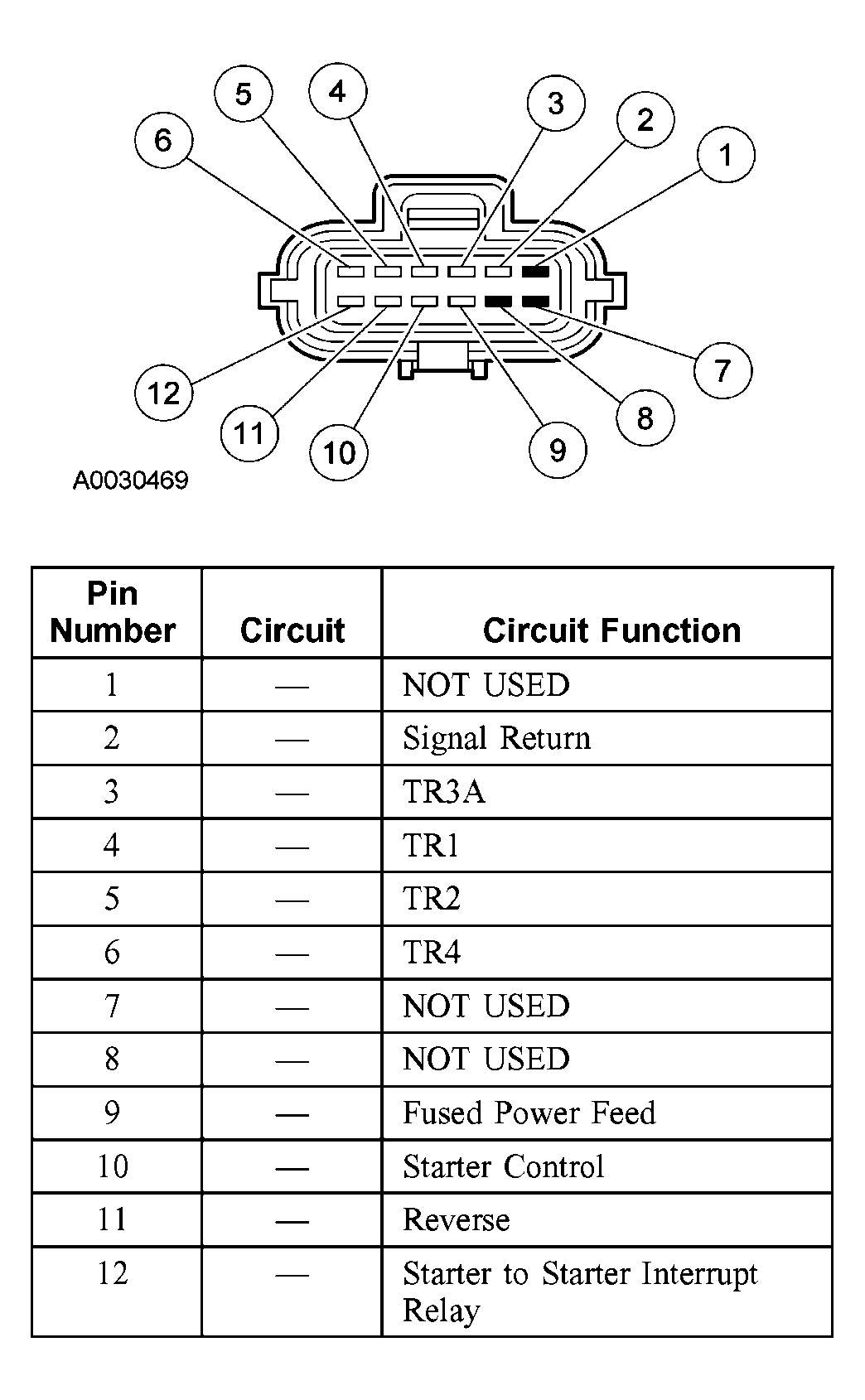

Fig 3: Identifying Digital Transmission Range (TR) Sensor Connector

Courtesy of FORD MOTOR CO.

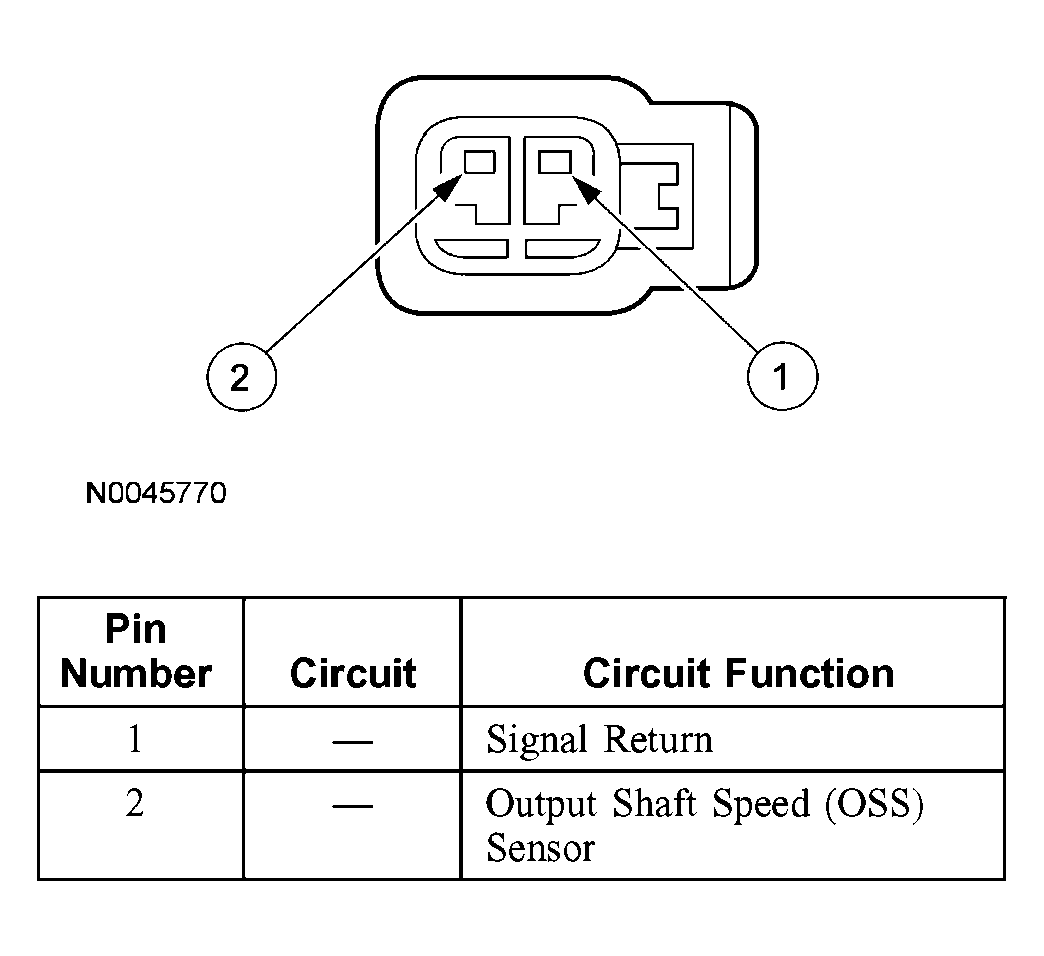

Fig 4: Identifying Output Shaft Speed (OSS) Sensor Harness Connector

Courtesy of FORD MOTOR CO.

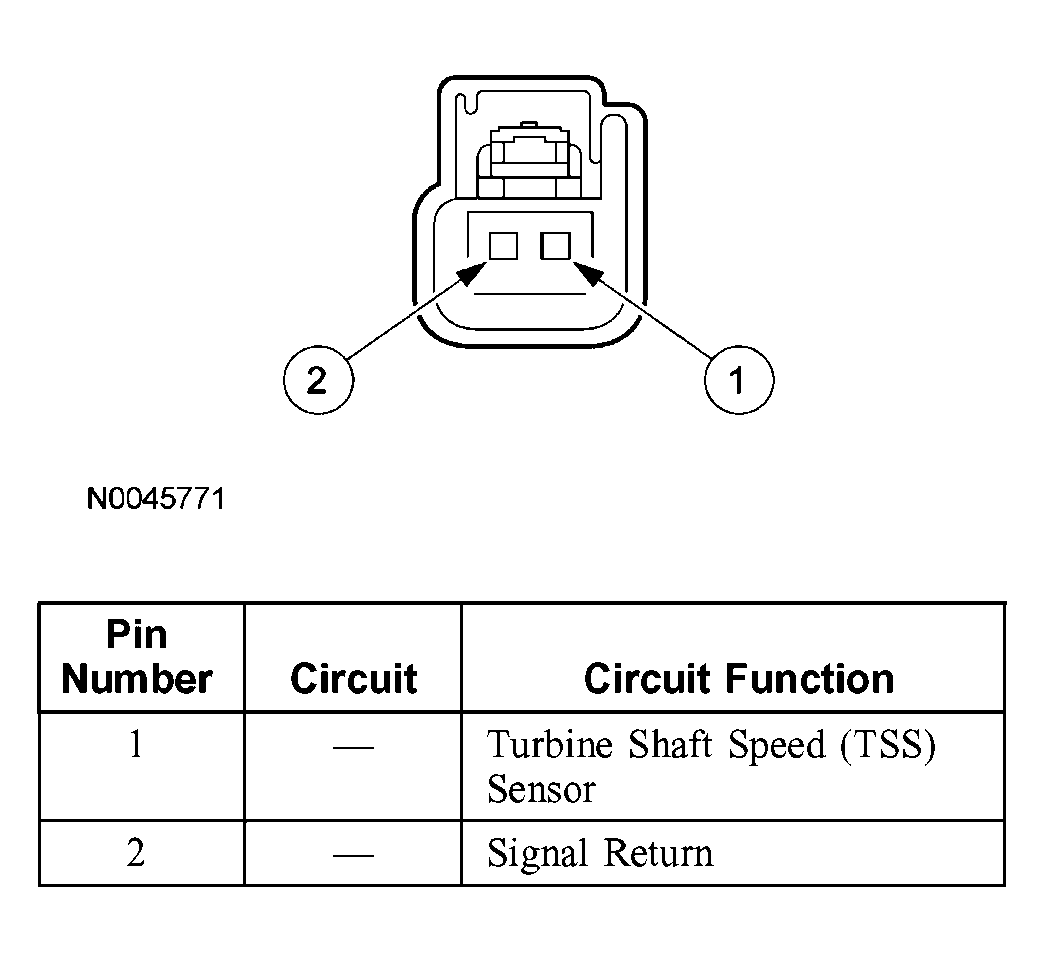

Fig 5: Identifying Turbine Shaft Speed (TSS) Sensor Harness Connector

Courtesy of FORD MOTOR CO.

Fig 6: Identifying Powertrain Control Module (PCM) Harness Connector Terminals

Courtesy of FORD MOTOR CO.
