Intermediate One-Way Clutch: Notes

Intermediate Clutch Cylinder Disassembled View

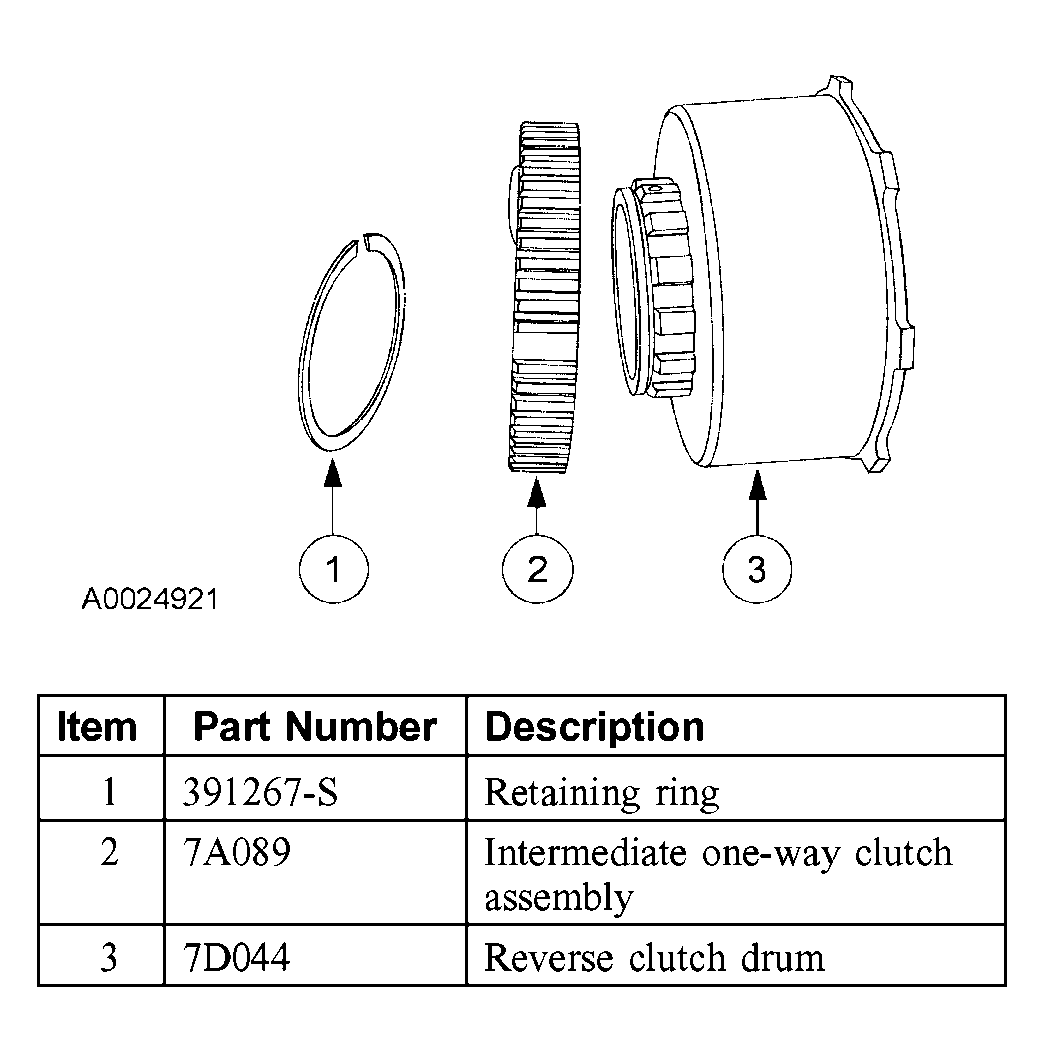

Fig 1: Exploded View Of Intermediate Clutch Cylinder
G03882702Courtesy of FORD MOTOR CO.
