Cable and Bracket Adjustment

Place the gearshift lever in the (D) position.
- Place a 1.3-kg (3-lb) weight on the gearshift lever.
Position the vehicle on a hoist. For additional information, refer to JACKING & LIFTING .
Disconnect the transmission shift cable from the manual lever.

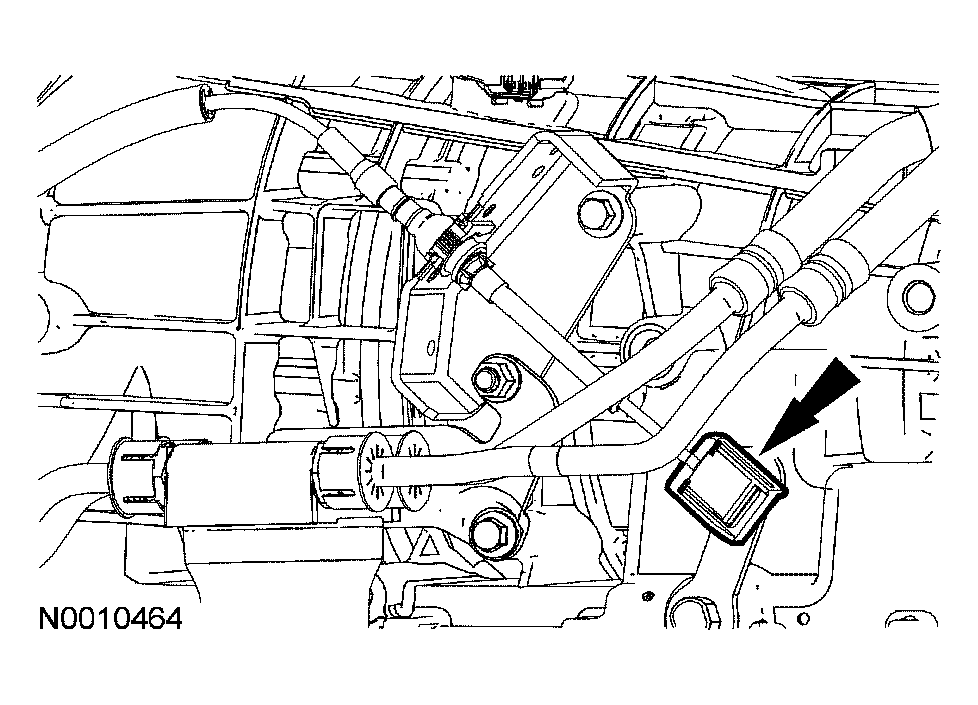

Fig 1: Disconnecting Transmission Shift Cable From Manual Lever
Courtesy of FORD MOTOR CO.
Unlock the lock tab on the transmission shift cable.

Fig 2: Unlocking Lock Tab On Transmission Shift Cable
Courtesy of FORD MOTOR CO.
For either automatic transmission, place the manual control lever in the (D) position.
1. Place the manual control lever in the first gear position.
2. Move the manual control lever two detents to the (D) position for the 4R70W transmission. Move the manual control lever three detents to the (D) position for the TorqShift transmission.

  Fig 3: Placing Manual Control Lever In First Gear Position
  Courtesy of FORD MOTOR CO.
Connect the transmission shift cable to the manual control lever.

Fig 4: Locating Transmission Selector Lever Cable
Courtesy of FORD MOTOR CO.
Lock the transmission shift cable lock tab.

Fig 5: Locking Transmission Shift Cable Lock Tab
Courtesy of FORD MOTOR CO.
Remove the 1.3-kg (3-lb) weight.
Carefully move the gearshift lever from detent to detent and compare with transmission settings. Verify that the vehicle will start in PARK or NEUTRAL and backup lamps illuminate in REVERSE. If not, Steps 1- 5 must be repeated and include digital TR or TR sensor adjustment in NEUTRAL. Readjust if necessary.
