Connector Views

Fig 1: A/C Clutch Field Coil Connector End View (C100)

G07843333

Courtesy of FORD MOTOR CO.

Fig 2: Crankshaft Position Sensor Connector End View (C101)

G07843334

Courtesy of FORD MOTOR CO.

Fig 3: Generator Connector End View (C102a)

G07843335

Courtesy of FORD MOTOR CO.

Fig 4: Generator Connector End View (C102b)

G07843336

Courtesy of FORD MOTOR CO.

Fig 5: Generator Connector End View (C102c)

G07843337

Courtesy of FORD MOTOR CO.

Fig 6: Oil Pressure Switch Connector End View (C103)

G07843338

Courtesy of FORD MOTOR CO.

Fig 7: Engine Oil Temperature (EOT) Sensor Connector End View (C104)

G07843339

Courtesy of FORD MOTOR CO.

Fig 8: A/C Clutch Relay Connector End View (C105)

G07843340

Courtesy of FORD MOTOR CO.

Fig 9: Knock Sensor Connector End View (C108)

G07843341

Courtesy of FORD MOTOR CO.

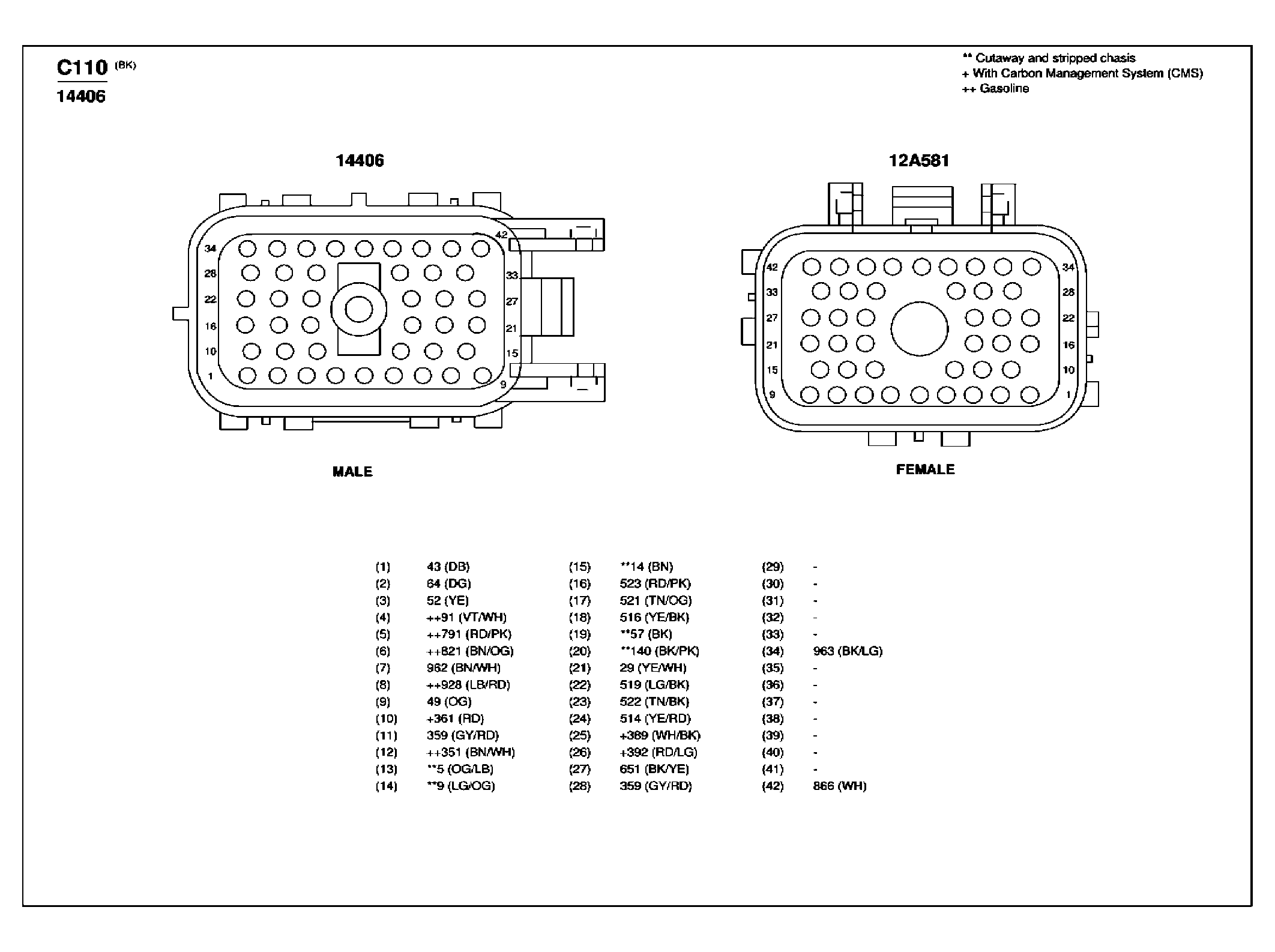

Fig 10: Inline Connector End View (C110)

G03993058

Courtesy of FORD MOTOR CO.

Fig 11: Coil On Plug (COP) 1 Connector End View (C111)

G07843342

Courtesy of FORD MOTOR CO.

Fig 12: Coil On Plug (COP) 2 Connector End View (C112)

G07843343

Courtesy of FORD MOTOR CO.

Fig 13: Coil On Plug (COP) 3 Connector End View (C113)

G07843344

Courtesy of FORD MOTOR CO.

Fig 14: Coil On Plug (COP) 4 Connector End View (C114)

G07843345

Courtesy of FORD MOTOR CO.

Fig 15: Coil On Plug (COP) 5 Connector End View (C115)

G07843346

Courtesy of FORD MOTOR CO.

Fig 16: Coil On Plug (COP) 6 Connector End View (C116)

G07843347

Courtesy of FORD MOTOR CO.

Fig 17: Coil On Plug (COP) 7 Connector End View (C117)

G07843348

Courtesy of FORD MOTOR CO.

Fig 18: Coil On Plug (COP) 8 Connector End View (C118)

G07843349

Courtesy of FORD MOTOR CO.

Fig 19: Trailer Tow Relay, Right Turn Connector End View (C119)

G07843350

Courtesy of FORD MOTOR CO.

Fig 20: Trailer Tow Relay, Left Turn Connector End View (C120)

G07843351

Courtesy of FORD MOTOR CO.

Fig 21: Reversing Lamp Relay Connector End View (C121)

G07843352

Courtesy of FORD MOTOR CO.

Fig 22: EVAP Canister Purge Valve Connector End View (C123)

G07843353

Courtesy of FORD MOTOR CO.

Fig 23: Brake Fluid Level Switch Connector End View (C124)

G07843354

Courtesy of FORD MOTOR CO.

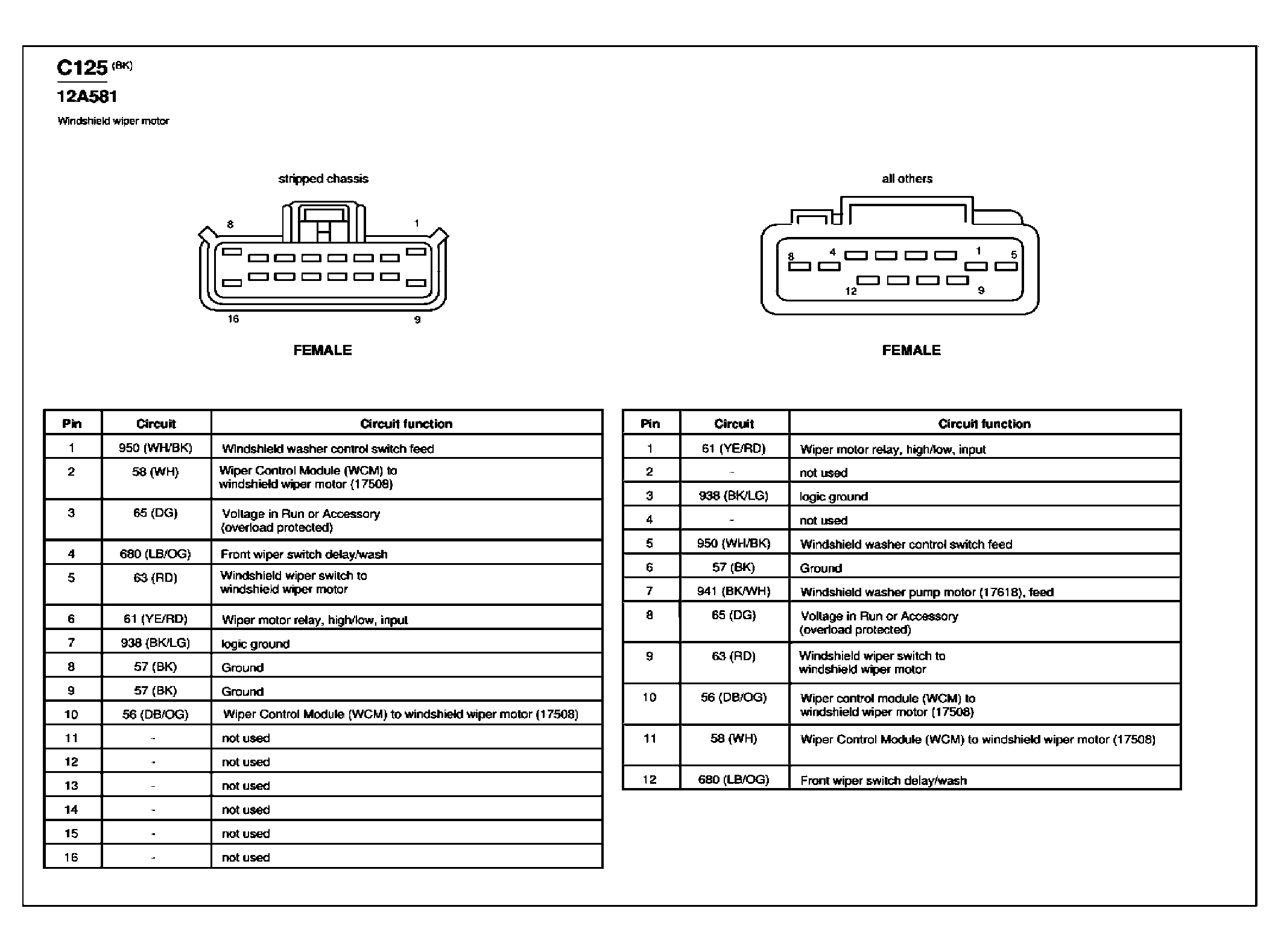

Fig 24: Windshield Wiper Motor Connector End View (C125)

G03993062

Courtesy of FORD MOTOR CO.

Fig 25: ABS Test Connector End View (C126)

G07848294

Courtesy of FORD MOTOR CO.

Fig 26: Inline Connector End View (C127)

G07843355

Courtesy of FORD MOTOR CO.

Fig 27: Mass Air Flow (MAF) Sensor Connector End View (C128)

G07843356

Courtesy of FORD MOTOR CO.

Fig 28: A/C Clutch Cycling Pressure Switch Connector End View (C130)

G07843357

Courtesy of FORD MOTOR CO.

Fig 29: Inline Connector End View (C131)

G07843358

Courtesy of FORD MOTOR CO.

Fig 30: Ambient Air Temperature Sensor Connector End View (C132)

G07843359

Courtesy of FORD MOTOR CO.

Fig 31: Inline Connector End View (C133)

G07843360

Courtesy of FORD MOTOR CO.

Fig 32: Inline Connector End View (C134)

G07843361

Courtesy of FORD MOTOR CO.

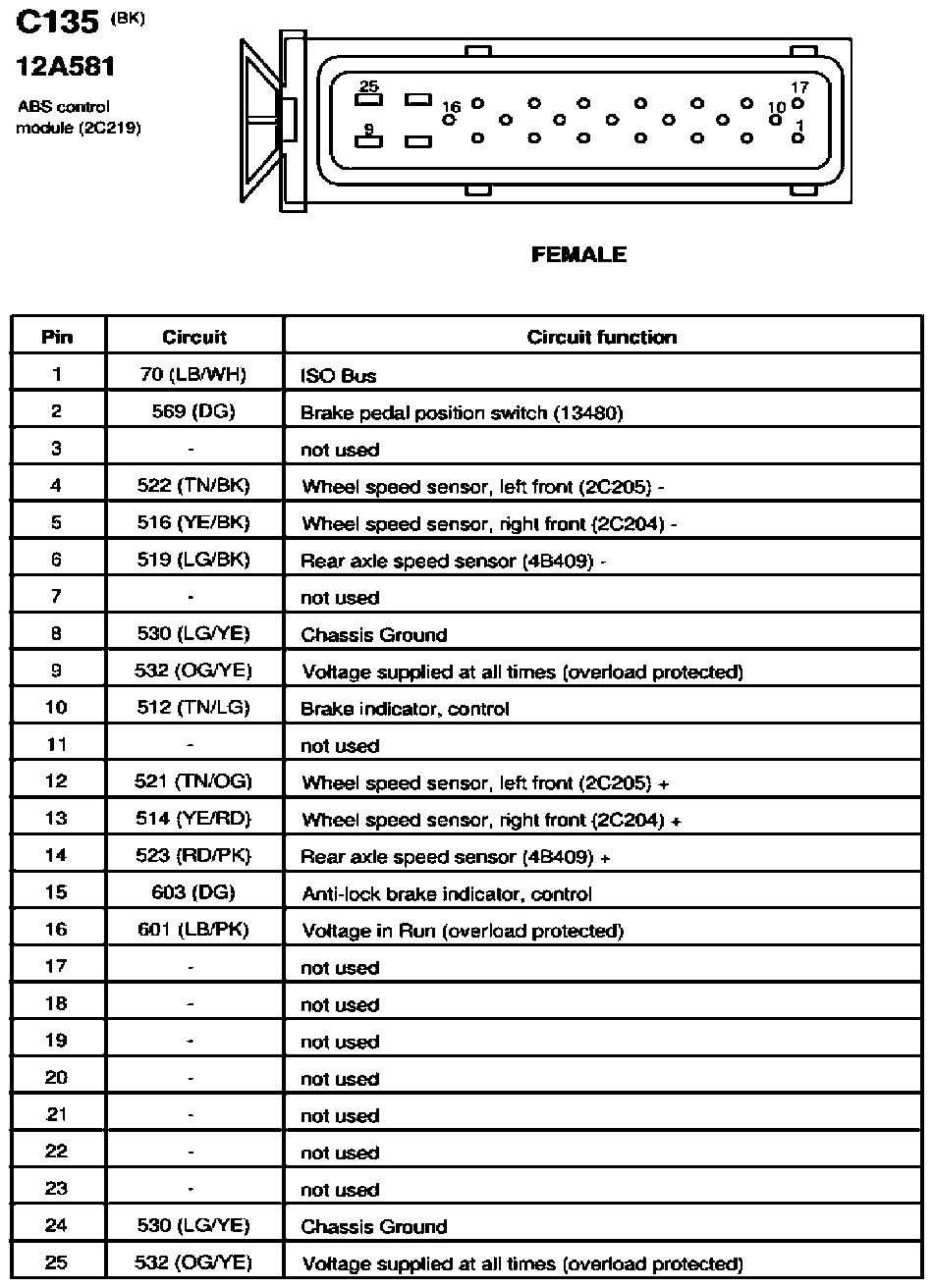

Fig 33: ABS Control Module Connector End View (C135)

G07843362

Courtesy of FORD MOTOR CO.

Fig 34: Injector Pressure Sensor Connector End View (C136)

G07843363

Courtesy of FORD MOTOR CO.

Fig 35: Windshield Washer Pump Motor Connector End View (C137)

G07843364

Courtesy of FORD MOTOR CO.

Fig 36: Heated Positive Crankcase Ventilation (PCV) Element Connector End View (C138)

G07843365

Courtesy of FORD MOTOR CO.

Fig 37: Inline Connector End View (C139)

G07843366

Courtesy of FORD MOTOR CO.

Fig 38: Inline Connector End View (C140)

G07843367

Courtesy of FORD MOTOR CO.

Fig 39: Heated Oxygen Sensor (HO2S) #22 Connector End View (C141)

G07843368

Courtesy of FORD MOTOR CO.

Fig 40: Heated Oxygen Sensor (HO2S) #12 Connector End View (C142)

G07843369

Courtesy of FORD MOTOR CO.

Fig 41: Turbine Shaft Speed (TSS) Sensor Connector End View (C143)

G07843370

Courtesy of FORD MOTOR CO.

Fig 42: Inline Connector End View (C144)

G07843371

Courtesy of FORD MOTOR CO.

Fig 43: Inline Connector End View (C145)

G07843372

Courtesy of FORD MOTOR CO.

Fig 44: Inline Connector End View (C146)

G03993069

Courtesy of FORD MOTOR CO.

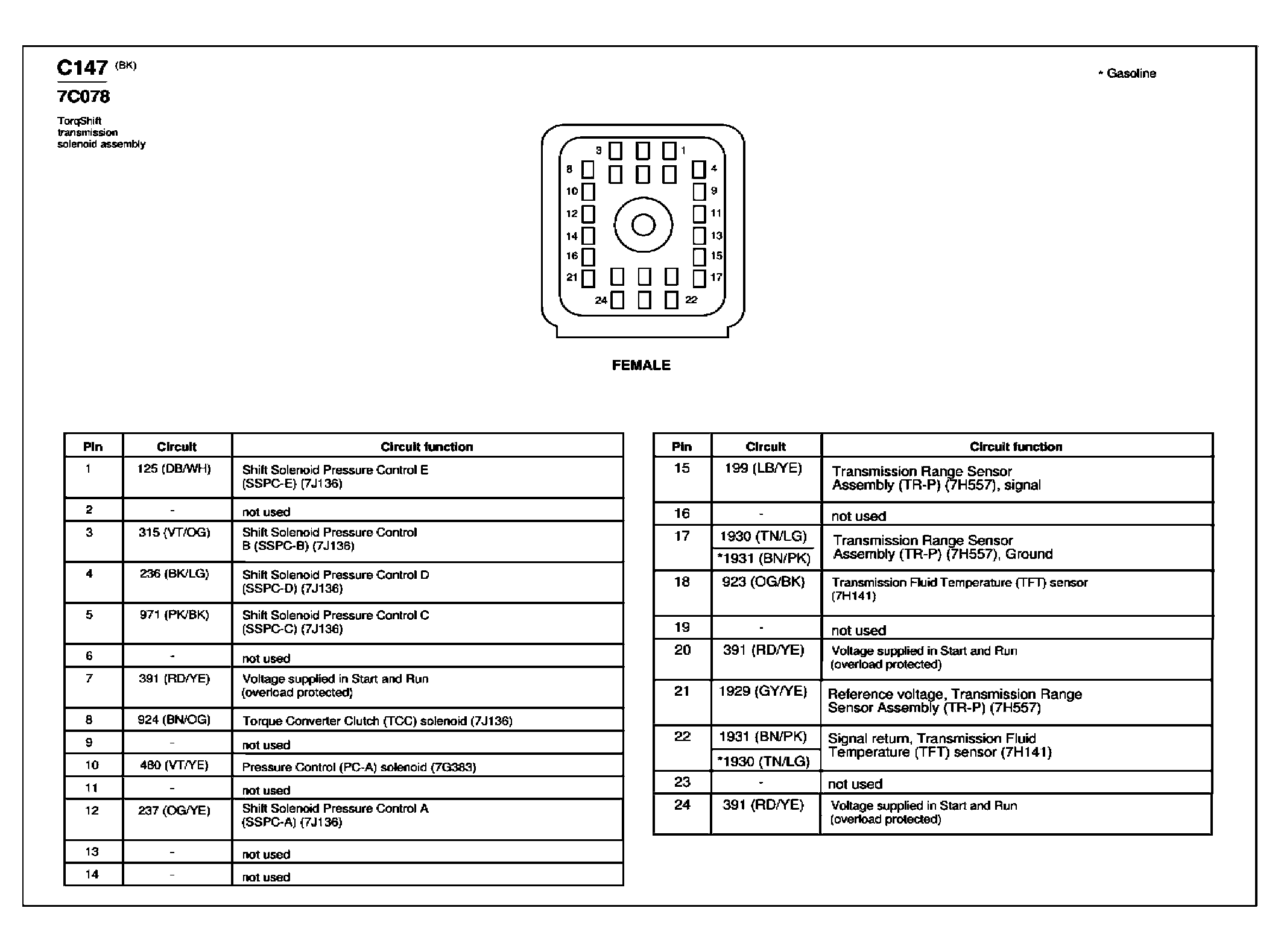

Fig 45: TorqShift Transmission Solenoid Assembly Connector End View (C147)

G03993070

Courtesy of FORD MOTOR CO.

Fig 46: Output Shaft Speed (OSS) Sensor Connector End View (C148)

G07843373

Courtesy of FORD MOTOR CO.

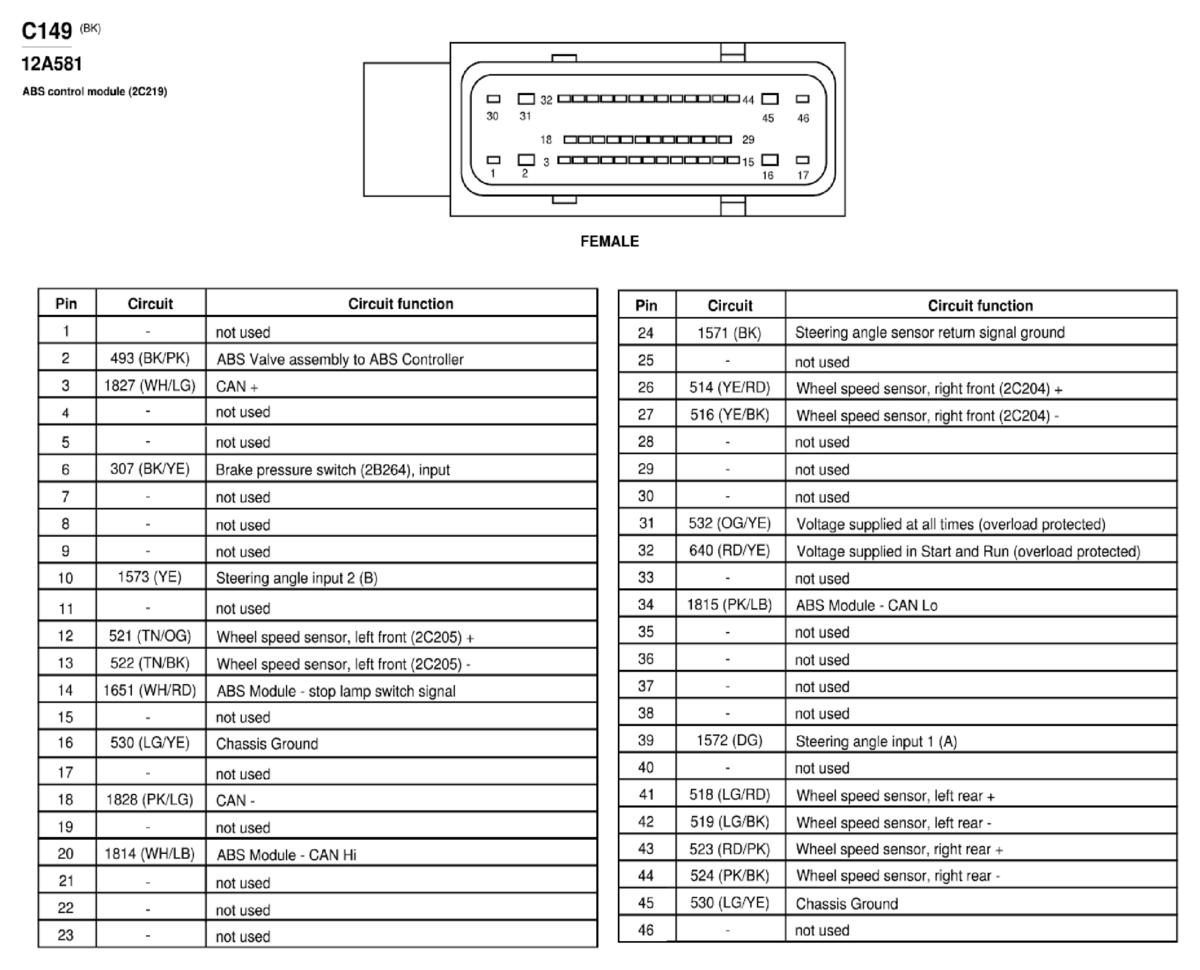

Fig 47: ABS Control Module Connector End View (C149)

G04619463

Courtesy of FORD MOTOR CO.

Fig 48: Wheel Speed Sensor, Left Front Connector End View (C150)

G07843374

Courtesy of FORD MOTOR CO.

Fig 49: Speed Sensor Assembly Connector End View (C152)

G07843375

Courtesy of FORD MOTOR CO.

Fig 50: Wheel Speed Sensor, Right Front Connector End View (C160)

G07843376

Courtesy of FORD MOTOR CO.

Fig 51: Digital Transmission Range (DTR) Sensor Connector End View (C167)

G07843377

Courtesy of FORD MOTOR CO.

Fig 52: Heated Oxygen Sensor (HO2S) #11 Connector End View (C171)

G07843378

Courtesy of FORD MOTOR CO.

Fig 53: Heated Oxygen Sensor (HO2S) #21 Connector End View (C172)

G07843379

Courtesy of FORD MOTOR CO.

Fig 54: Ignition Transformer Capacitor 1 Connector End View (C174)

G07843380

Courtesy of FORD MOTOR CO.

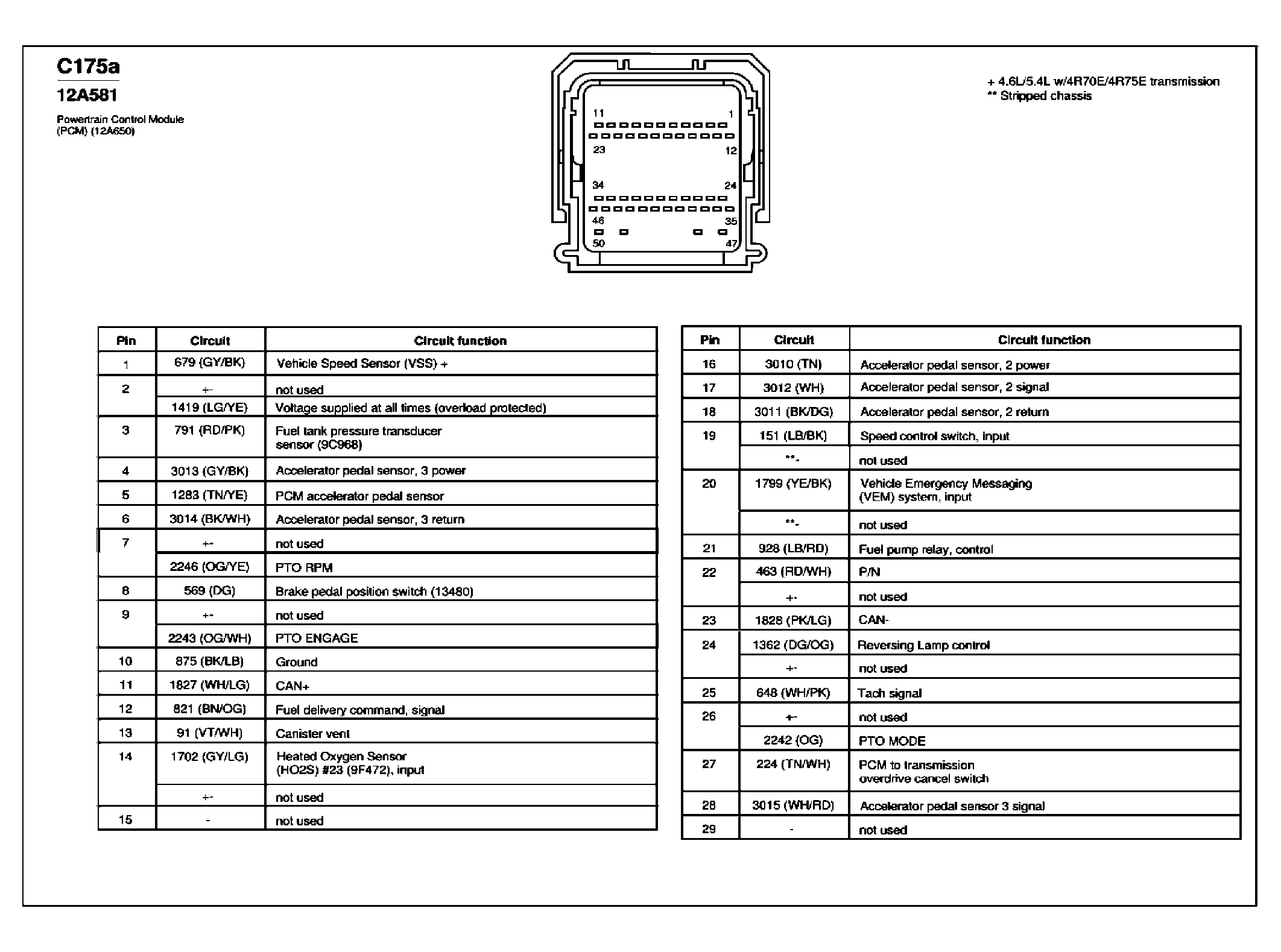

Fig 55: Powertrain Control Module (PCM) Connector End View (C175a) (1 Of 2)

G03993074

Courtesy of FORD MOTOR CO.

Fig 56: Powertrain Control Module (PCM) Connector End View (C175a) (2 Of 2)

G03993075

Courtesy of FORD MOTOR CO.

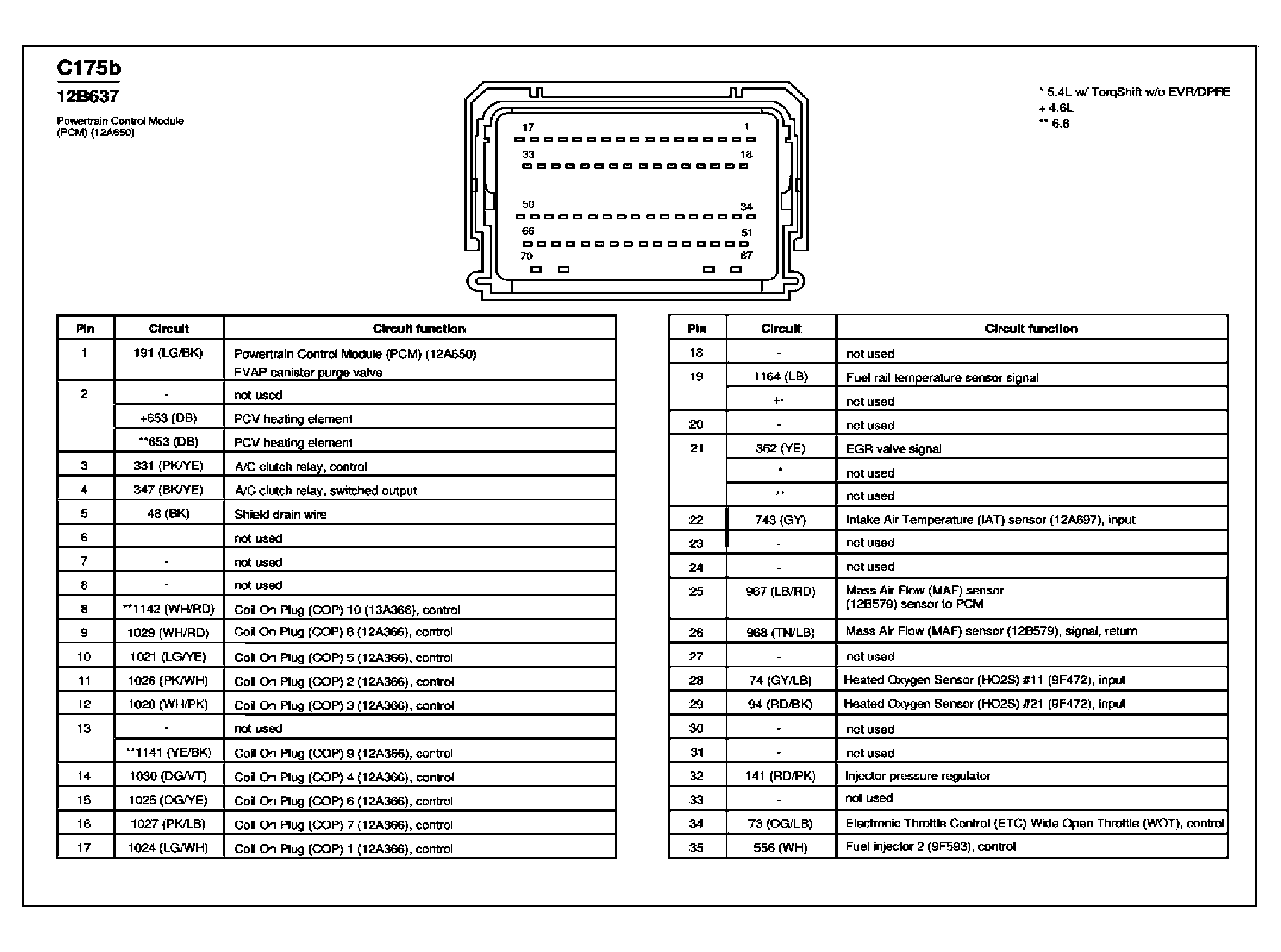

Fig 57: Powertrain Control Module (PCM) Connector End View (C175b) (1 Of 2)

G03993076

Courtesy of FORD MOTOR CO.

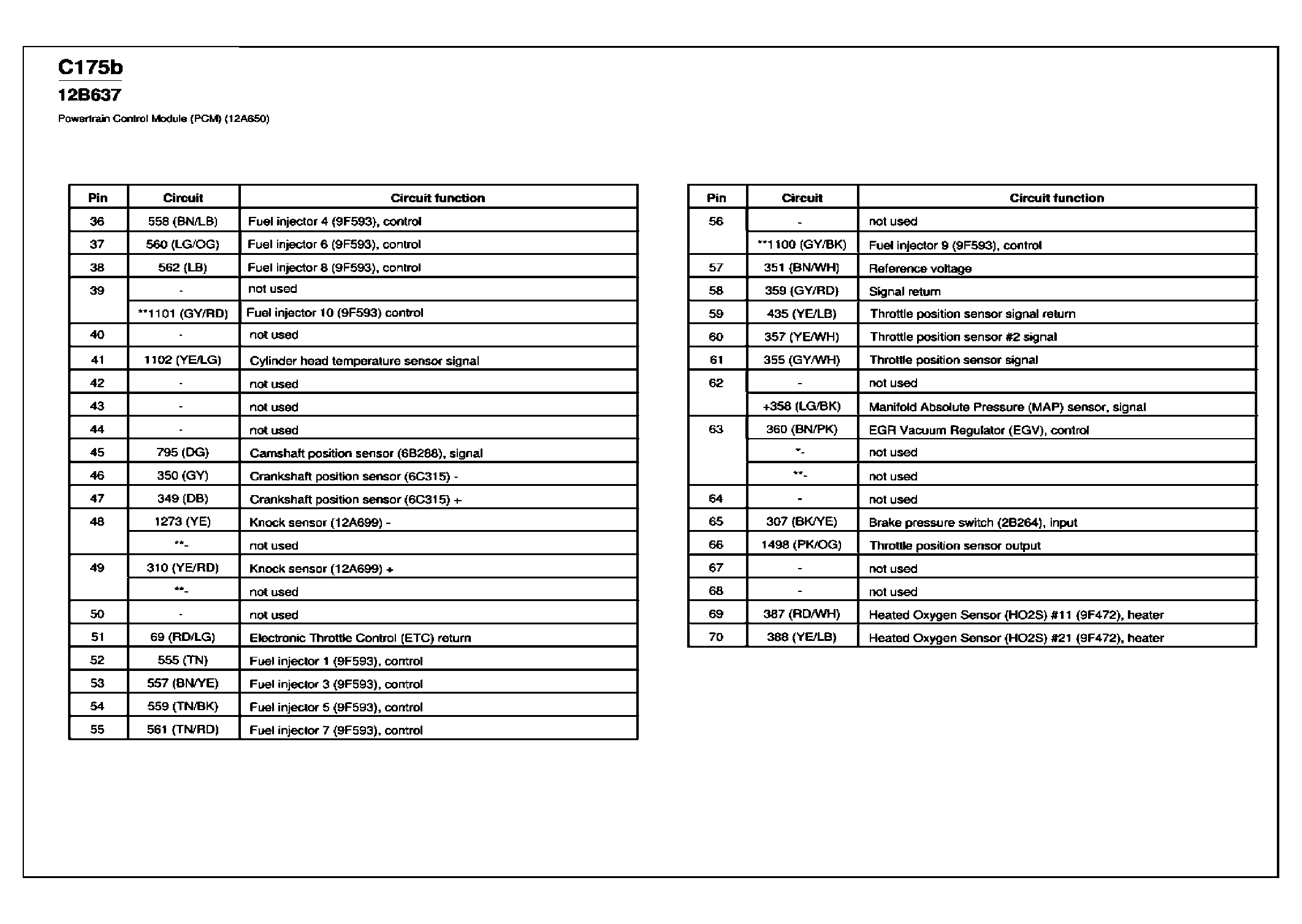

Fig 58: Powertrain Control Module (PCM) Connector End View (C175b) (2 Of 2)

G03993077

Courtesy of FORD MOTOR CO.

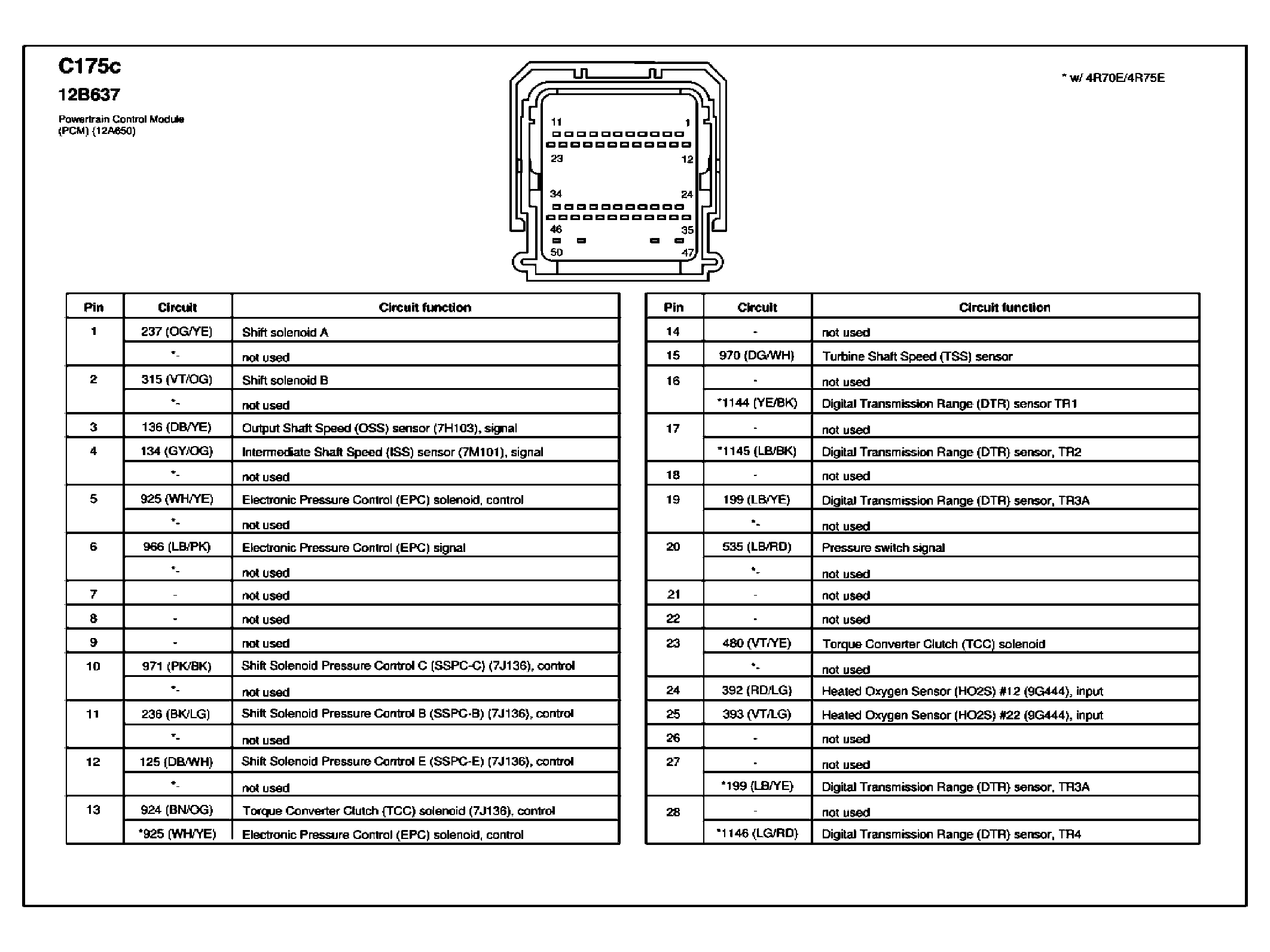

Fig 59: Powertrain Control Module (PCM) Connector End View (C175c) (1 Of 2)

G03993078

Courtesy of FORD MOTOR CO.

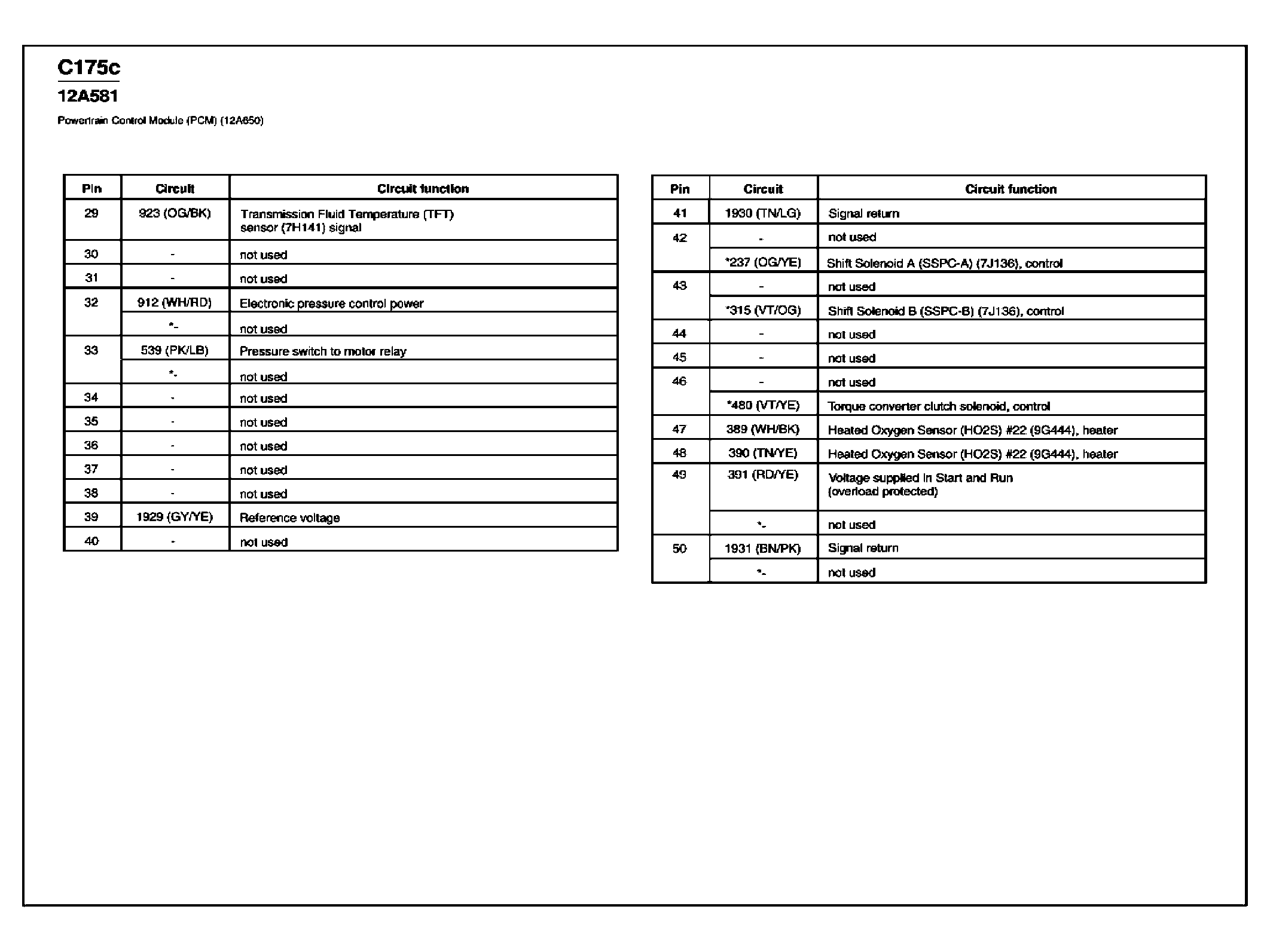

Fig 60: Powertrain Control Module (PCM) Connector End View (C175c) (2 Of 2)

G03993079

Courtesy of FORD MOTOR CO.

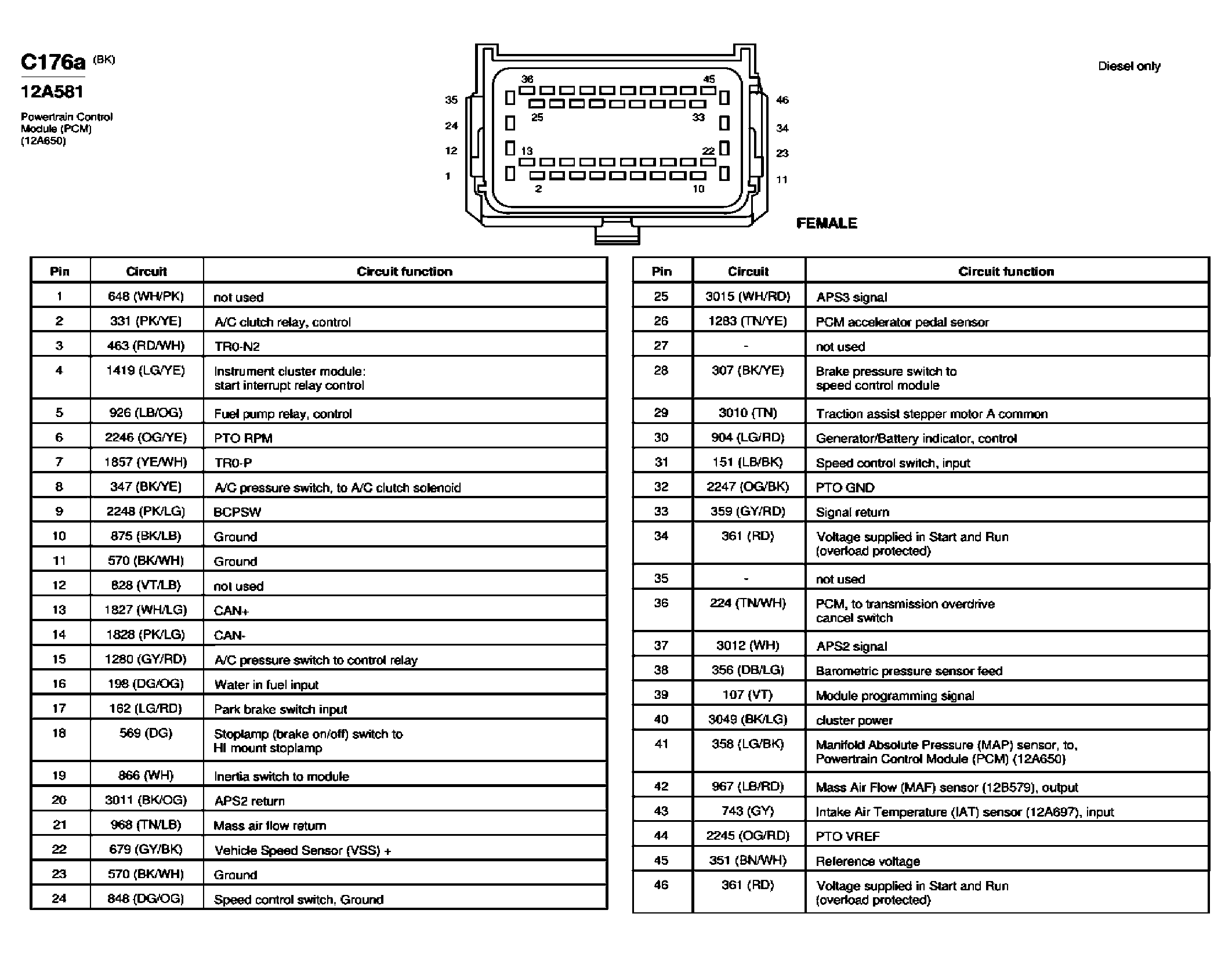

Fig 61: Powertrain Control Module (PCM) Connector End View (C176a)

G03993080

Courtesy of FORD MOTOR CO.

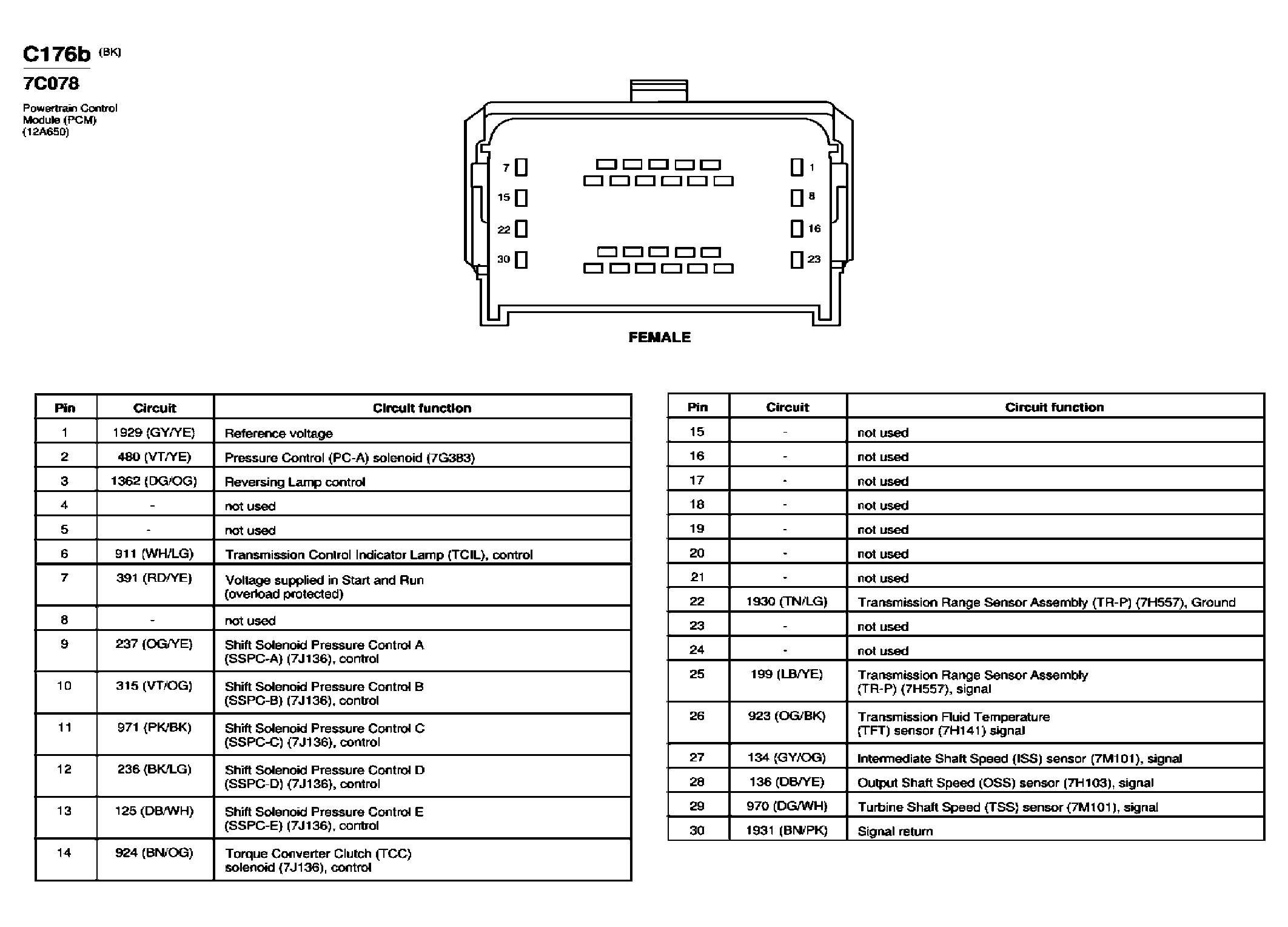

Fig 62: Powertrain Control Module (PCM) Connector End View (C176b)

G03993081

Courtesy of FORD MOTOR CO.

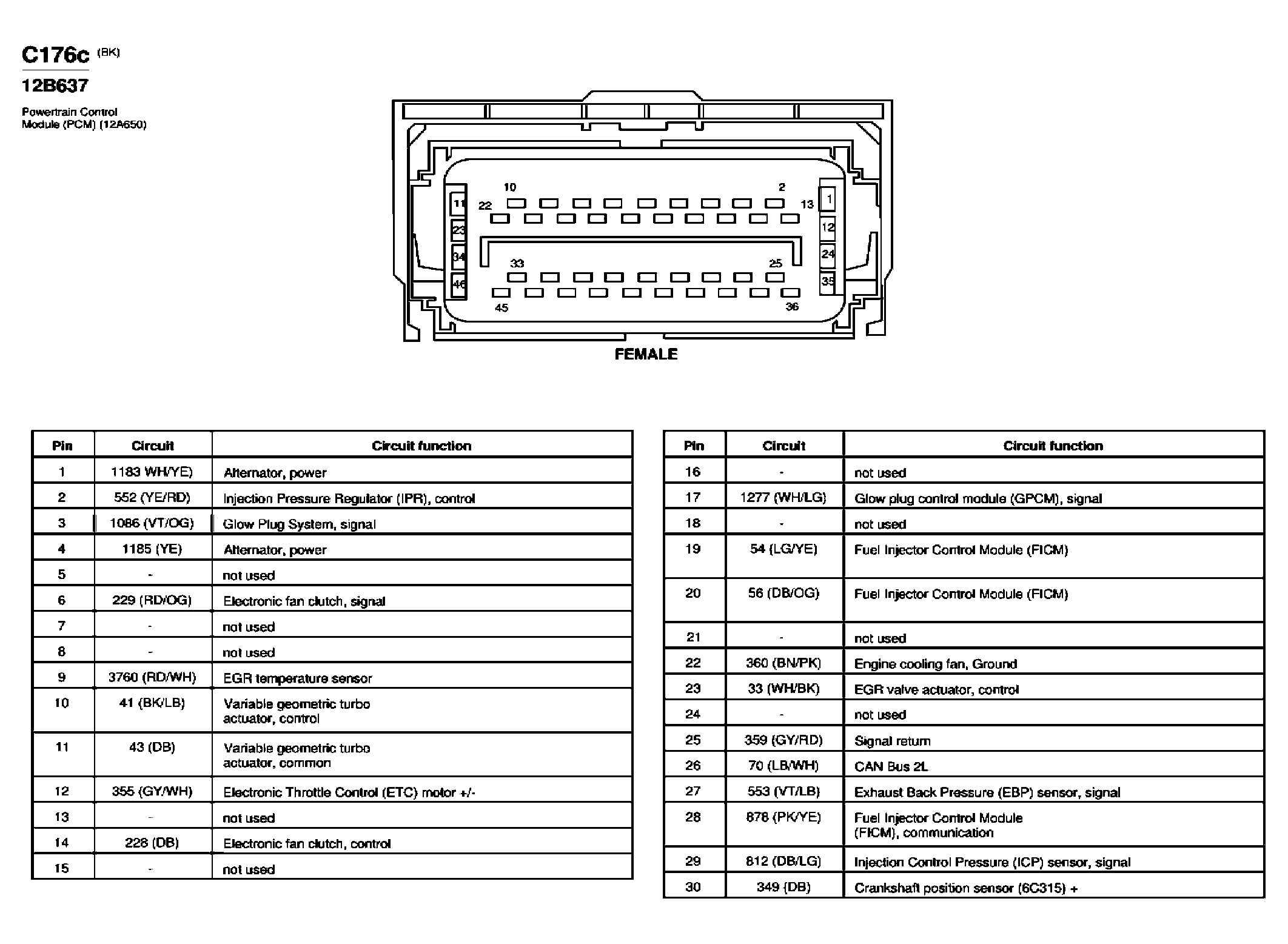

Fig 63: Powertrain Control Module (PCM) Connector End View (C176c) (1 Of 2)

G03993082

Courtesy of FORD MOTOR CO.

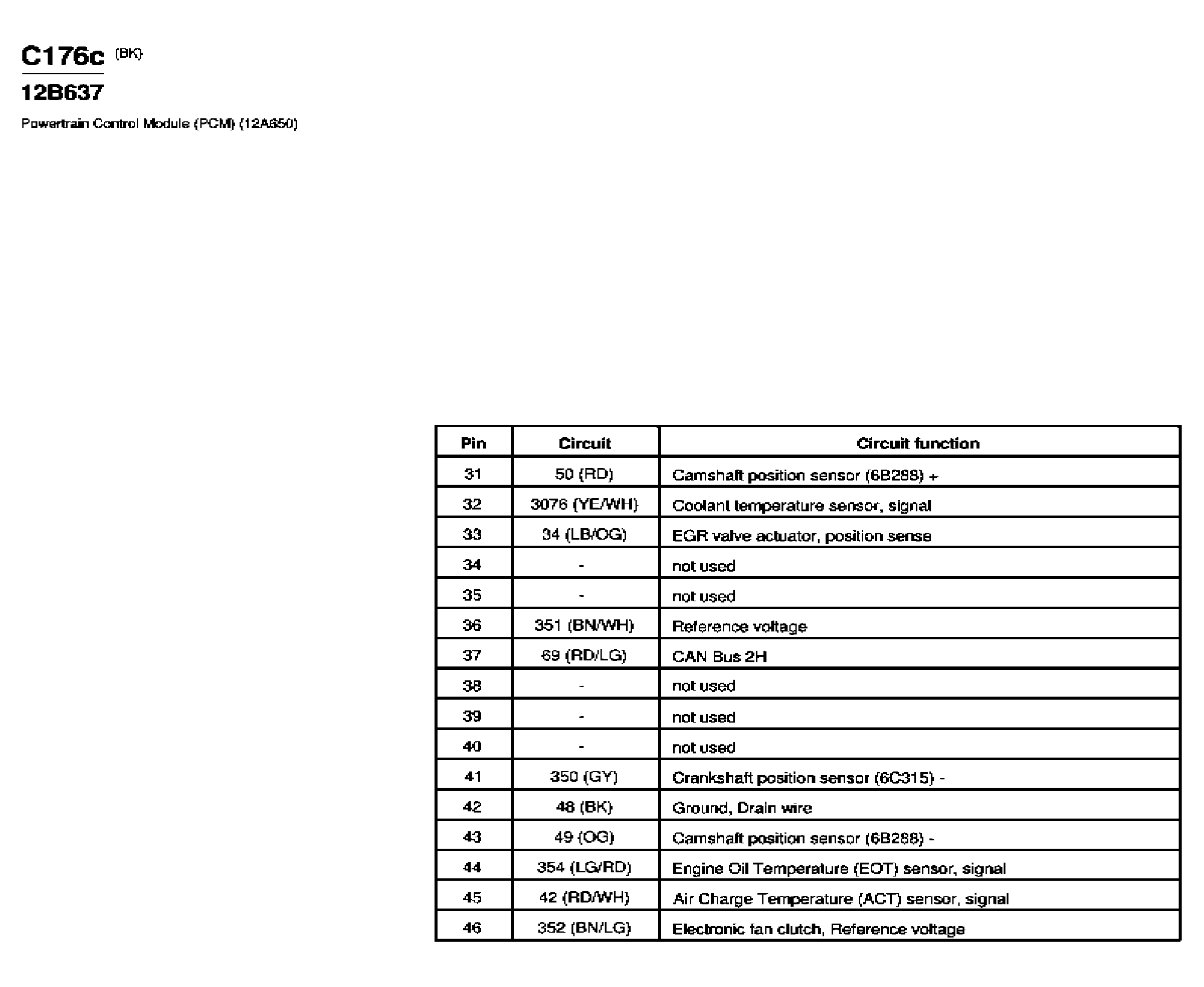

Fig 64: Powertrain Control Module (PCM) Connector End View (C176c) (2 Of 2)

G03993083

Courtesy of FORD MOTOR CO.

Fig 65: Center Air Bag Sensor Connector End View (C177)

G07843381

Courtesy of FORD MOTOR CO.

Fig 66: Camshaft Position Sensor Connector End View (C180)

G07843382

Courtesy of FORD MOTOR CO.

Fig 67: Fuel Injector 1 Connector End View (C181)

G07843383

Courtesy of FORD MOTOR CO.

Fig 68: Fuel Injector 2 Connector End View (C182)

G07843384

Courtesy of FORD MOTOR CO.

Fig 69: Fuel Injector 3 Connector End View (C183)

G07843385

Courtesy of FORD MOTOR CO.

Fig 70: Fuel Injector 4 Connector End View (C184)

G07843386

Courtesy of FORD MOTOR CO.

Fig 71: Fuel Injector 5 Connector End View (C185)

G07843387

Courtesy of FORD MOTOR CO.

Fig 72: Fuel Injector 6 Connector End View (C186)

G07843388

Courtesy of FORD MOTOR CO.

Fig 73: Fuel Injector 7 Connector End View (C187)

G07843389

Courtesy of FORD MOTOR CO.

Fig 74: Fuel Injector 8 Connector End View (C188)

G07843390

Courtesy of FORD MOTOR CO.

Fig 75: Throttle Position Sensor (TPS) Connector End View (C189)

G07843391

Courtesy of FORD MOTOR CO.

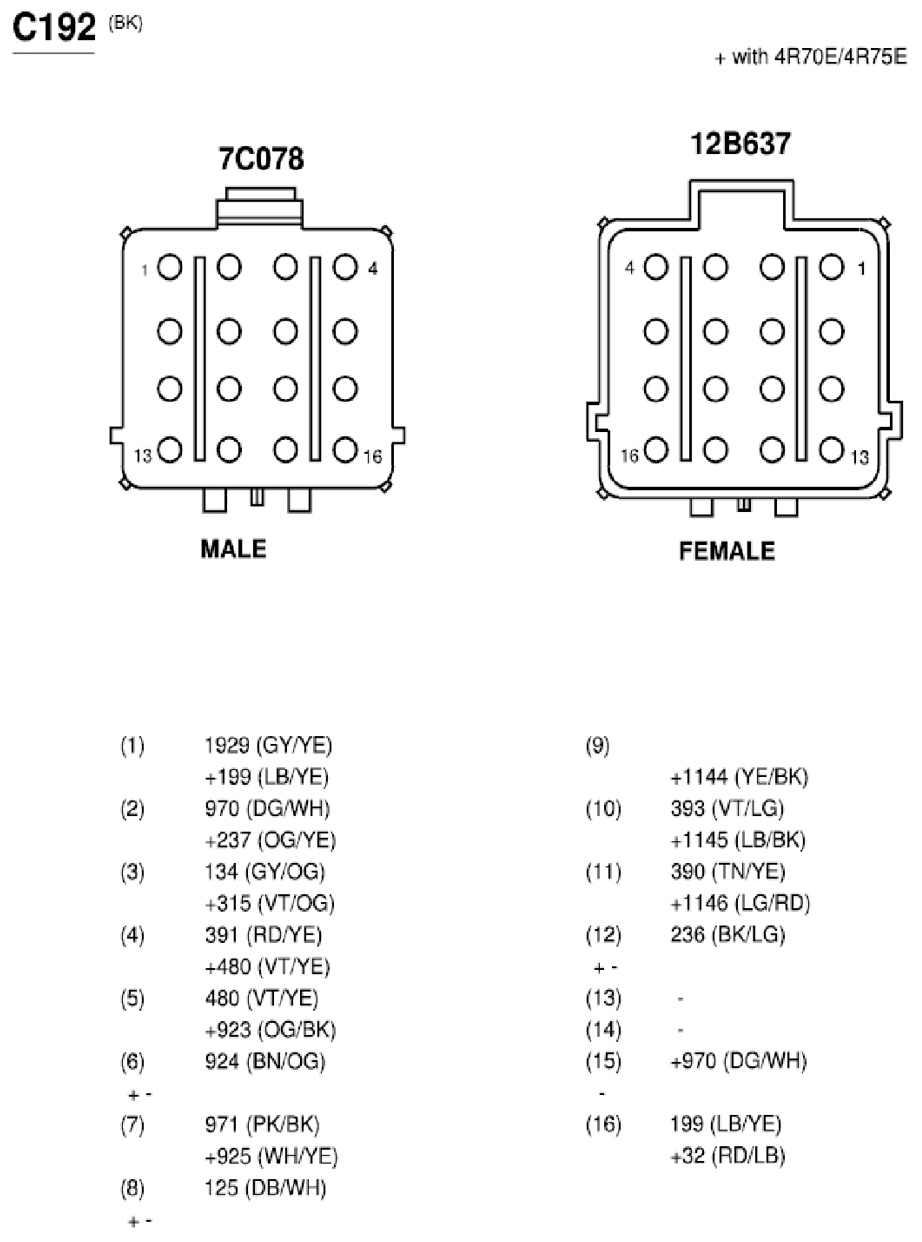

Fig 76: Inline Connector End View (C192)

G07848332

Courtesy of FORD MOTOR CO.

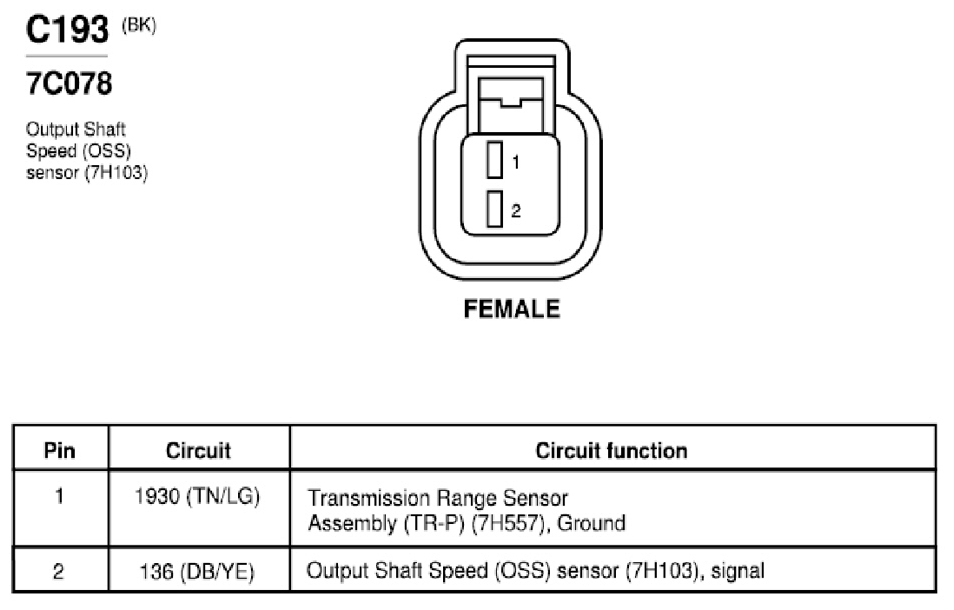

Fig 77: Output Shaft Speed (OSS) Sensor Connector End View (C193)

G07848333

Courtesy of FORD MOTOR CO.

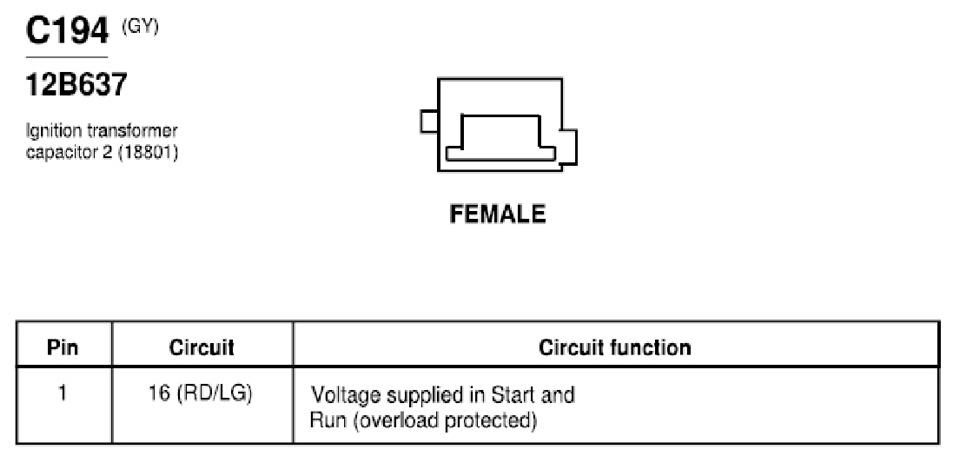

Fig 78: Ignition Transformer Capacitor Connector End View (C194)

G07848334

Courtesy of FORD MOTOR CO.

Fig 79: Inline Connector End View (C195)

G07843395

Courtesy of FORD MOTOR CO.

Fig 80: Starter Motor Connector End View (C197a)

G07843396

Courtesy of FORD MOTOR CO.

Fig 81: Inline Connector End View (C197b)

G07843397

Courtesy of FORD MOTOR CO.

Fig 82: Multifunction Switch Connector End View (C202a)

G07843398

Courtesy of FORD MOTOR CO.

Fig 83: Multifunction Switch Connector End View (C202b)

G07843399

Courtesy of FORD MOTOR CO.

Fig 84: Multifunction Switch Connector End View (C202c)

G07843400

Courtesy of FORD MOTOR CO.

Fig 85: Vehicle Security Module (VSM) Connector End View (C203a)

G07843401

Courtesy of FORD MOTOR CO.

Fig 86: Vehicle Security Module (VSM) Connector End View (C203b)

G07843402

Courtesy of FORD MOTOR CO.

Fig 87: Main Light Switch Connector End View (C205)

G07843403

Courtesy of FORD MOTOR CO.

Fig 88: Inline Connector End View (C210)

G07843404

Courtesy of FORD MOTOR CO.

Fig 89: Inline Connector End View (C211)

G07843405

Courtesy of FORD MOTOR CO.

Fig 90: Inline Connector End View (C212)

G07843406

Courtesy of FORD MOTOR CO.

Fig 91: Inline Connector End View (C213)

G07843407

Courtesy of FORD MOTOR CO.

Fig 92: Air Bag Sliding Contact Connector End View (C218a)

G07843408

Courtesy of FORD MOTOR CO.

Fig 93: Air Bag Sliding Contact Connector End View (C218b)

G07843409

Courtesy of FORD MOTOR CO.

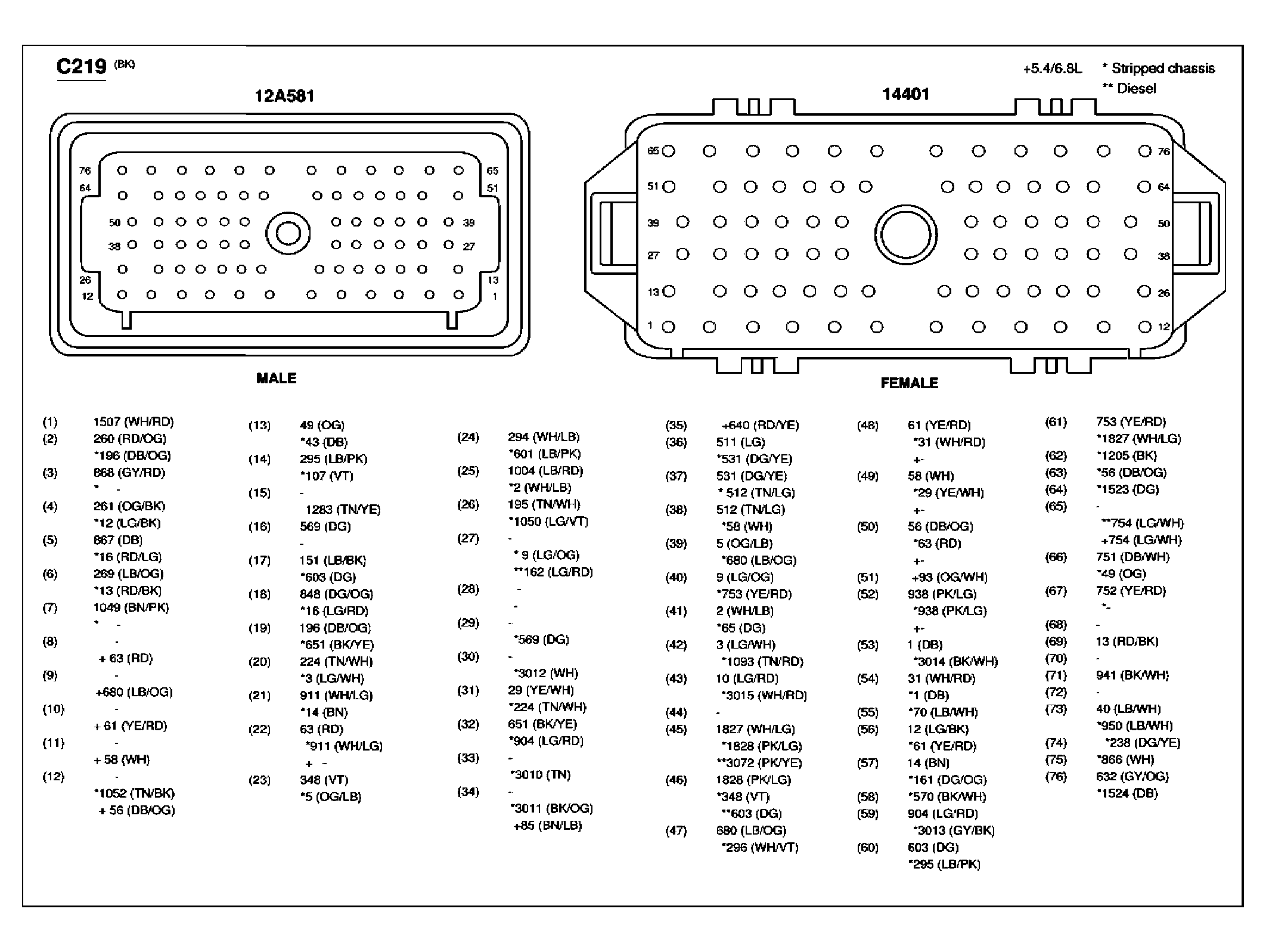

Fig 94: Inline Connector End View (C219)

G03993093

Courtesy of FORD MOTOR CO.

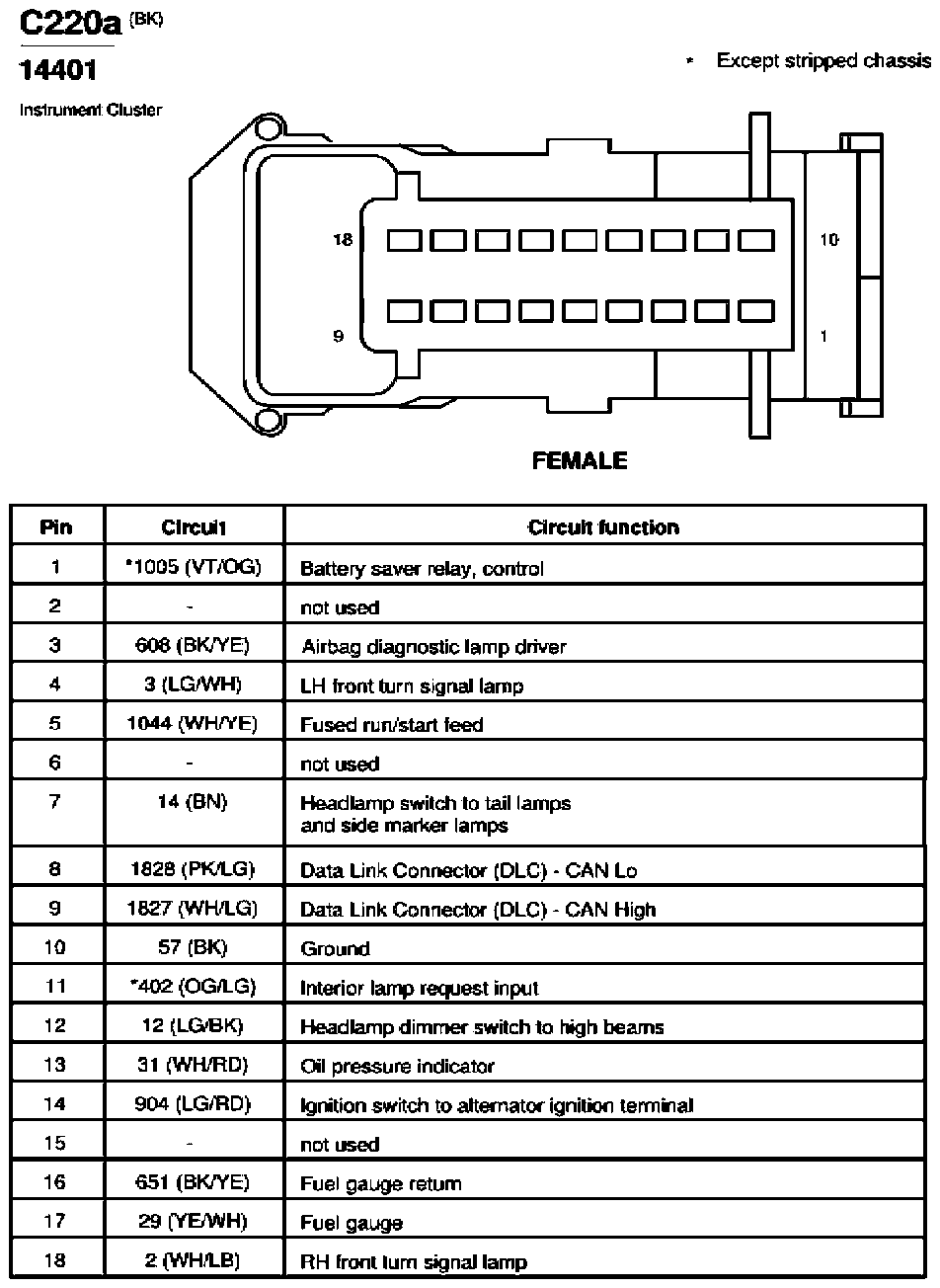

Fig 95: Instrument Cluster Connector End View (C220a)

G03993094

Courtesy of FORD MOTOR CO.

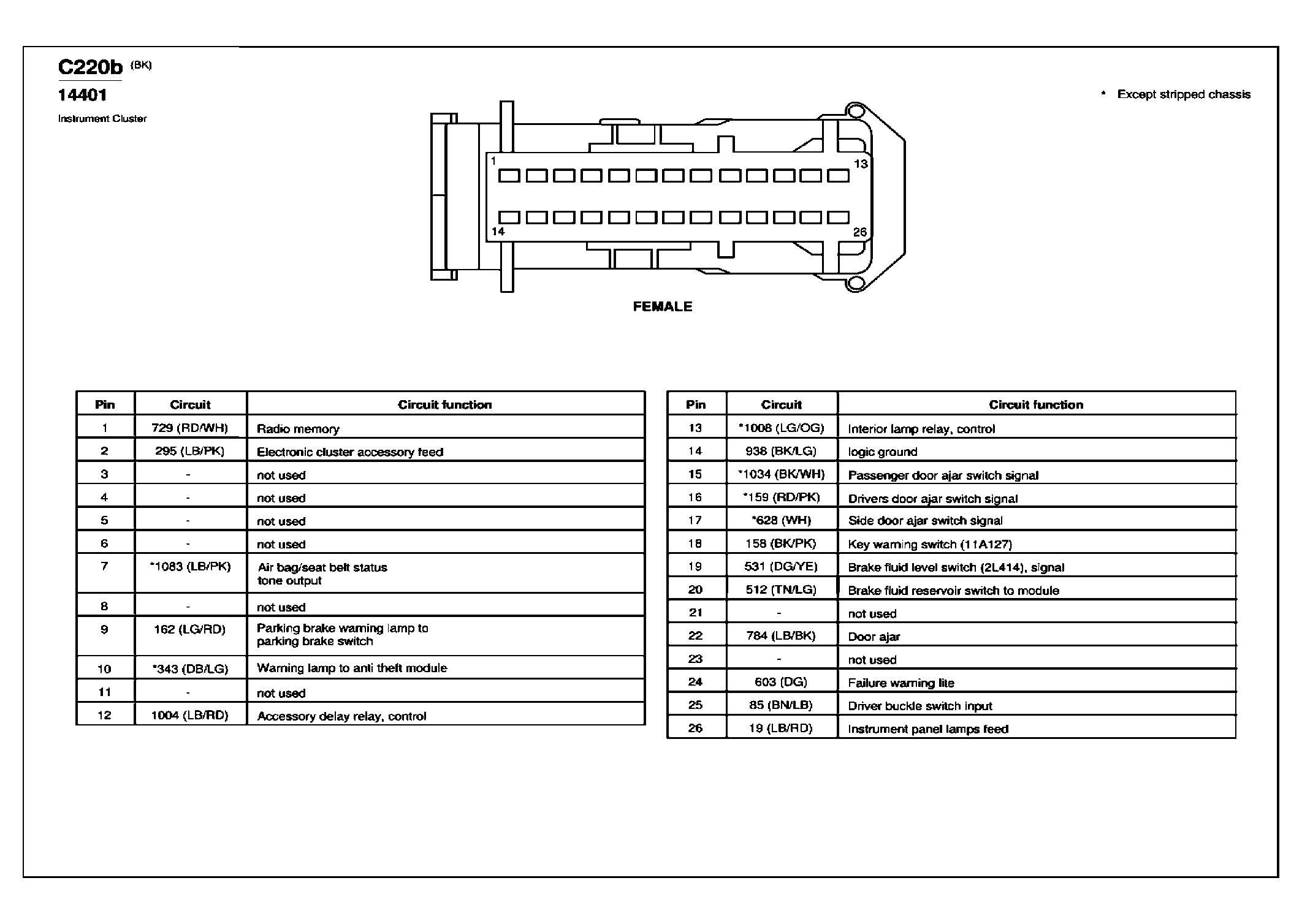

Fig 96: Instrument Cluster Connector End View (C220b)

G03993095

Courtesy of FORD MOTOR CO.

Fig 97: Interior Lamp Relay Connector End View (C221)

G07843410

Courtesy of FORD MOTOR CO.

Fig 98: Battery Saver Relay Connector End View (C222)

G07843411

Courtesy of FORD MOTOR CO.

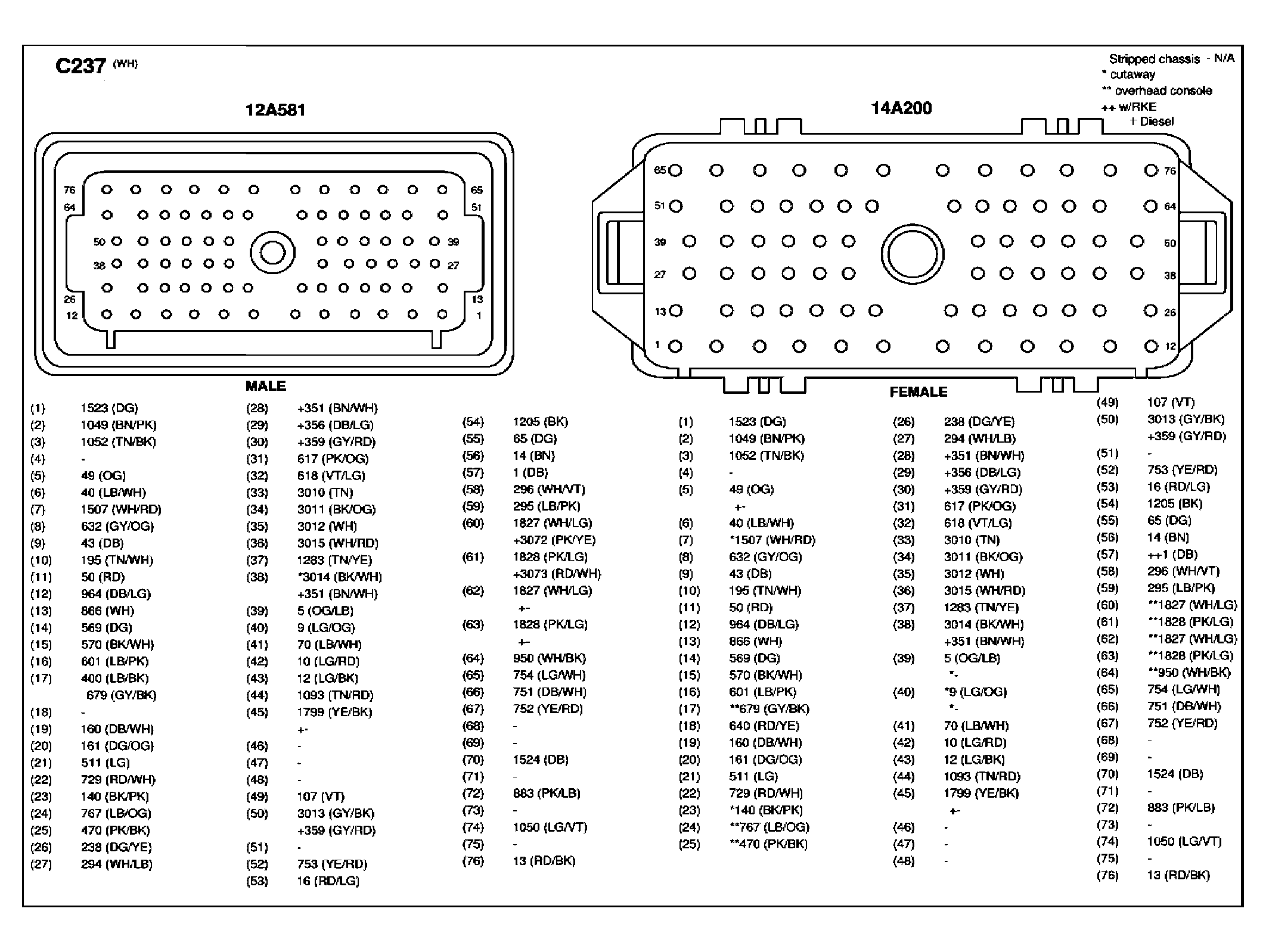

Fig 99: Inline Connector End View (C237)

G03993097

Courtesy of FORD MOTOR CO.

Fig 100: Inline Connector End View (C238)

G07843412

Courtesy of FORD MOTOR CO.

Fig 101: Trailer Control Electronic Brake Connector End View (C248)

G07843413

Courtesy of FORD MOTOR CO.

Fig 102: Ignition Switch Connector End View (C250)

G07843414

Courtesy of FORD MOTOR CO.

Fig 103: Data Link Connector (DLC) Connector End View (C251)

G07843415

Courtesy of FORD MOTOR CO.

Fig 104: Passenger Air Bag Module Connector End View (C256)

G07843416

Courtesy of FORD MOTOR CO.

Fig 105: Brake Pedal Position (BPP) Switch Connector End View (C278)

G07843417

Courtesy of FORD MOTOR CO.

Fig 106: Inertia Fuel Shutoff (IFS) Switch Connector End View (C282)

G07843418

Courtesy of FORD MOTOR CO.

Fig 107: Temperature Blend Door Actuator Connector End View (C289)

G07843419

Courtesy of FORD MOTOR CO.

Fig 108: Inline Connector End View (C291)

G07843420

Courtesy of FORD MOTOR CO.

Fig 109: Function Selector Switch Assembly, Front Connector End View (C294a)

G07843421

Courtesy of FORD MOTOR CO.

Fig 110: Function Selector Switch Assembly, Front Connector End View (C294b)

G07843422

Courtesy of FORD MOTOR CO.

Fig 111: Function Selector Switch Assembly, Front Connector End View (C294c)

G07843423

Courtesy of FORD MOTOR CO.

Fig 112: Function Selector Switch Assembly, Front Connector End View (C294d)

G07843424

Courtesy of FORD MOTOR CO.

Fig 113: Function Selector Switch Assembly, Front Connector End View (C294e)

G07843425

Courtesy of FORD MOTOR CO.

Fig 114: To I/P Body Builder Connector End View (C298)

G07843426

Courtesy of FORD MOTOR CO.

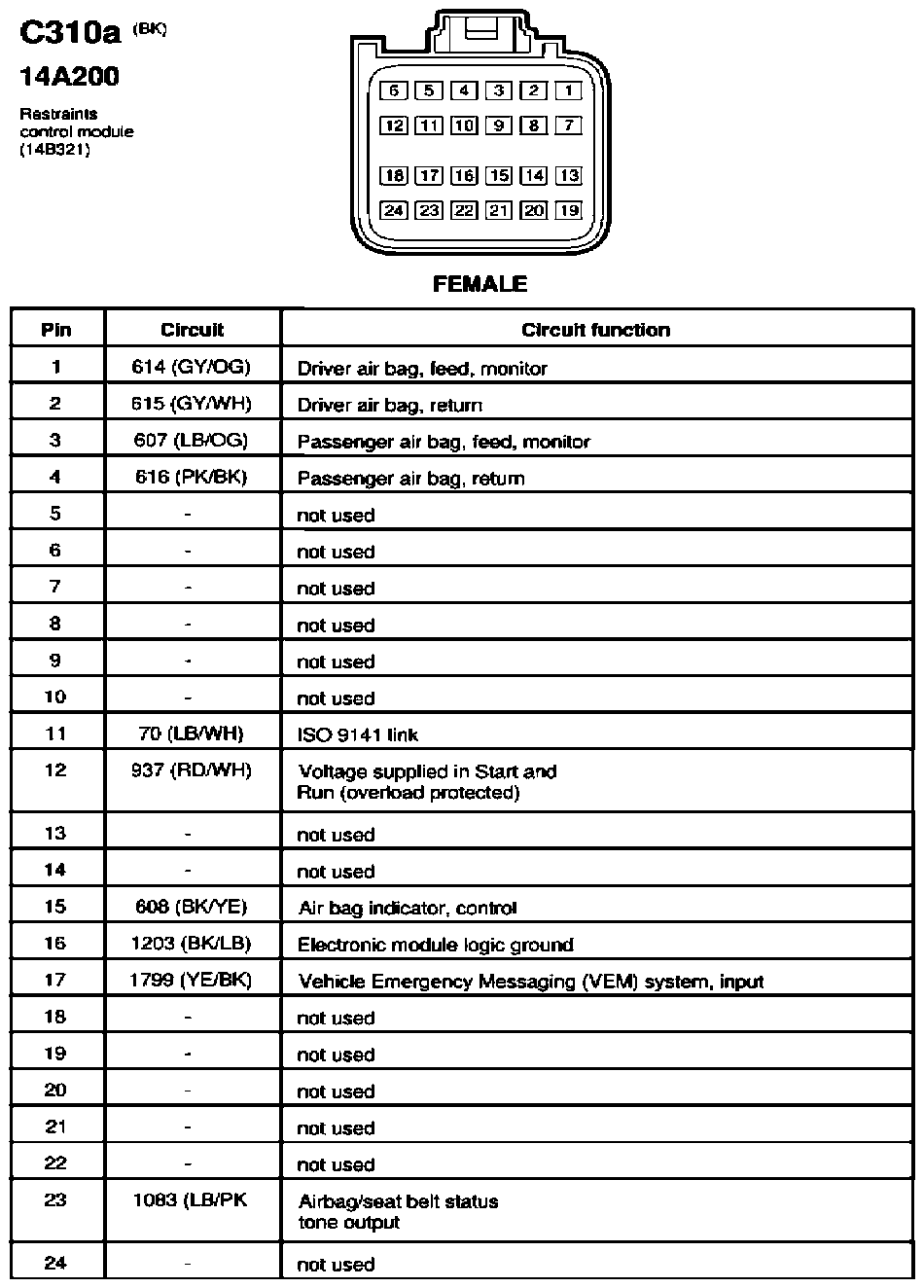

Fig 115: Restraints Control Module Connector End View (C310a)

G03993103

Courtesy of FORD MOTOR CO.

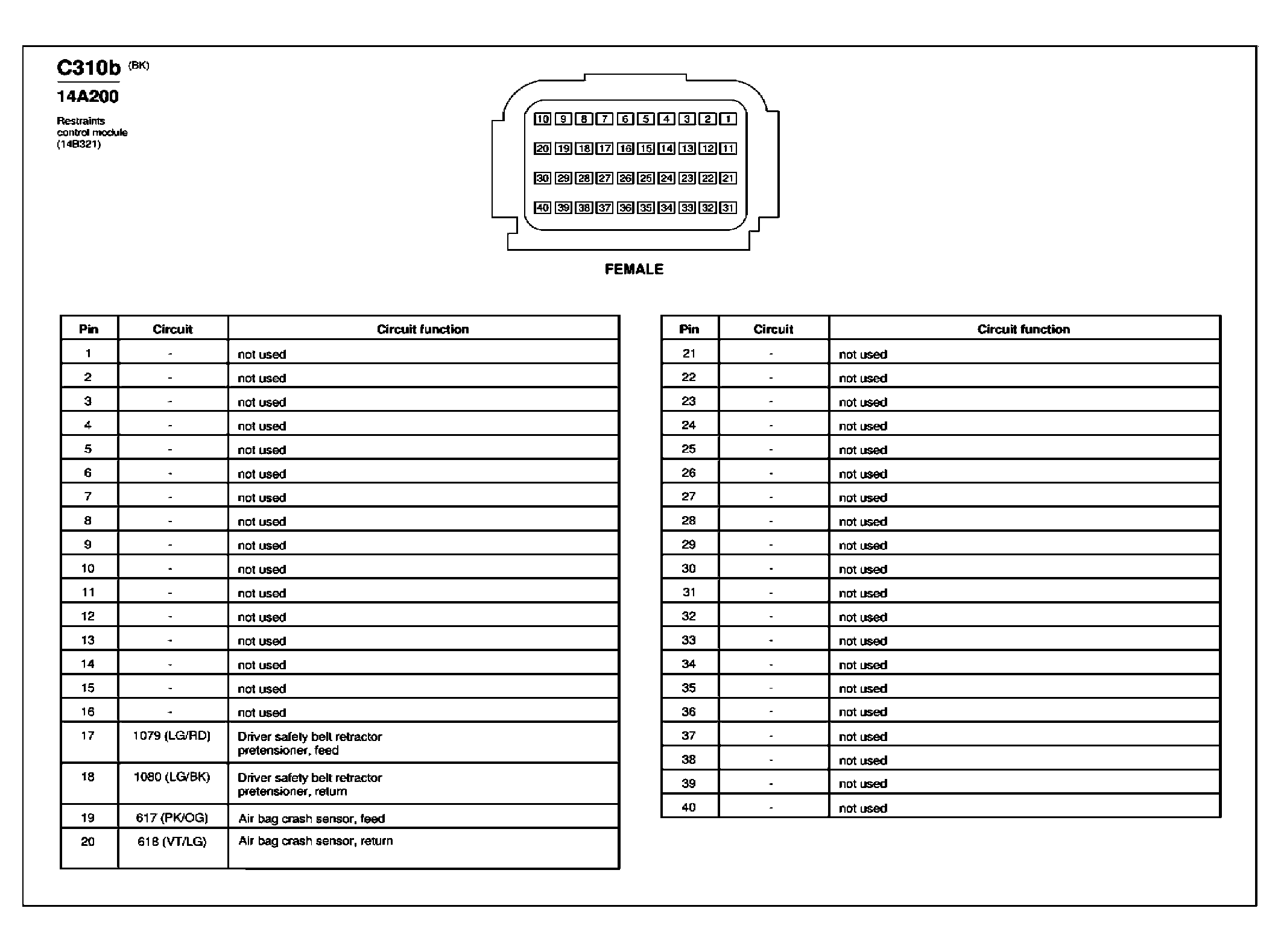

Fig 116: Restraints Control Module Connector End View (C310b)

G03993104

Courtesy of FORD MOTOR CO.

Fig 117: Inline Connector End View (C311)

G07843427

Courtesy of FORD MOTOR CO.

Fig 118: Inline Connector End View (C312)

G07843428

Courtesy of FORD MOTOR CO.

Fig 119: Inline Connector End View (C313)

G07843429

Courtesy of FORD MOTOR CO.

Fig 120: Inline Connector End View (C314)

G07843430

Courtesy of FORD MOTOR CO.

Fig 121: Inline Connector End View (C315)

G07843431

Courtesy of FORD MOTOR CO.

Fig 122: Inline Connector End View (C316)

G07843432

Courtesy of FORD MOTOR CO.

Fig 123: Inline Connector End View (C328)

G07843433

Courtesy of FORD MOTOR CO.

Fig 124: To Modified Vehicle Connector End View (C329)

G07843434

Courtesy of FORD MOTOR CO.

Fig 125: Inline Connector End View (C353)

G07843435

Courtesy of FORD MOTOR CO.

Fig 126: Seat Adjust Switch, Driver Side Front Connector End View (C360)

G07843436

Courtesy of FORD MOTOR CO.

Fig 127: Driver Seat Horizontal Motor Connector End View (C362)

G07843437

Courtesy of FORD MOTOR CO.

Fig 128: Driver Seat Rear Height Motor Connector End View (C363)

G07843438

Courtesy of FORD MOTOR CO.

Fig 129: Power Point Connector End View (C380)

G07843439

Courtesy of FORD MOTOR CO.

Fig 130: Driver Seat Front Height Motor Connector End View (C382)

G07843440

Courtesy of FORD MOTOR CO.

Fig 131: Sliding Door Ajar Switch, Right Connector End View (C398)

G07843441

Courtesy of FORD MOTOR CO.

Fig 132: Inline Connector End View (C405)

G07843442

Courtesy of FORD MOTOR CO.

Fig 133: Inline Connector End View (C406)

G07843443

Courtesy of FORD MOTOR CO.

Fig 134: Inline Connector End View (C408)

G07843444

Courtesy of FORD MOTOR CO.

Fig 135: Inline Connector End View (C411)

G07843445

Courtesy of FORD MOTOR CO.

Fig 136: Lamp Assembly, Left Rear Connector End View (C414)

G07843446

Courtesy of FORD MOTOR CO.

Fig 137: Lamp Assembly, Right Rear Connector End View (C417)

G07843447

Courtesy of FORD MOTOR CO.

Fig 138: Inline Connector End View (C420)

G07843448

Courtesy of FORD MOTOR CO.

Fig 139: Inline Connector End View (C421)

G07843449

Courtesy of FORD MOTOR CO.

Fig 140: Inline Connector End View (C422)

G07843450

Courtesy of FORD MOTOR CO.

Fig 141: Inline Connector End View (C423)

G07843451

Courtesy of FORD MOTOR CO.

Fig 142: Inline Connector End View (C431)

G07843452

Courtesy of FORD MOTOR CO.

Fig 143: Heated Oxygen Sensor (HO2S) #23 Connector End View (C433)

G07843453

Courtesy of FORD MOTOR CO.

Fig 144: Evaporative Emission (EVAP) Canister Vent Valve Connector End View (C450)

G07843454

Courtesy of FORD MOTOR CO.

Fig 145: Reversing Lamp, Left Connector End View (C451)

G07843455

Courtesy of FORD MOTOR CO.

Fig 146: Rear Axle Speed Sensor Connector End View (C455)

G07843456

Courtesy of FORD MOTOR CO.

Fig 147: Reversing Lamp, Right Connector End View (C461)

G07843457

Courtesy of FORD MOTOR CO.

Fig 148: High Mounted Stoplamp Connector End View (C475)

G07843458

Courtesy of FORD MOTOR CO.

Fig 149: Speaker, Left Rear Connector End View (C484)

G07843459

Courtesy of FORD MOTOR CO.

Fig 150: Speaker, Right Rear Connector End View (C485)

G07843460

Courtesy of FORD MOTOR CO.

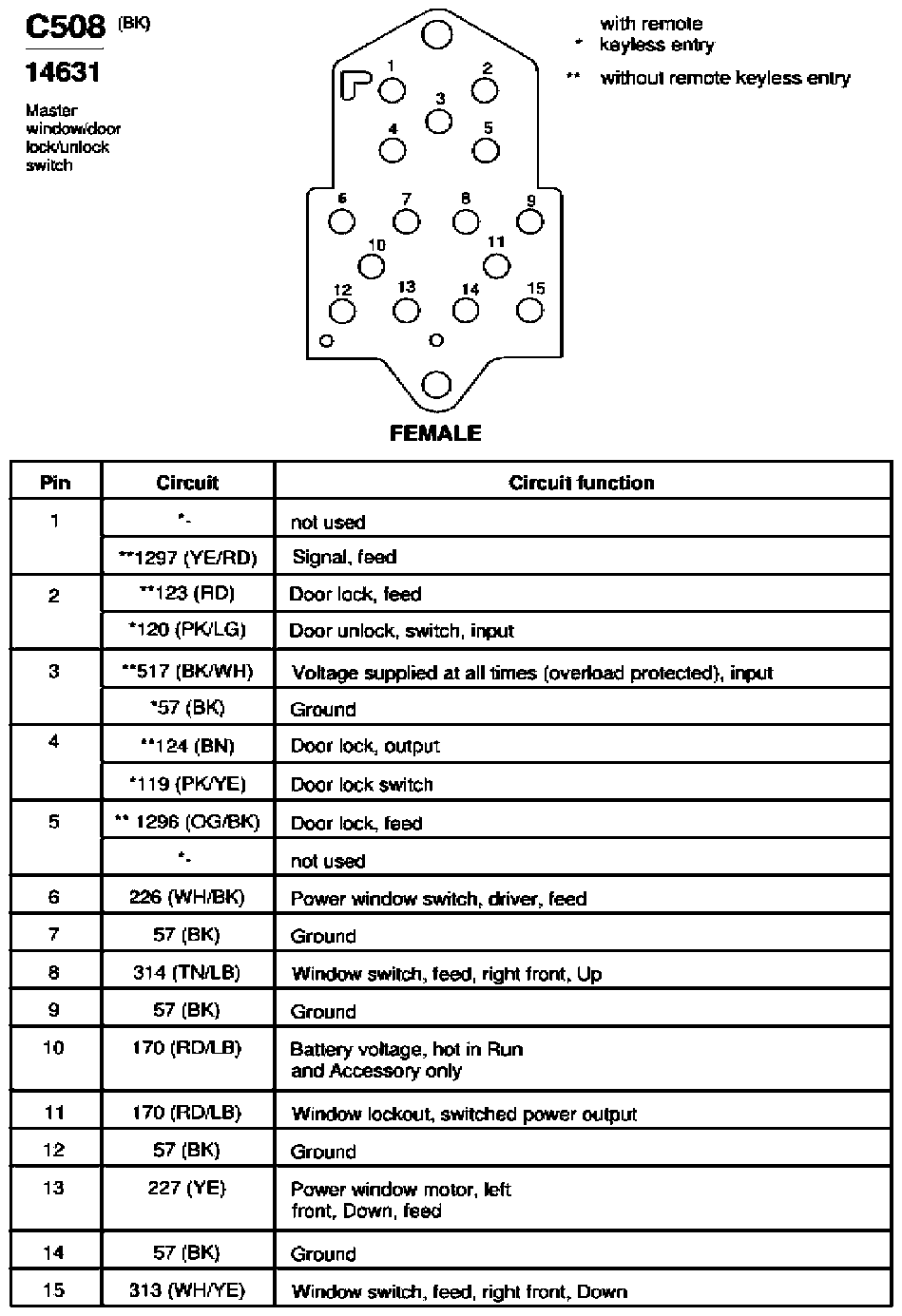

Fig 151: Master Window/Door Lock/unlock Switch Connector End View (C508)

G07843461

Courtesy of FORD MOTOR CO.

Fig 152: Exterior Rear View Mirror, Driver Side Connector End View (C521)

G07843462

Courtesy of FORD MOTOR CO.

Fig 153: Speaker, Left Front Connector End View (C523)

G07843463

Courtesy of FORD MOTOR CO.

Fig 154: Power Window Motor, Driver Side Front Connector End View (C524)

G07843464

Courtesy of FORD MOTOR CO.

Fig 155: Door Lock Actuator, Left Front Connector End View (C525)

G07843465

Courtesy of FORD MOTOR CO.

Fig 156: Exterior Rear View Mirror Switch Connector End View (C527)

G07843466

Courtesy of FORD MOTOR CO.

Fig 157: Exterior Rear View Mirror, Passenger Side Connector End View (C601)

G07843467

Courtesy of FORD MOTOR CO.

Fig 158: Door Lock Actuator, Right Front Connector End View (C603)

G07843468

Courtesy of FORD MOTOR CO.

Fig 159: Power Window Motor, Passenger Side Front Connector End View (C608)

G07843469

Courtesy of FORD MOTOR CO.

Fig 160: Speaker, Right Front Connector End View (C612)

G07843470

Courtesy of FORD MOTOR CO.

Fig 161: Front Passenger Window/Door Lock Switch Connector End View (C629)

G07843471

Courtesy of FORD MOTOR CO.

Fig 162: Sliding Door Contact Switch, Right Connector End View (C807)

G07843472

Courtesy of FORD MOTOR CO.

Fig 163: Speaker, Right Middle Connector End View (C813)

G07843473

Courtesy of FORD MOTOR CO.

Fig 164: Side Door Ajar Switch, Right Connector End View (C816)

G07843474

Courtesy of FORD MOTOR CO.

Fig 165: Side Door Lock Actuator, Right Connector End View (C817)

G07843475

Courtesy of FORD MOTOR CO.

Fig 166: Rear Interior Lamp Connector End View (C901)

G07843476

Courtesy of FORD MOTOR CO.

Fig 167: Vanity Mirror Lamp, Right Connector End View (C906)

G07843477

Courtesy of FORD MOTOR CO.

Fig 168: Vanity Mirror Lamp, Left Connector End View (C907)

G07843478

Courtesy of FORD MOTOR CO.

Fig 169: Inline Connector End View (C913)

G07843479

Courtesy of FORD MOTOR CO.

Fig 170: Inline Connector End View (C919)

G07843480

Courtesy of FORD MOTOR CO.

Fig 171: Inline Connector End View (C925)

G07843481

Courtesy of FORD MOTOR CO.

Fig 172: Cargo Lamp Connector End View (C926)

G07843482

Courtesy of FORD MOTOR CO.

Fig 173: Overhead Console Connector End View (C930)

G07843483

Courtesy of FORD MOTOR CO.

Fig 174: Interior/Map Lamps Assembly, Front Connector End View (C931)

G07843484

Courtesy of FORD MOTOR CO.

Fig 175: Inline Connector End View (C935)

G07843485

Courtesy of FORD MOTOR CO.

Fig 176: Inline Connector End View (C936)

G07843486

Courtesy of FORD MOTOR CO.

Fig 177: Interior Lamp Connector End View (C981)

G07843487

Courtesy of FORD MOTOR CO.

Fig 178: Starter Relay Connector End View (C1001)

G07843488

Courtesy of FORD MOTOR CO.

Fig 179: Accessory Delay Relay Connector End View (C1002)

G07843489

Courtesy of FORD MOTOR CO.

Fig 180: Horn Relay Connector End View (C1006)

G07843490

Courtesy of FORD MOTOR CO.

Fig 181: Inline Connector End View (C1010)

G07843491

Courtesy of FORD MOTOR CO.

Fig 182: Blower Motor Relay Connector End View (C1011)

G07843492

Courtesy of FORD MOTOR CO.

Fig 183: PCM Power Relay Connector End View (C1016)

G07843493

Courtesy of FORD MOTOR CO.

Fig 184: PCM Power Diode Connector End View (C1018)

G07843494

Courtesy of FORD MOTOR CO.

Fig 185: Inline Connector End View (C1019)

G07843495

Courtesy of FORD MOTOR CO.

Fig 186: Headlamp, Left Connector End View (C1021)

G07843496

Courtesy of FORD MOTOR CO.

Fig 187: Park/Turn Lamp, Left Front Connector End View (C1023)

G07843497

Courtesy of FORD MOTOR CO.

Fig 188: Brake Pressure Switch Connector End View (C1025)

G07843498

Courtesy of FORD MOTOR CO.

Fig 189: Inline Connector End View (C1026)

G07843499

Courtesy of FORD MOTOR CO.

Fig 190: Daytime Running Lamps (DRL) Module Connector End View (C1030)

G07843500

Courtesy of FORD MOTOR CO.

Fig 191: Inline Connector End View (C1033)

G07843501

Courtesy of FORD MOTOR CO.

Fig 192: Battery Junction Box (BJB) Connector End View (C1035a)

G07843502

Courtesy of FORD MOTOR CO.

Fig 193: Injection Pressure Sensor Connector End View (C1036)

G07843503

Courtesy of FORD MOTOR CO.

Fig 194: Headlamp, Right Connector End View (C1041)

G07843504

Courtesy of FORD MOTOR CO.

Fig 195: Park/Turn Lamp, Right Front Connector End View (C1043)

G07843505

Courtesy of FORD MOTOR CO.

Fig 196: Inline Connector End View (C1045)

G07843506

Courtesy of FORD MOTOR CO.

Fig 197: Inline Connector End View (C1046)

G07843507

Courtesy of FORD MOTOR CO.

Fig 198: Cylinder Head Temperature Sensor Connector End View (C1047)

G07843508

Courtesy of FORD MOTOR CO.

Fig 199: Fuel Pump Relay Connector End View (C1051)

G07843509

Courtesy of FORD MOTOR CO.

Fig 200: Dual Pressure Switch Connector End View (C1062)

G07843510

Courtesy of FORD MOTOR CO.

Fig 201: Engine Coolant Temperature (ECT) Sensor Connector End View (C1064)

G07843511

Courtesy of FORD MOTOR CO.

Fig 202: Differential Pressure Feedback EGR (DPFE) Sensor Connector End View (C1068)

G07843512

Courtesy of FORD MOTOR CO.

Fig 203: EGR Vacuum Regulator Solenoid Connector End View (C1072)

G07843513

Courtesy of FORD MOTOR CO.

Fig 204: Inline Connector End View (C1075)

G07843514

Courtesy of FORD MOTOR CO.

Fig 205: Fuel Heater Connector End View (C1076)

G07843515

Courtesy of FORD MOTOR CO.

Fig 206: A/C High Pressure Switch Connector End View (C1078)

G07843516

Courtesy of FORD MOTOR CO.

Fig 207: Electronic Throttle Control (ETC) Motor Connector End View (C1079)

G07843517

Courtesy of FORD MOTOR CO.

Fig 208: Water-In-Fuel Sensor Connector End View (C1080)

G07843518

Courtesy of FORD MOTOR CO.

Fig 209: Manifold Absolute Pressure (MAP) Sensor Connector End View (C1087)

G07843519

Courtesy of FORD MOTOR CO.

Fig 210: Battery Connector End View (C1100a)

G07843520

Courtesy of FORD MOTOR CO.

Fig 211: Battery Connector End View (C1100b)

G07843521

Courtesy of FORD MOTOR CO.

Fig 212: Electronic Fan Clutch Connector End View (C1158)

G07843522

Courtesy of FORD MOTOR CO.

Fig 213: Trailer Tow Relay, Reversing Lamp Connector End View (C1178)

G07843523

Courtesy of FORD MOTOR CO.

Fig 214: Fuel Injector 1 Connector End View (C1181)

G07843524

Courtesy of FORD MOTOR CO.

Fig 215: Fuel Injector 2 Connector End View (C1182)

G07843525

Courtesy of FORD MOTOR CO.

Fig 216: Fuel Injector 3 Connector End View (C1183)

G07843526

Courtesy of FORD MOTOR CO.

Fig 217: Fuel Injector 4 Connector End View (C1184)

G07843527

Courtesy of FORD MOTOR CO.

Fig 218: Fuel Injector 5 Connector End View (C1185)

G07843528

Courtesy of FORD MOTOR CO.

Fig 219: Fuel Injector 6 Connector End View (C1186)

G07843529

Courtesy of FORD MOTOR CO.

Fig 220: Fuel Injector 1 Connector End View (C1191)

G07843530

Courtesy of FORD MOTOR CO.

Fig 221: Fuel Injector 2 Connector End View (C1192)

G07843531

Courtesy of FORD MOTOR CO.

Fig 222: Fuel Injector 3 Connector End View (C1193)

G07843532

Courtesy of FORD MOTOR CO.

Fig 223: Fuel Injector 4 Connector End View (C1194)

G07843533

Courtesy of FORD MOTOR CO.

Fig 224: Fuel Injector 5 Connector End View (C1195)

G07843534

Courtesy of FORD MOTOR CO.

Fig 225: Fuel Injector 6 Connector End View (C1196)

G07843535

Courtesy of FORD MOTOR CO.

Fig 226: Fuel Injector 7 Connector End View (C1197)

G07843536

Courtesy of FORD MOTOR CO.

Fig 227: Fuel Injector 8 Connector End View (C1198)

G07843537

Courtesy of FORD MOTOR CO.

Fig 228: Trailer Tow Relay, Parking Lamp Connector End View (C1199)

G07843538

Courtesy of FORD MOTOR CO.

Fig 229: Trailer Tow Relay, Battery Charge Connector End View (C1200)

G07843539

Courtesy of FORD MOTOR CO.

Fig 230: Fuel Injector 9 Connector End View (C1204)

G07843540

Courtesy of FORD MOTOR CO.

Fig 231: Fuel Injector 10 Connector End View (C1205)

G07843541

Courtesy of FORD MOTOR CO.

Fig 232: Coil On Plug (COP) 9 Connector End View (C1206)

G07843542

Courtesy of FORD MOTOR CO.

Fig 233: Coil On Plug (COP) 10 Connector End View (C1207)

G07843543

Courtesy of FORD MOTOR CO.

Fig 234: Front Blower Motor Connector End View (C1227)

G07843544

Courtesy of FORD MOTOR CO.

Fig 235: Blower Motor Resistor Connector End View (C1228)

G07843545

Courtesy of FORD MOTOR CO.

Fig 236: Fuel Injector Control Module (FICM) Power Relay Connector End View (C1235)

G07843546

Courtesy of FORD MOTOR CO.

Fig 237: Manifold Air Temperature (MAT) Sensor Connector End View (C1236)

G07843547

Courtesy of FORD MOTOR CO.

Fig 238: Injection Control Pressure (ICP) Sensor Connector End View (C1244)

G07843548

Courtesy of FORD MOTOR CO.

Fig 239: Battery II Connector End View (C1249a)

G07843549

Courtesy of FORD MOTOR CO.

Fig 240: Battery II Connector End View (C1249b)

G07843550

Courtesy of FORD MOTOR CO.

Fig 241: Generator, Secondary Connector End View (C1251a)

G07843551

Courtesy of FORD MOTOR CO.

Fig 242: Generator, Secondary Connector End View (C1251b)

G07843552

Courtesy of FORD MOTOR CO.

Fig 243: Diesel Fuel Pump Connector End View (C1253)

G07843553

Courtesy of FORD MOTOR CO.

Fig 244: Horn Connector End View (C1256)

G07843554

Courtesy of FORD MOTOR CO.

Fig 245: Exhaust Back Pressure (EBP) Sensor Connector End View (C1271)

G07843555

Courtesy of FORD MOTOR CO.

Fig 246: 4R70E/4R75E Transmission Connector End View (C1274)

G07843556

Courtesy of FORD MOTOR CO.

Fig 247: Inline Connector End View (C1278)

G07843557

Courtesy of FORD MOTOR CO.

Fig 248: Inline Connector End View (C1279)

G07843558

Courtesy of FORD MOTOR CO.

Fig 249: Auxiliary Battery Relay Connector End View (C1283a)

G07843559

Courtesy of FORD MOTOR CO.

Fig 250: Auxiliary Battery Relay Connector End View (C1283b)

G07843560

Courtesy of FORD MOTOR CO.

Fig 251: Auxiliary Battery Relay Connector End View (C1283c)

G07843561

Courtesy of FORD MOTOR CO.

Fig 252: Headlamp, Left Connector End View (C1284)

G07843562

Courtesy of FORD MOTOR CO.

Fig 253: headlamp, Right Connector End View (C1285)

G07843563

Courtesy of FORD MOTOR CO.

Fig 254: Glow Plug Control Module (GPCM) Connector End View (C1301a)

G07843564

Courtesy of FORD MOTOR CO.

Fig 255: Glow Plug Control Module (GPCM) Connector End View (C1301b)

G07843565

Courtesy of FORD MOTOR CO.

Fig 256: Fuel Injector 7 Connector End View (C1312)

G07843566

Courtesy of FORD MOTOR CO.

Fig 257: Fuel Injector 8 Connector End View (C1313)

G07843567

Courtesy of FORD MOTOR CO.

Fig 258: Injector Pressure Regulator (IPR) Connector End View (C1360)

G07843568

Courtesy of FORD MOTOR CO.

Fig 259: Camshaft Position Sensor Connector End View (C1375)

G07843569

Courtesy of FORD MOTOR CO.

Fig 260: Inline Connector End View (C1386)

G07843570

Courtesy of FORD MOTOR CO.

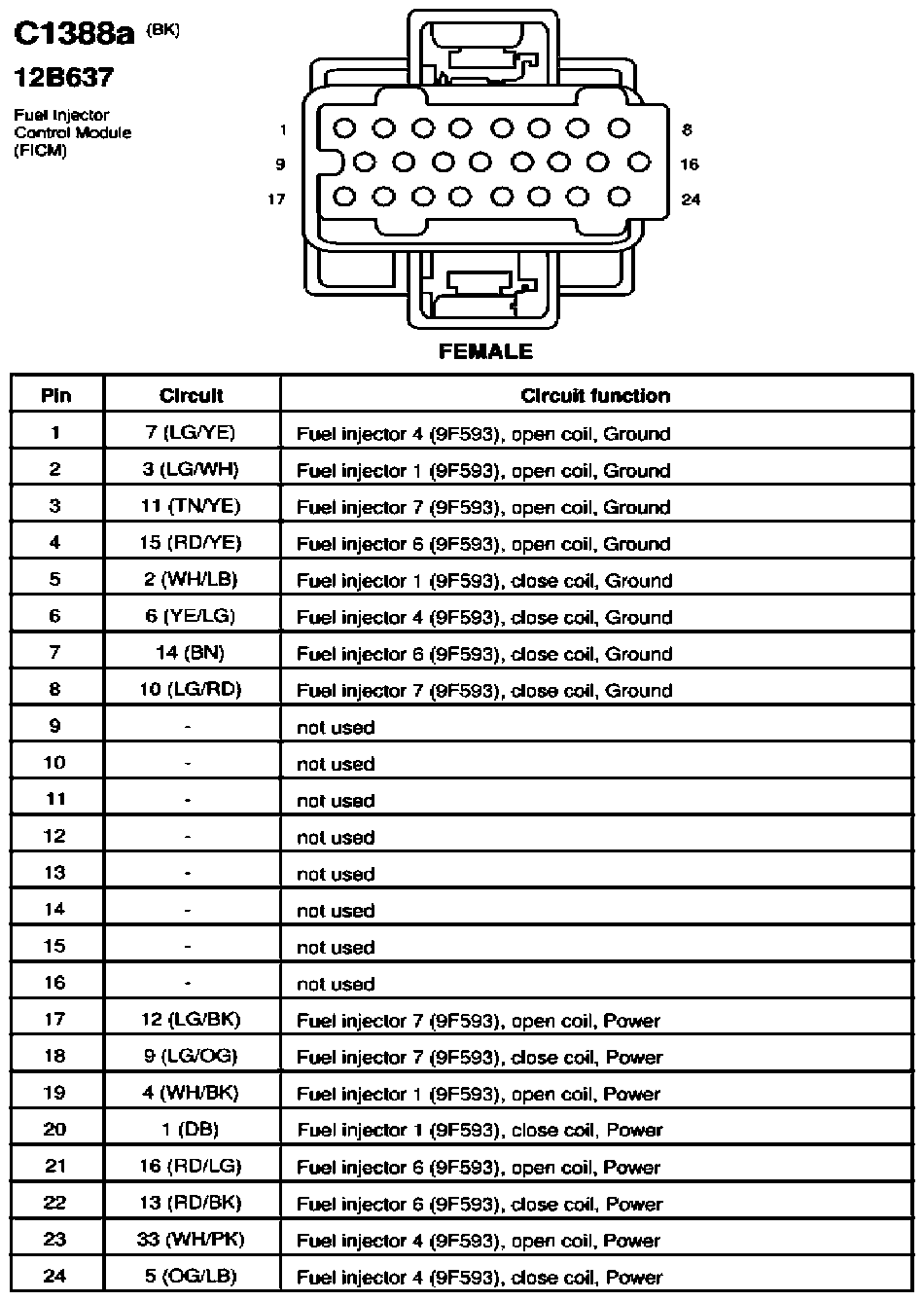

Fig 261: Fuel Injector Control Module (FICM) Connector End View (C1388a)

G03993141

Courtesy of FORD MOTOR CO.

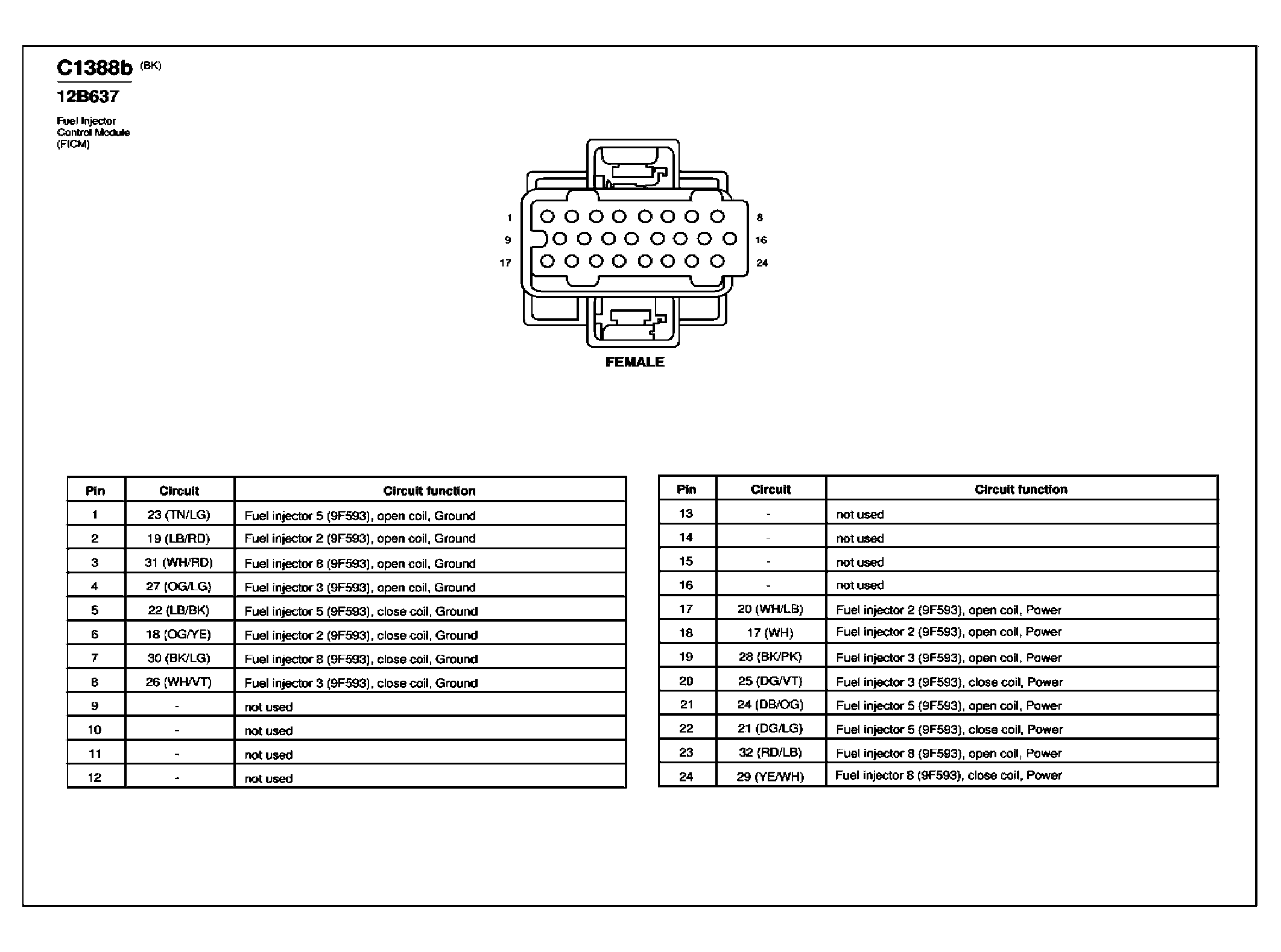

Fig 262: Fuel Injector Control Module (FICM) Connector End View (C1388b)

G03993142

Courtesy of FORD MOTOR CO.

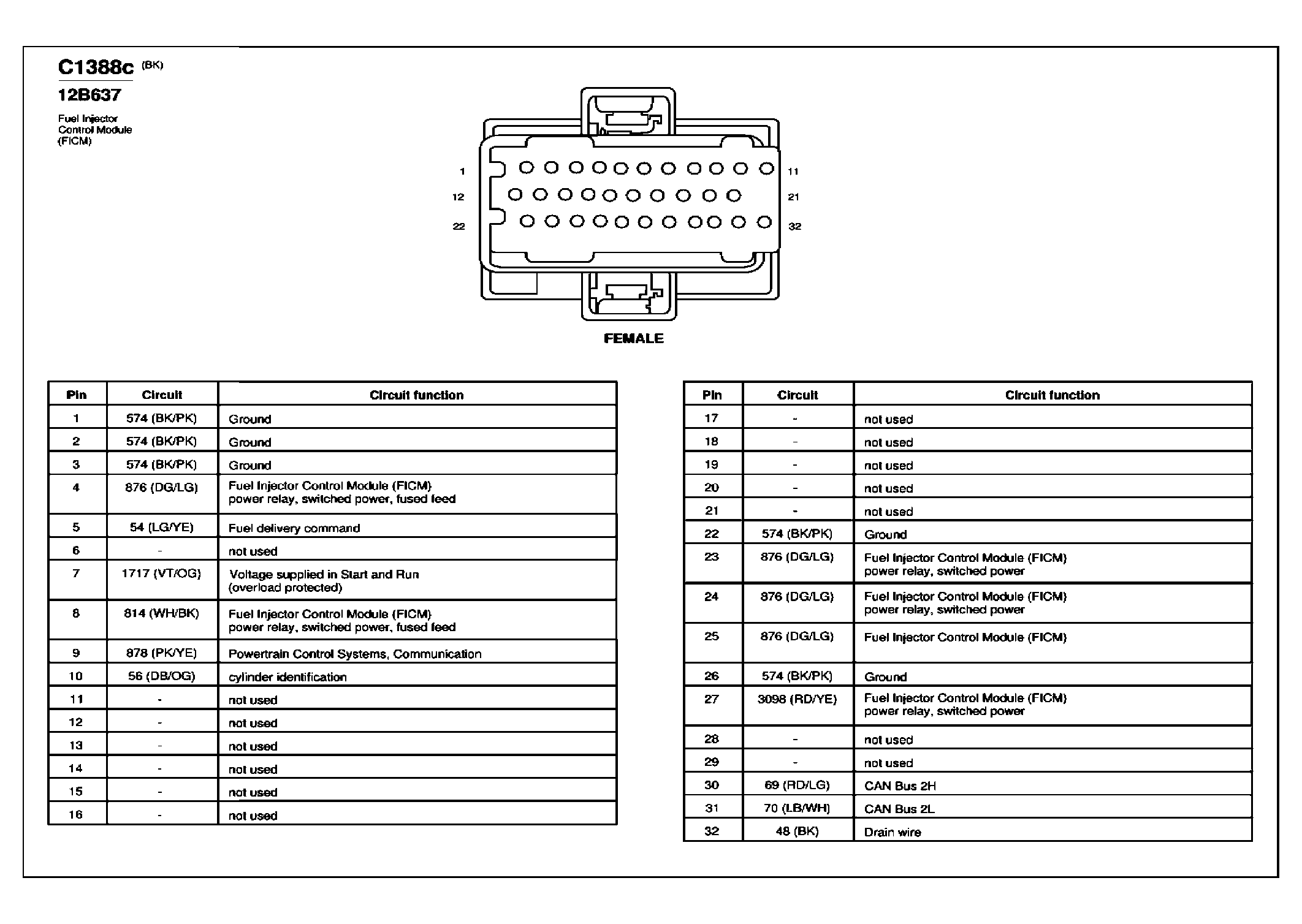

Fig 263: Fuel Injector Control Module (FICM) Connector End View (C1388c)

G03993143

Courtesy of FORD MOTOR CO.

Fig 264: EGR Valve Actuator Connector End View (C1389)

G07843571

Courtesy of FORD MOTOR CO.

Fig 265: Variable Geometric Turbo Actuator Connector End View (C1390)

G07843572

Courtesy of FORD MOTOR CO.

Fig 266: Glow Plug Bank, Left Connector End View (C1413)

G07843573

Courtesy of FORD MOTOR CO.

Fig 267: Glow Plug Bank, Right Connector End View (C1414)

G07843574

Courtesy of FORD MOTOR CO.

Fig 268: EGR System Module (ESM) Connector End View (C1455)

G07843575

Courtesy of FORD MOTOR CO.

Fig 269: Brake Shift Interlock Connector End View (C2008)

G07843576

Courtesy of FORD MOTOR CO.

Fig 270: Parking Brake Switch Connector End View (C2015)

G07843577

Courtesy of FORD MOTOR CO.

Fig 271: Cigar Lighter, Front Connector End View (C2031)

G07843578

Courtesy of FORD MOTOR CO.

Fig 272: Power Point Connector End View (C2033)

G07843579

Courtesy of FORD MOTOR CO.

Fig 273: Accelerator Pedal Position Sensor Connector End View (C2040)

G07843580

Courtesy of FORD MOTOR CO.

Fig 274: Overdrive Cancel Switch Connector End View (C2135)

G07843581

Courtesy of FORD MOTOR CO.

Fig 275: Electronic Flasher Module Connector End View (C2141)

G07843582

Courtesy of FORD MOTOR CO.

Fig 276: Radio Connector End View (C2188a)

G07843583

Courtesy of FORD MOTOR CO.

Fig 277: Barometric Absolute Pressure (BAP) Sensor Connector End View (C2256)

G07843584

Courtesy of FORD MOTOR CO.

Fig 278: Passenger Safety Belt Retractor Pretensioner Connector End View (C3006)

G07843585

Courtesy of FORD MOTOR CO.

Fig 279: Inline Connector End View (C3007)

G07843586

Courtesy of FORD MOTOR CO.

Fig 280: Inline Connector End View (C3047)

G07843587

Courtesy of FORD MOTOR CO.

Fig 281: Inline Connector End View (C3049)

G07843588

Courtesy of FORD MOTOR CO.

Fig 282: Inline Connector End View (C3050)

G07843589

Courtesy of FORD MOTOR CO.

Fig 283: Inline Connector End View (C3051)

G07843590

Courtesy of FORD MOTOR CO.

Fig 284: Inline Connector End View (C3052)

G07843591

Courtesy of FORD MOTOR CO.

Fig 285: Fuel Tank Pressure Transducer Sensor Connector End View (C3123)

G07843592

Courtesy of FORD MOTOR CO.

Fig 286: Inline Connector End View (C3127)

G07843593

Courtesy of FORD MOTOR CO.

Fig 287: Door Ajar Switch, Left Front Connector End View (C3129)

G07843594

Courtesy of FORD MOTOR CO.

Fig 288: Speaker, Left Middle Connector End View (C3130)

G07843595

Courtesy of FORD MOTOR CO.

Fig 289: Inline Connector End View (C3133)

G07843596

Courtesy of FORD MOTOR CO.

Fig 290: Driver Safety Belt Retractor Pretensioner Connector End View (C3134)

G07843597

Courtesy of FORD MOTOR CO.

Fig 291: Inline Connector End View (C3135)

G07843598

Courtesy of FORD MOTOR CO.

Fig 292: Inline Connector End View (C3136)

G07843599

Courtesy of FORD MOTOR CO.

Fig 293: Inline Connector End View (C3139)

G07843600

Courtesy of FORD MOTOR CO.

Fig 294: Door Ajar Switch, Right Front Connector End View (C3141)

G07843601

Courtesy of FORD MOTOR CO.

Fig 295: Sliding Door Contact Switch, Right Connector End View (C3235)

G07843602

Courtesy of FORD MOTOR CO.

Fig 296: Fuel Pump Driver Module Connector End View (C3239)

G07843603

Courtesy of FORD MOTOR CO.

Fig 297: Park/Stop/Turn Lamp, Right Rear Connector End View (C4032)

G07843604

Courtesy of FORD MOTOR CO.

Fig 298: Park/Stop/Turn Lamp, Left Rear Connector End View (C4035)

G07843605

Courtesy of FORD MOTOR CO.

Fig 299: License Plate Lamp Connector End View (C4046)

G07843606

Courtesy of FORD MOTOR CO.

Fig 300: Trailer Tow Connector, 4-Pin Connector End View (C4098)

G07843607

Courtesy of FORD MOTOR CO.

Fig 301: Trailer Tow Connector, 7-Pin Connector End View (C4099)

G07843608

Courtesy of FORD MOTOR CO.

Fig 302: Auxiliary Blower Motor Connector End View (C4106)

G07843609

Courtesy of FORD MOTOR CO.

Fig 303: Auxiliary Blower Motor Resistor Assembly Connector End View (C4107)

G07843610

Courtesy of FORD MOTOR CO.

Fig 304: Rear A/C Blower Speed Relay 1 Connector End View (C4117)

G07843611

Courtesy of FORD MOTOR CO.

Fig 305: Rear A/C Blower Speed Relay 2 Connector End View (C4118)

G07843612

Courtesy of FORD MOTOR CO.

Fig 306: Door Ajar Switch, Driver Side Rear Connector End View (C4119)

G07843613

Courtesy of FORD MOTOR CO.

Fig 307: Door Lock Actuator, Rear Doors Connector End View (C4120)

G07843614

Courtesy of FORD MOTOR CO.

Fig 308: Door Lock Switch, Rear Doors Connector End View (C4121)

G07843615

Courtesy of FORD MOTOR CO.
