Transaxle Rear Support Insulator: Notes

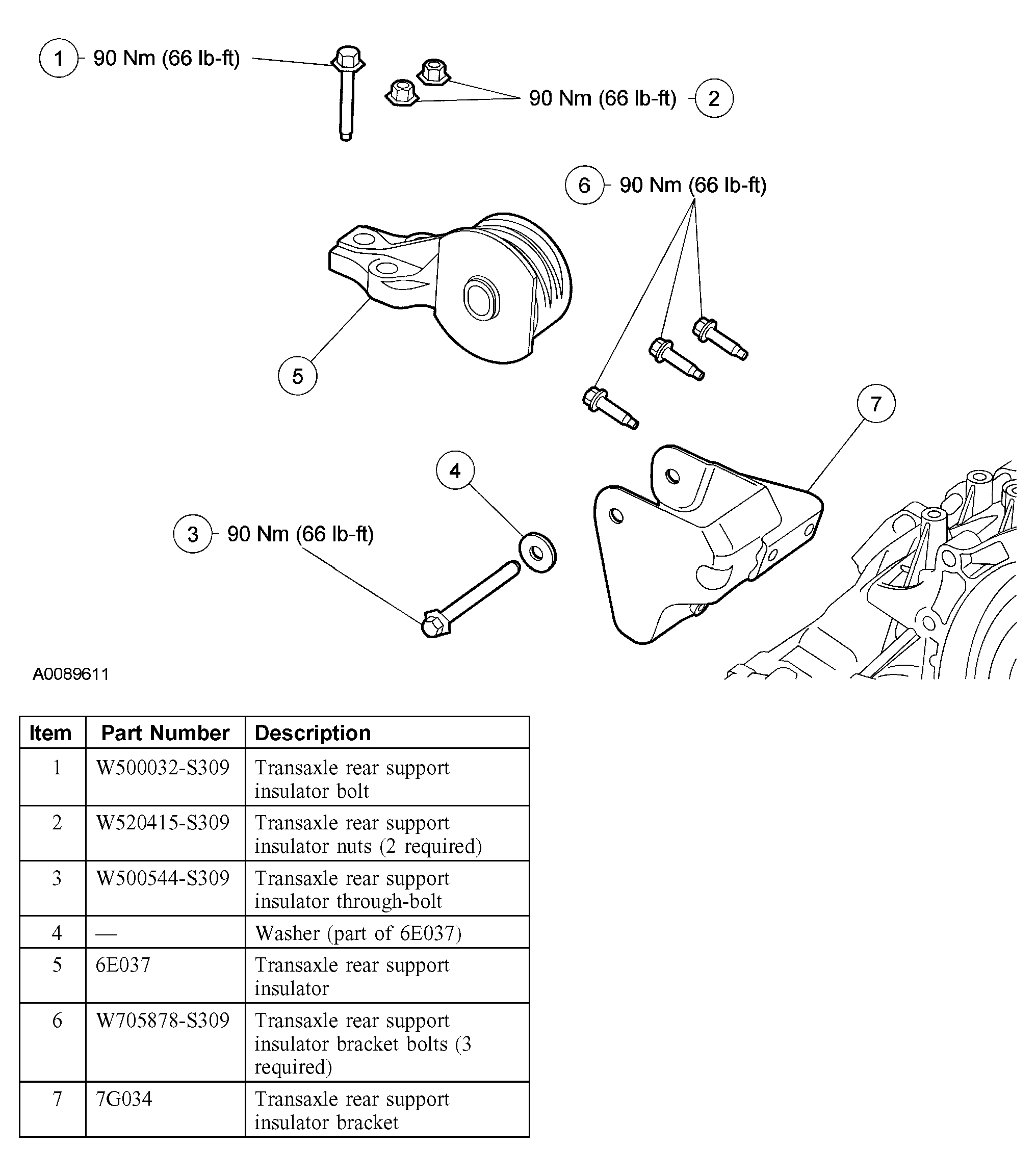

Fig 1: Transaxle Rear Support Insulator With Torque Specifications
G03901742Courtesy of FORD MOTOR CO.
