Wiper/washer switch: Schematic

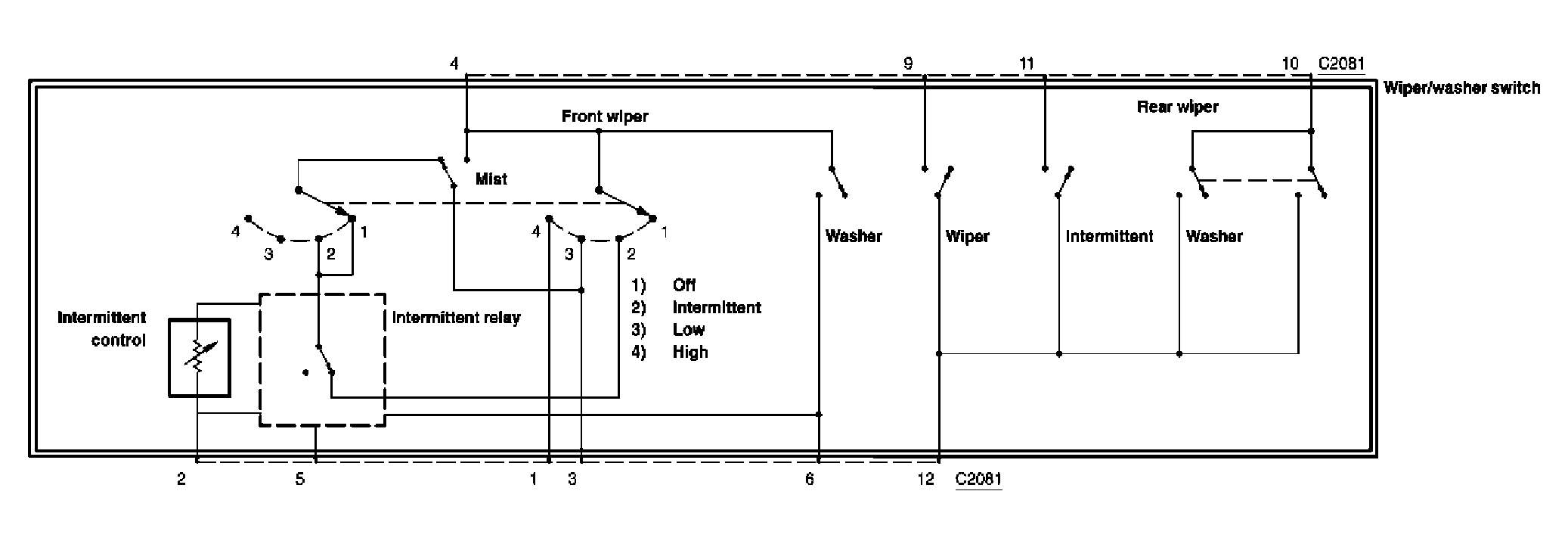

Fig 1: Wiper/Washer Switch - Schematic
G03993163Courtesy of FORD MOTOR CO.
