Powertrain Control Module (PCM): Notes

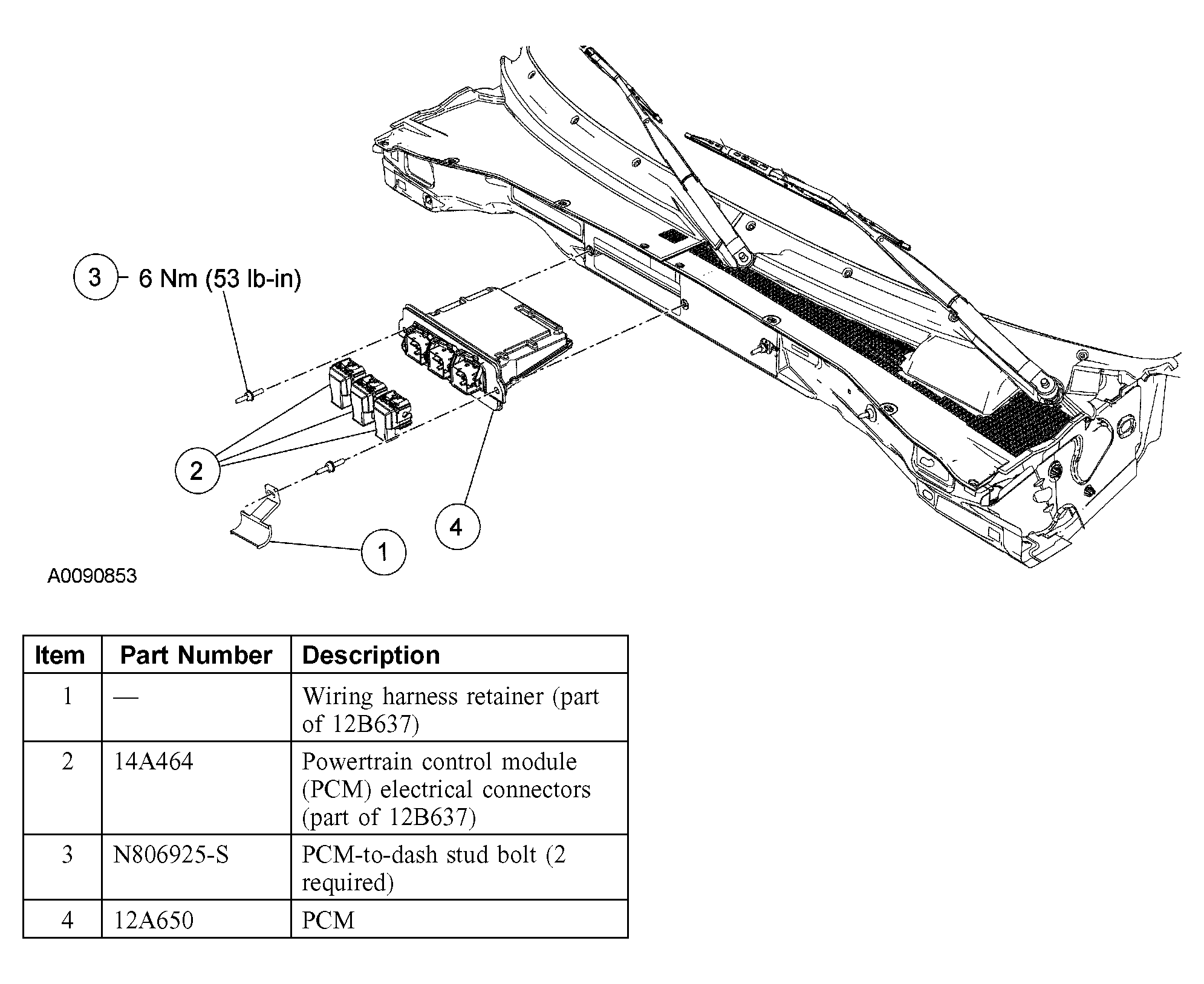

Fig 1: Powertrain Control Module (PCM) With Torque Specifications
G03900481Courtesy of FORD MOTOR CO.
