Powertrain Control Module (PCM): Notes

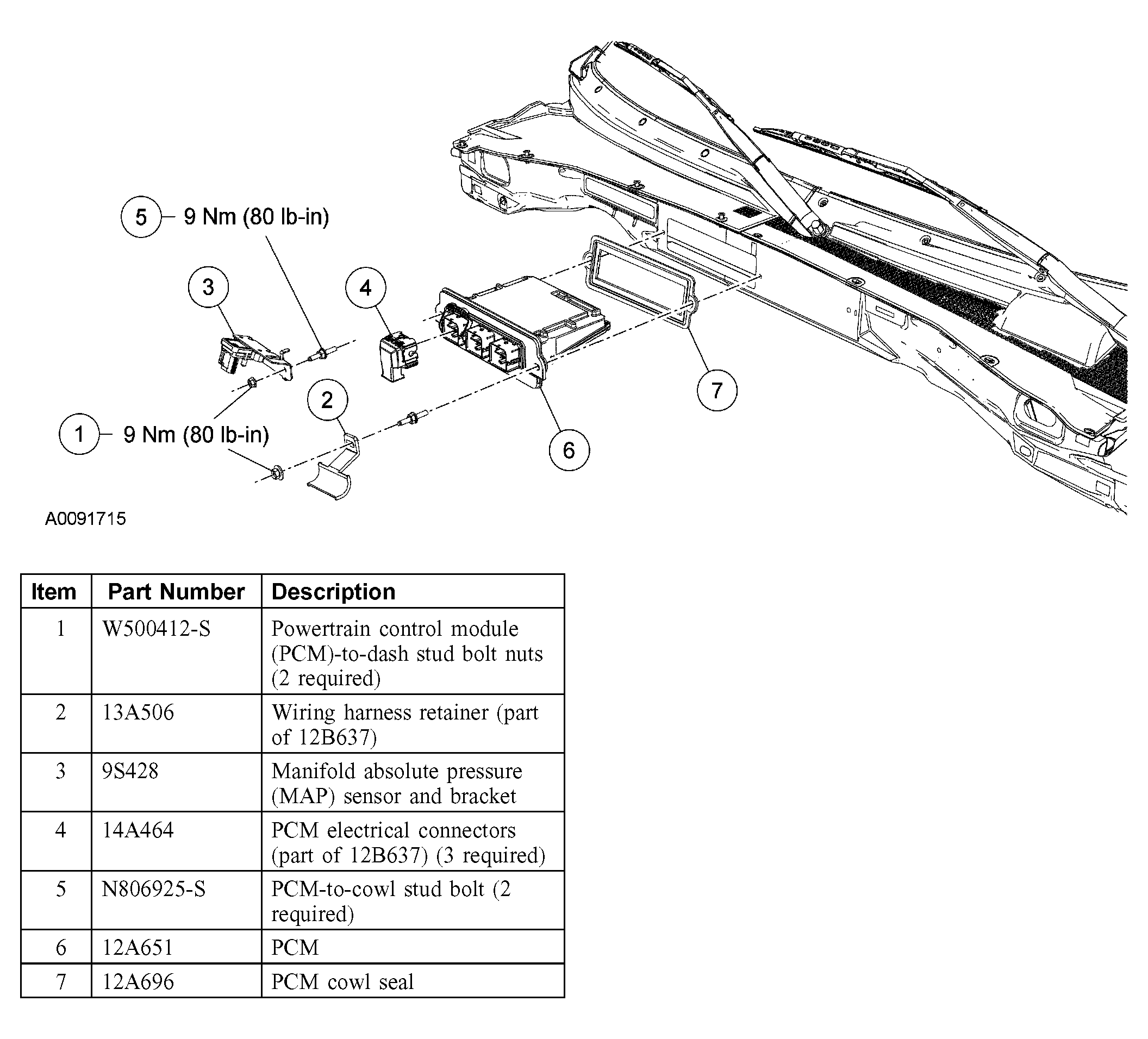

Fig 1: Removing Powertrain Control Module With Torque Specifications
G03900496Courtesy of FORD MOTOR CO.
