Wheel Speed Sensor - Rear: Notes

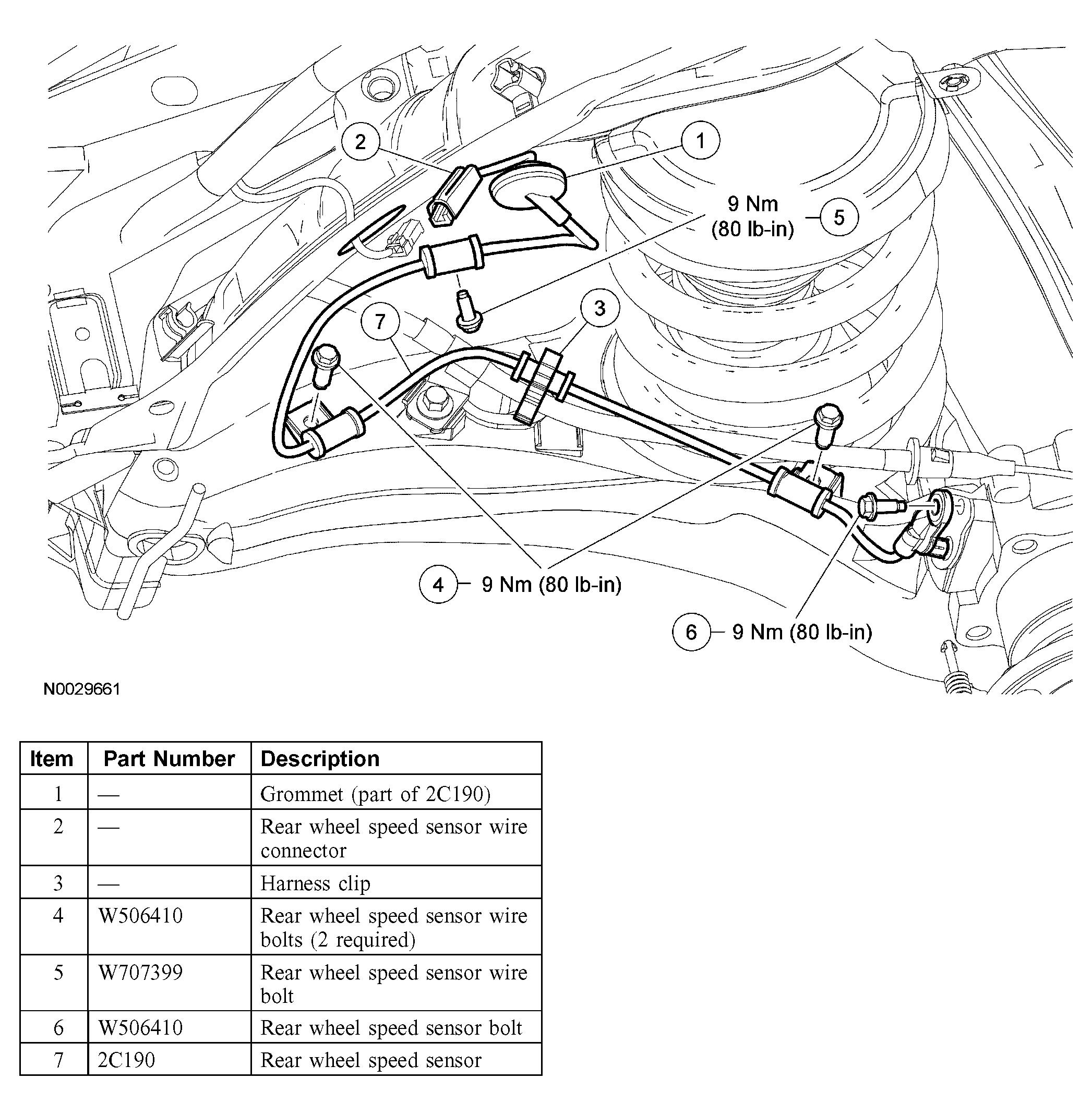

Fig 1: Wheel Speed Sensor - Rear With Torque Specifications
G03897542Courtesy of FORD MOTOR CO.
