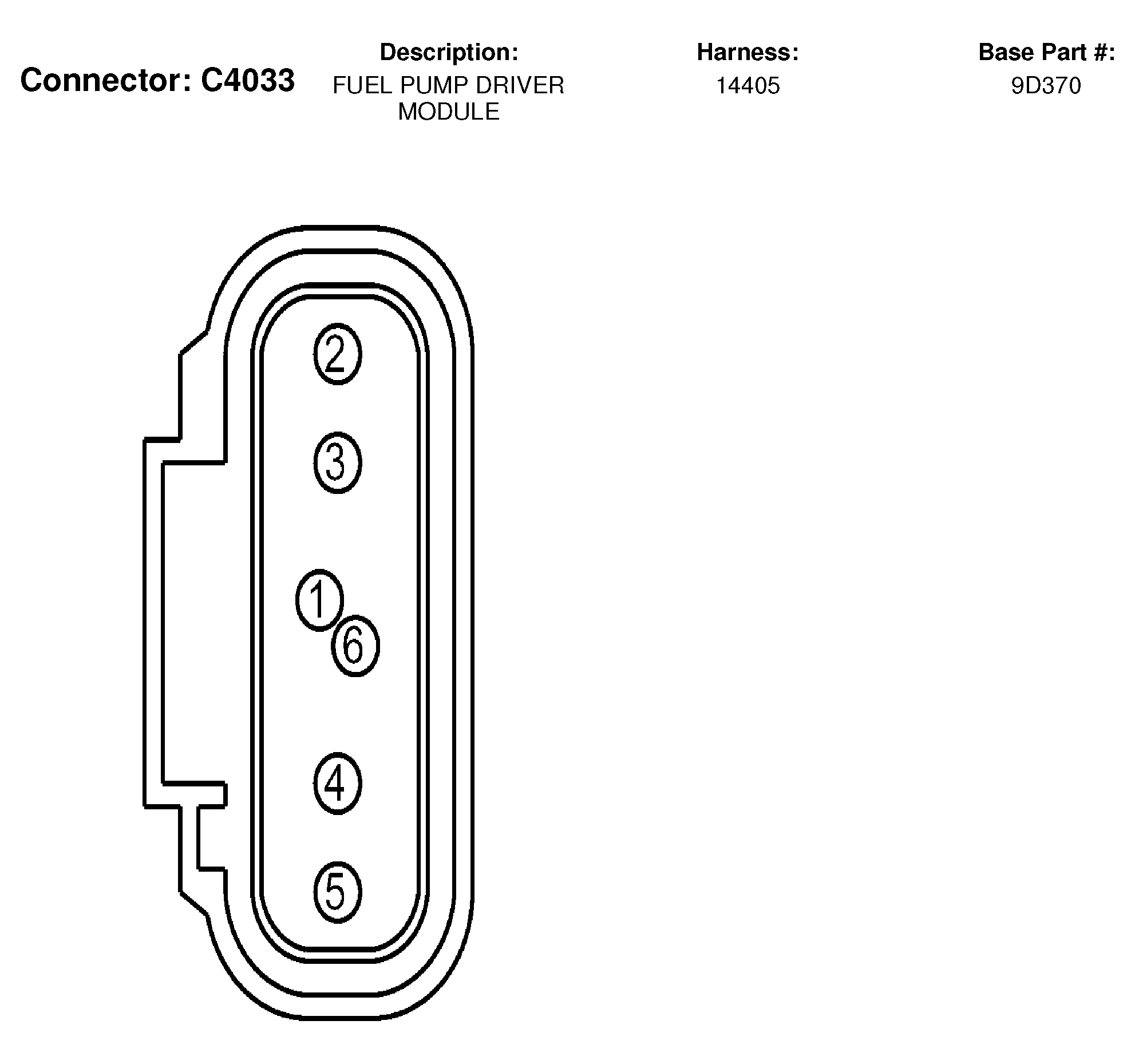

Fuel Pump Driver Module Connector End View (C4033)
Courtesy of FORD MOTOR CO. C4033 CONNECTOR SPECIFICATION
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
| 1 |
238 (DG-YE) |
20 |
Fuel pump monitor |
|
| 2 |
786 (RD) |
14 |
Fuel pump return |
|
| 3 |
57 (BK) |
14 |
Ground |
|
| 4 |
866 (WH) |
14 |
Fuel pump feed |
|
| 5 |
787 (PK-BK) |
1 |
14 |
Inertia fuel shutoff switch signal |
| 6 |
926 (LB-OG) |
20 |
Fuel pump control |
|
