Function Selector Switch Assembly Connector End View (C294C)

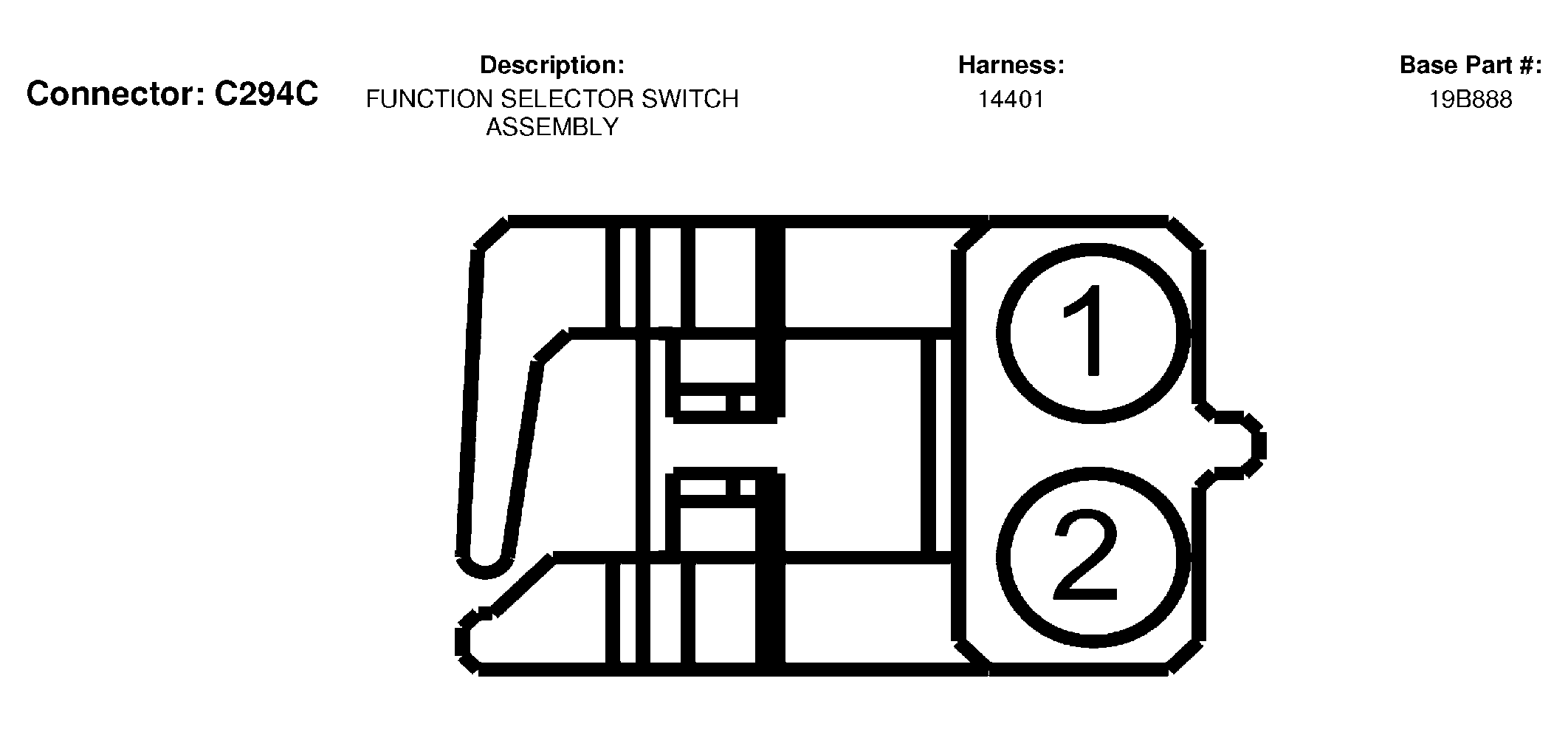

Fig 1: Function Selector Switch Assembly Connector End View (C294C)
G03993265Courtesy of FORD MOTOR CO.
C294C CONNECTOR SPECIFICATION

Pin Circuit Gauge Circuit Function Qualifier
1 57 (BK) 20 Ground
2 19 (LB-RD) 20 Instrument illumination feed
