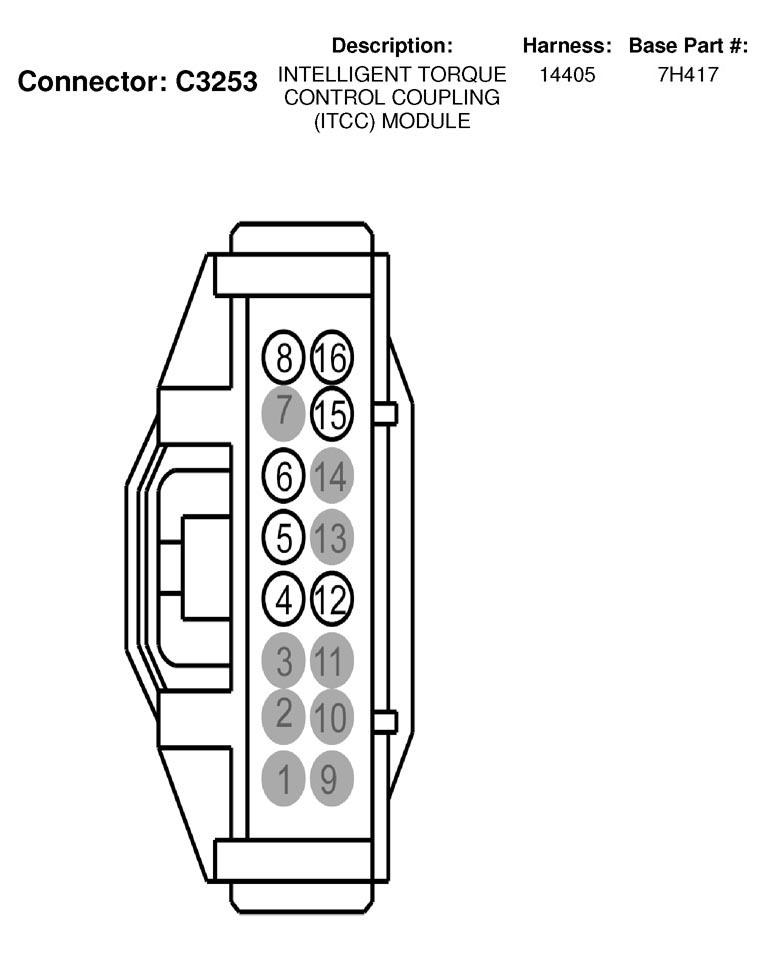

Intelligent Torque Control Coupling (ITCC) Module Connector End View (C3253)
C3253 CONNECTOR SPECIFICATION
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | * | * | not used | |
| 2 | * | * | not used | |
| 3 | * | * | not used | |
| 4 | 1908 (WH) | 20 | High speed CAN bus + | |
| 5 | 1003 (GY-YE) | 20 | Voltage supplied in Start and Run (overload protected) | |
| 6 | 704 (DG-LG) | 20 | Voltage supplied at all times (overload protected) | |
| 7 | * | * | not used | |
| 8 | 772 (LB) | 20 | Intelligent torque control coupling solenoid + | |
| 9 | * | * | not used | |
| 10 | * | * | not used | |
| 11 | * | * | not used | |
| 12 | 1909 (BK) | 20 | High speed CAN bus - | |
| 13 | * | * | not used | |
| 14 | * | * | not used | |
| 15 | 57 (BK) | 20 | Ground | |
| 16 | 774 (LG) | 20 | Intelligent torque control coupling solenoid - |
