Instrument Panel - Exploded View

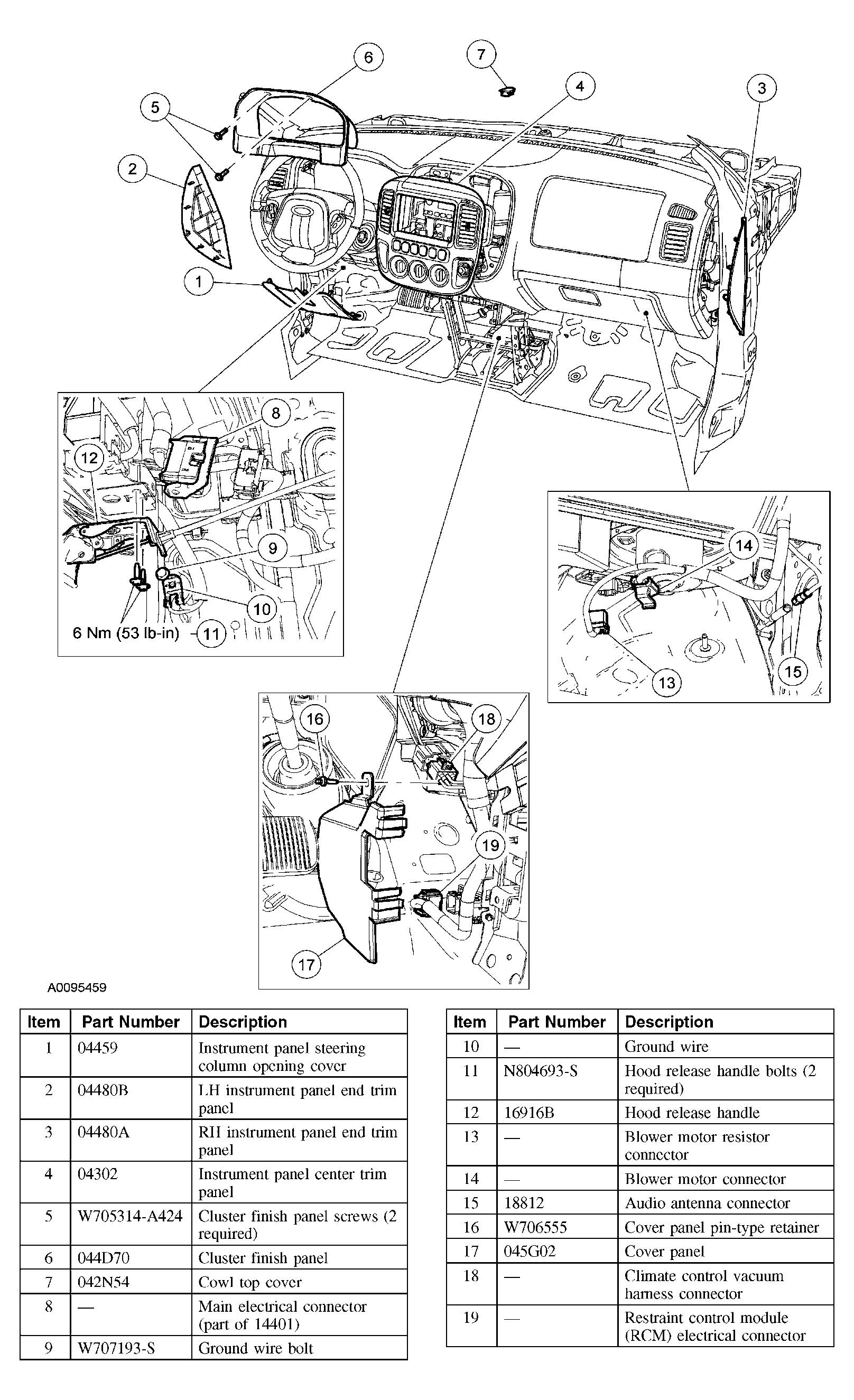

Fig 1: Identifying Instrument Panel Finish Panels Components

Courtesy of FORD MOTOR CO.

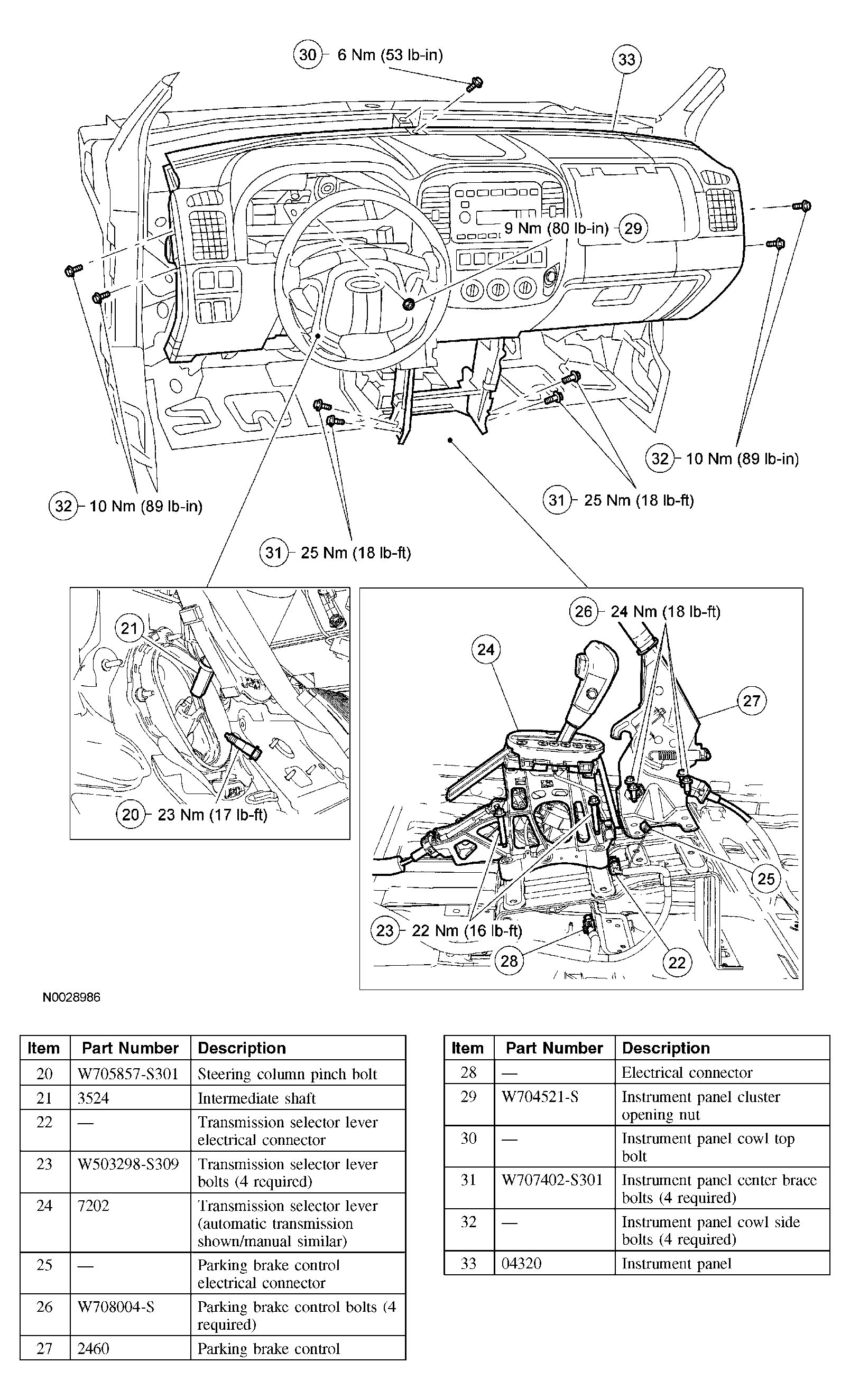

Fig 2: Instrument Panel And Torque Specifications

Courtesy of FORD MOTOR CO.

1. For additional information, refer to the procedures in this article.
