Section 20 (Clutch Controls System)
›
Removal And Installation
›
Clutch Controls - Exploded View
Clutch Controls - Exploded View
WARNING:
This page is about a different variant/trim than selected.

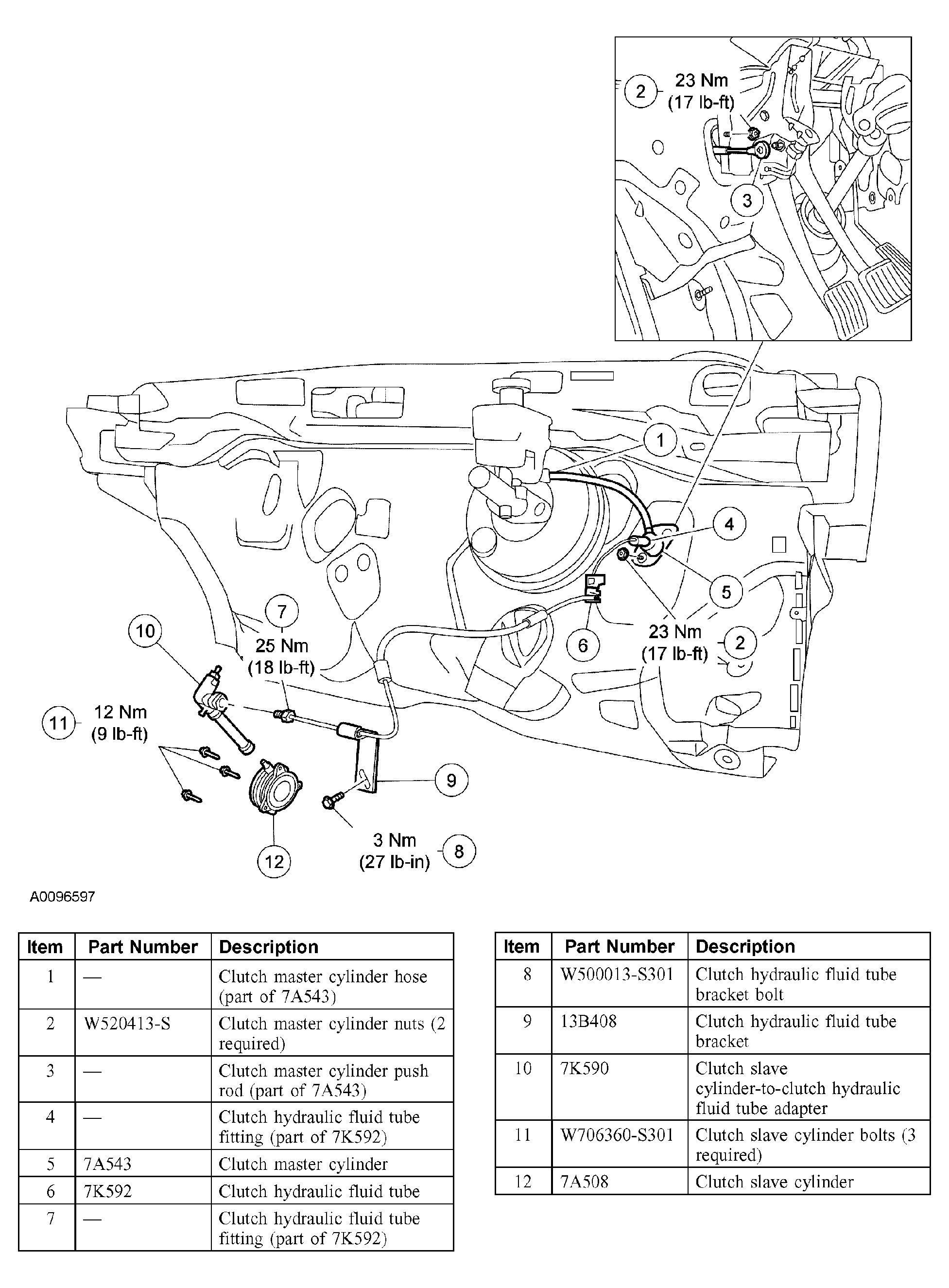

Fig 1: Exploded View Of Clutch Controls With Torque Specifications
Courtesy of FORD MOTOR CO.
For further information, refer to the procedures in this article.
