Inner Tie Rod
›
Notes
Inner Tie Rod: Notes

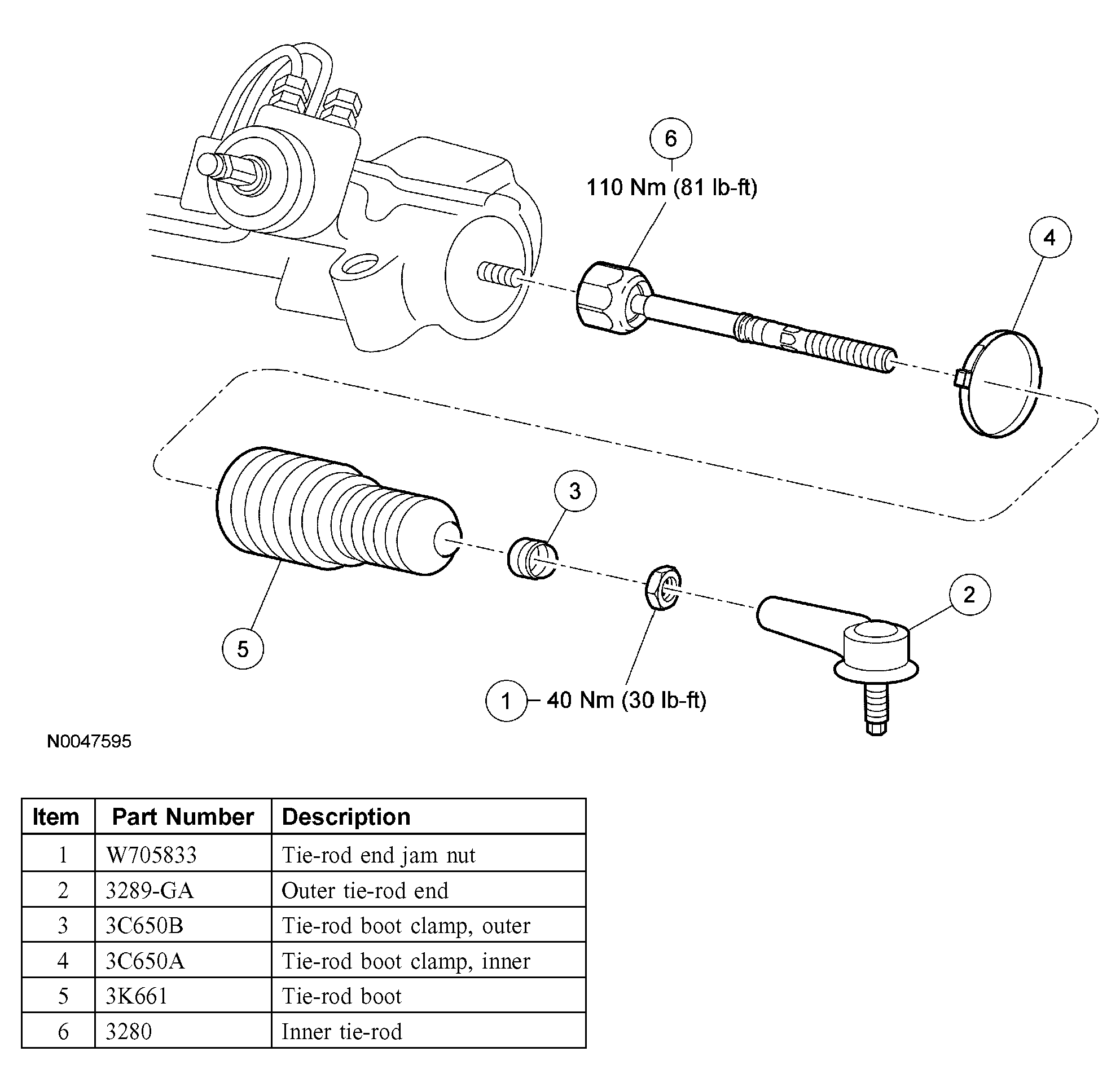

Fig 1: Identifying Inner Tie Rod Components (Escape & Mariner)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
