FixVault
Home
›
Ford
›
2005
›
Escape Base, 3.0 1, FWD
›
Repair and Diagnosis
›
Transmission
›
Automatic Trans
›
Automatic Transmission External Controls - Cd4E
›
Removal And Installation
›
Selector Lever
›
Notes
Selector Lever: Notes

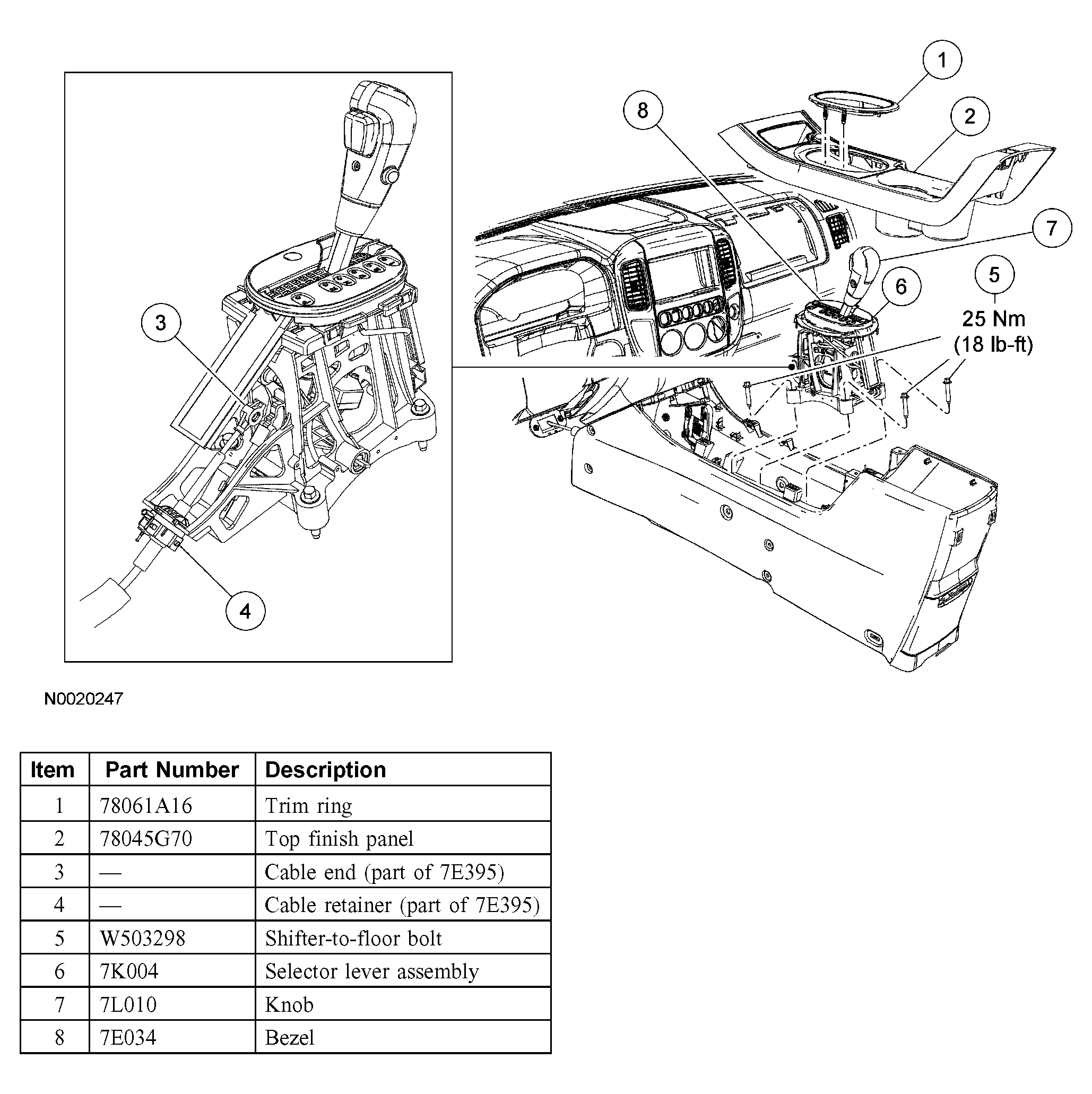

Fig 1: Removing/Installing Selector Lever Component With Torque Specifications
Courtesy of FORD MOTOR CO.
