Connector Circuit Reference

Front Wheel Speed Sensor C150 (LH), and C160 (RH)

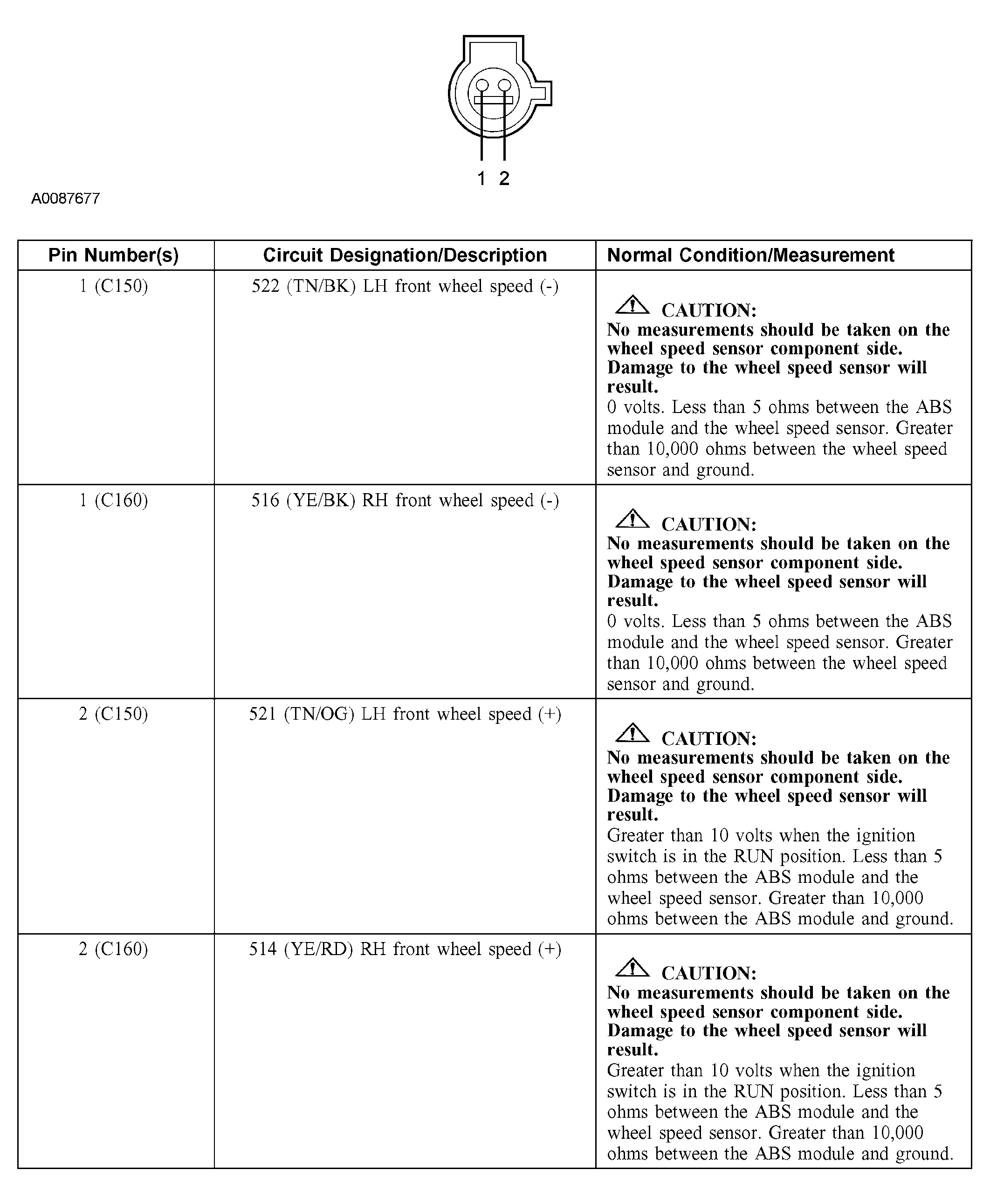

Fig 1: Identifying Front Wheel Speed Sensor C150 (LH), And C160 (RH)

Courtesy of FORD MOTOR CO.

Rear Wheel Speed Sensor C440 (LH), and C426 (RH)

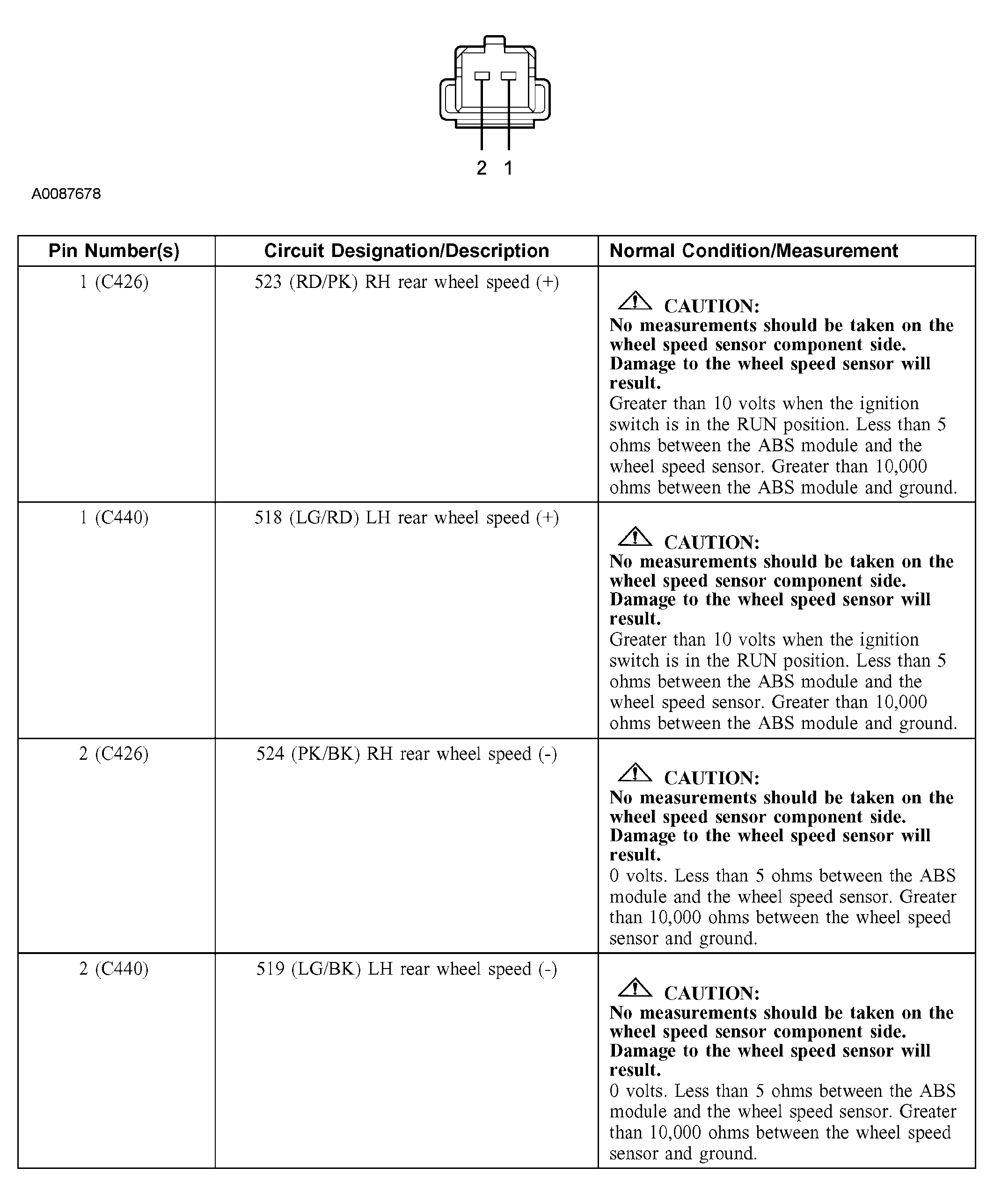

Fig 2: Identifying Rear Wheel Speed Sensor C440 (LH), And C426 (RH)

Courtesy of FORD MOTOR CO.

Anti-Lock Brake System (ABS) Module C1462

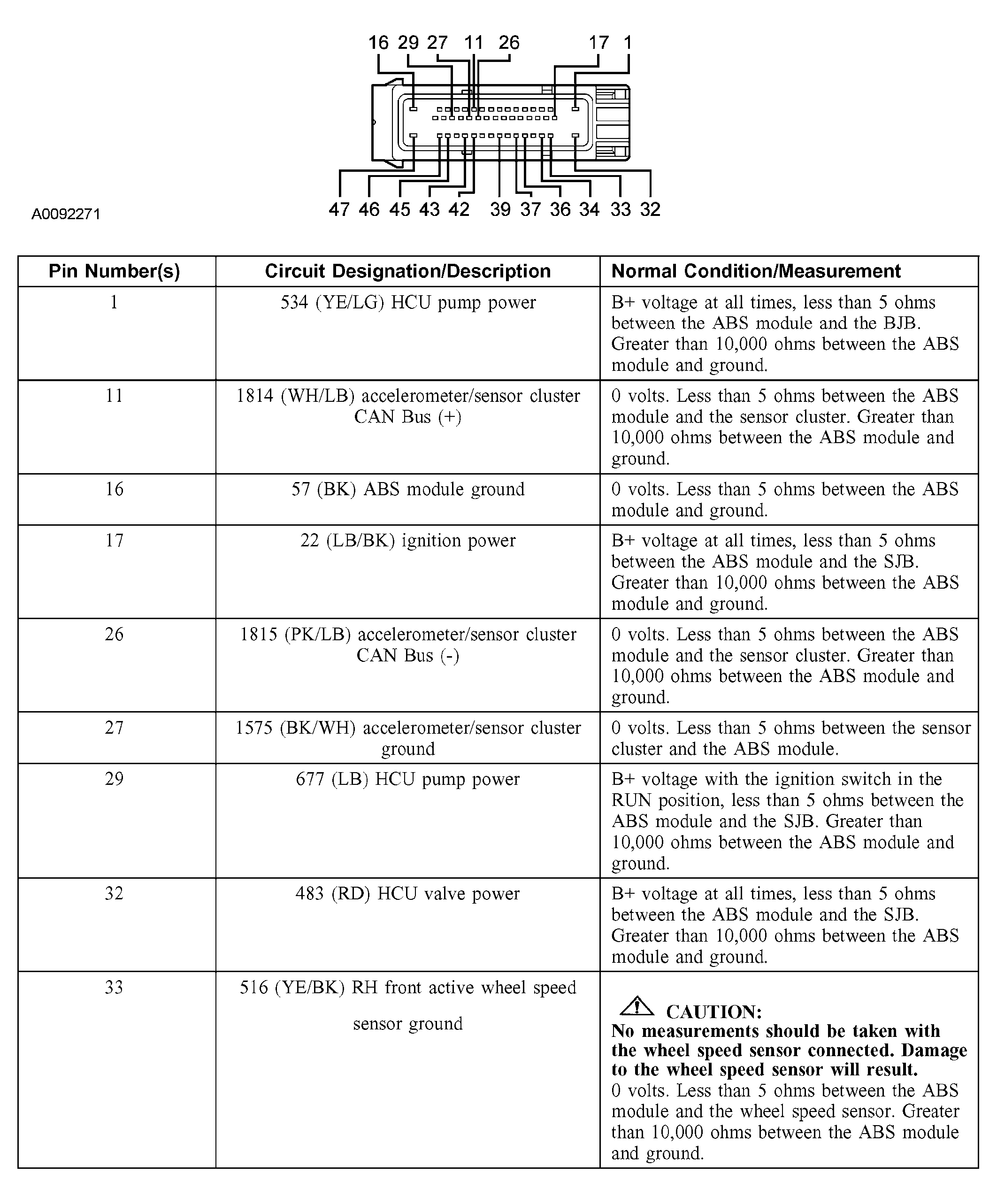

Fig 3: Identifying Anti-Lock Brake System (ABS) Module C1462

Courtesy of FORD MOTOR CO.

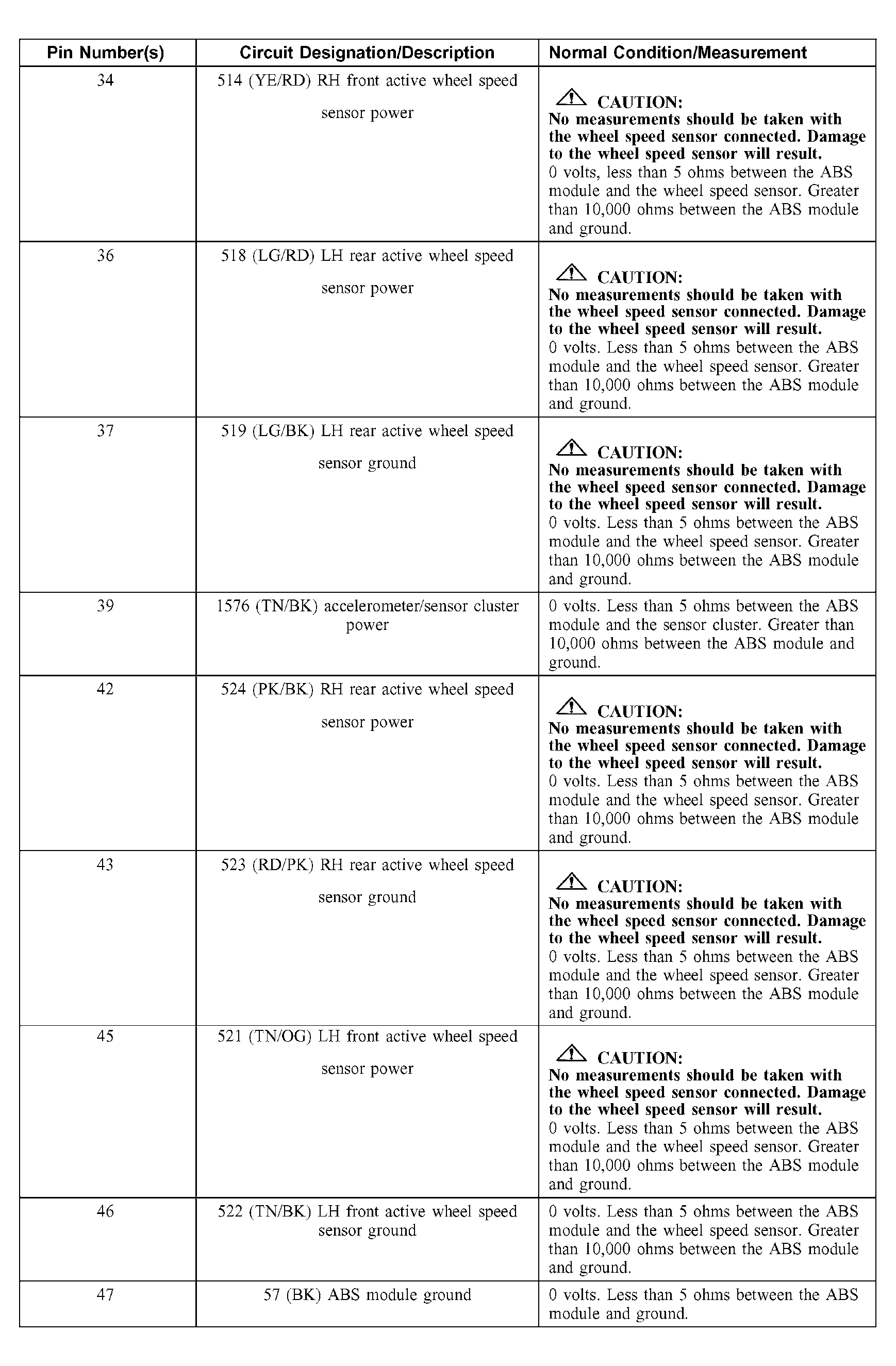

Fig 4: Identifying Anti-Lock Brake System (ABS) Module C1462

Courtesy of FORD MOTOR CO.

Sensor Cluster C2296

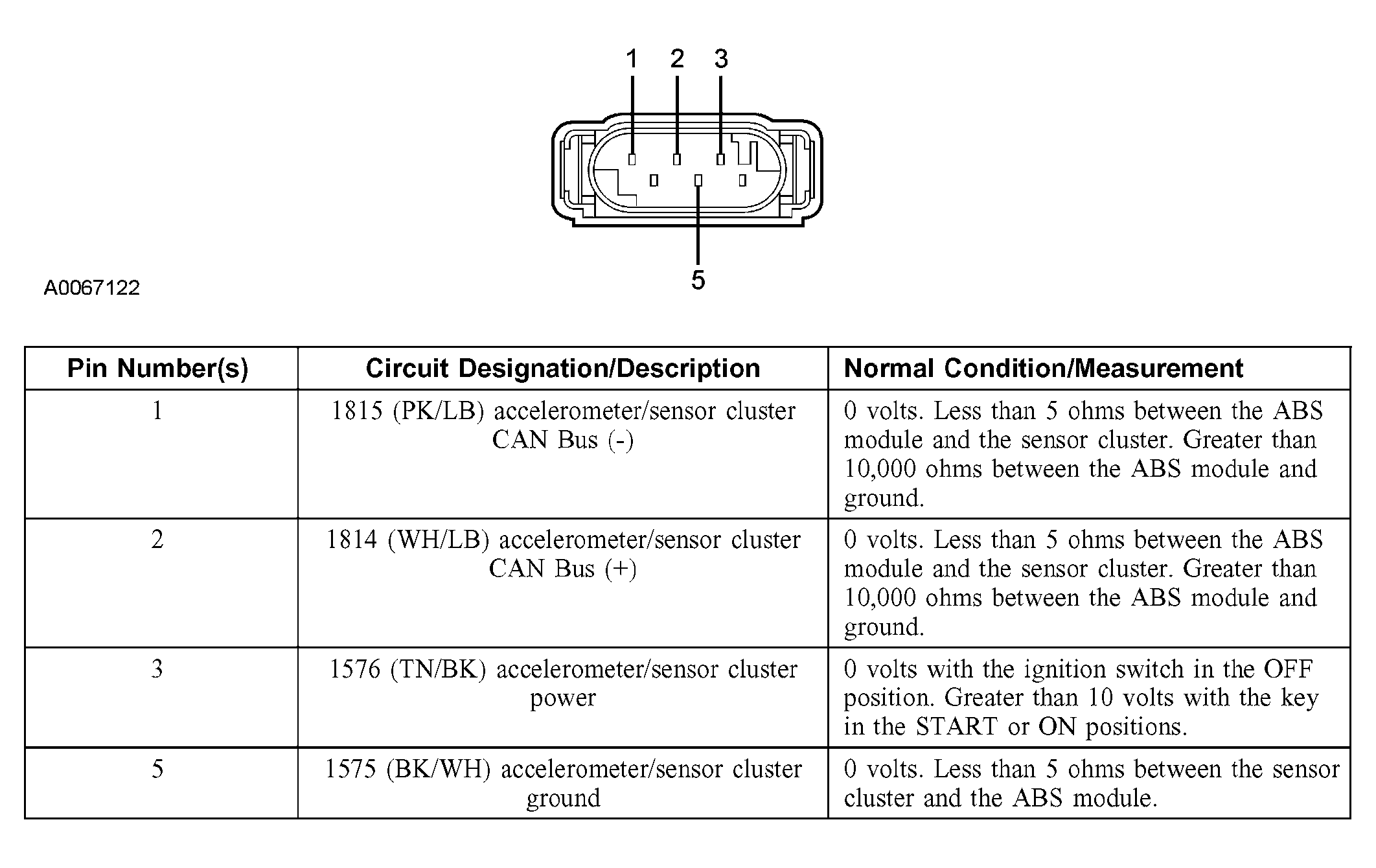

Fig 5: Identifying Sensor Cluster C2296

Courtesy of FORD MOTOR CO.
