Wheel Speed Sensor Ring - Rear: Notes

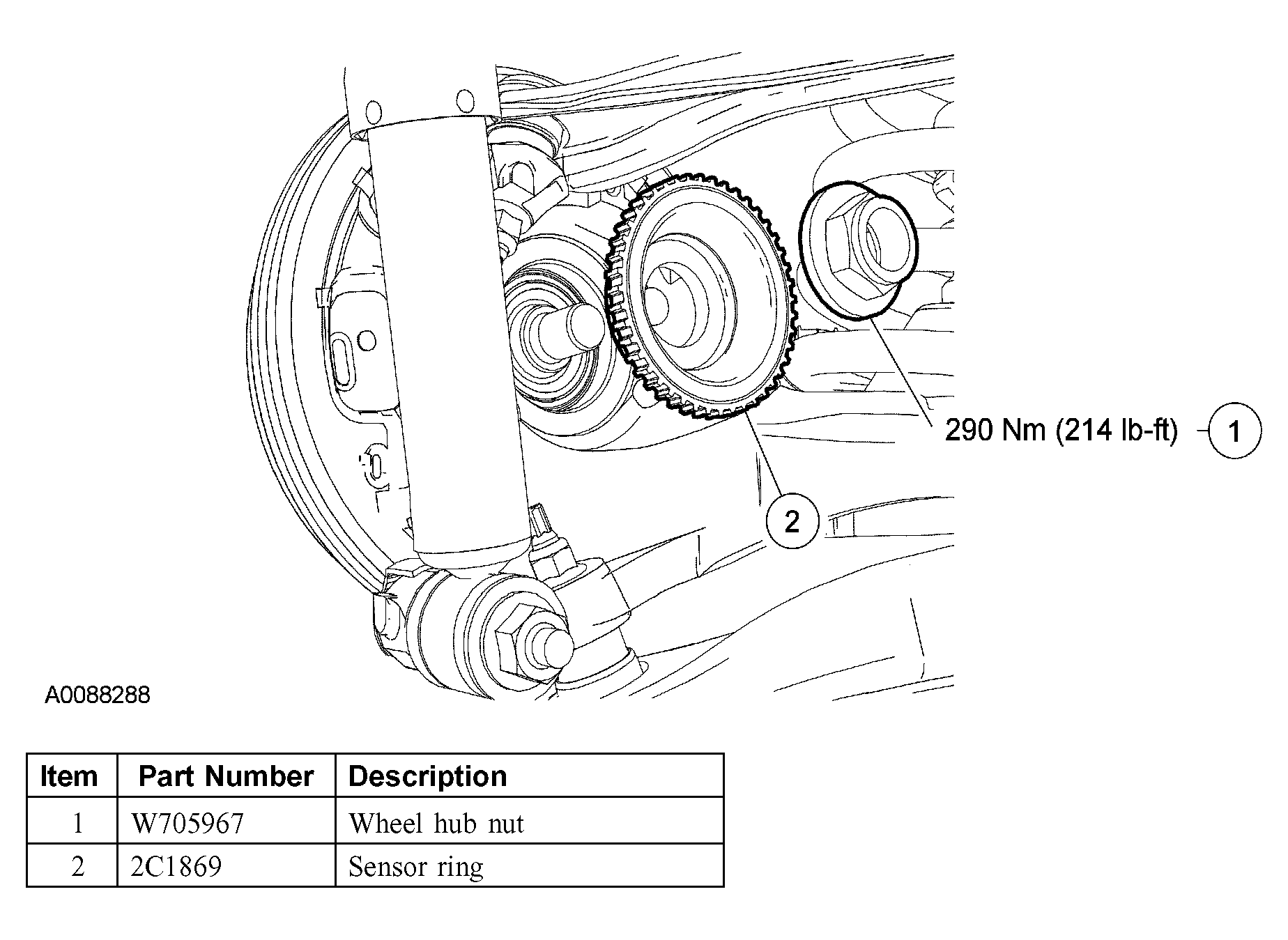

Fig 1: Wheel Speed Sensor Ring - Rear With Torque Specifications
G03897544Courtesy of FORD MOTOR CO.
