Driver Air Bag Module: Installation

Install the driver air bag module.
1. Connect the horn electrical connector.
2. Connect the driver air bag module electrical connector.
3. Position the driver air bag module into the steering wheel.
4. Install the two bolts.
5. Install the two steering wheel back cover plugs.

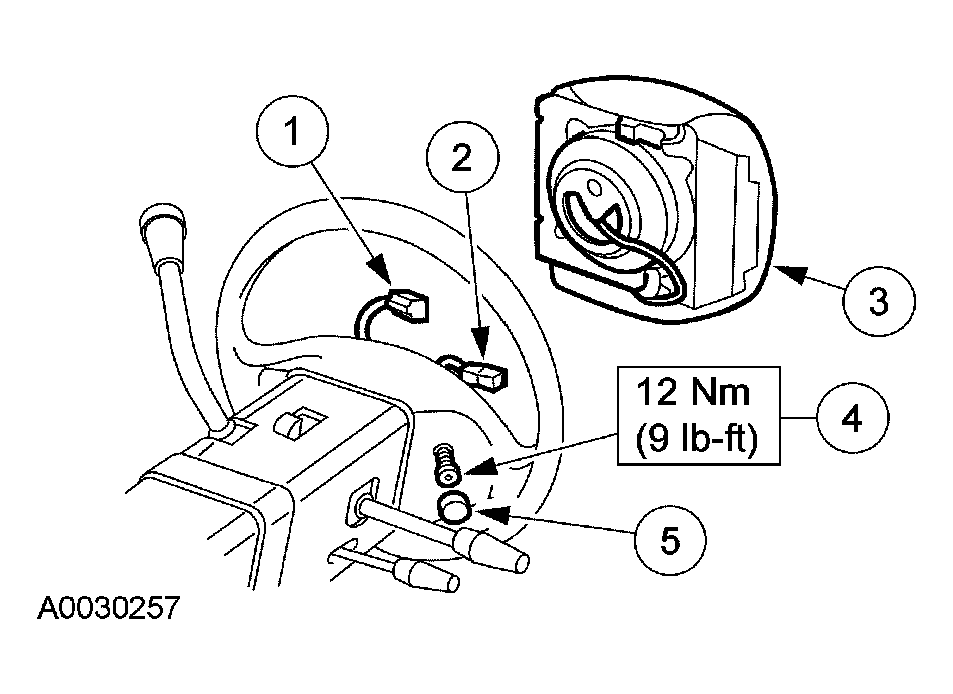

Fig 1: Installing Driver Air Bag Module With Torque Specification
Courtesy of FORD MOTOR CO.
Repower the system. For additional information, Refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING in this article.
