Fuel Conditioning Module - 6.0L Diesel: Disassembly

Remove the fuel filter cover and drain the fuel from the housing.
- Remove and discard the O-ring.

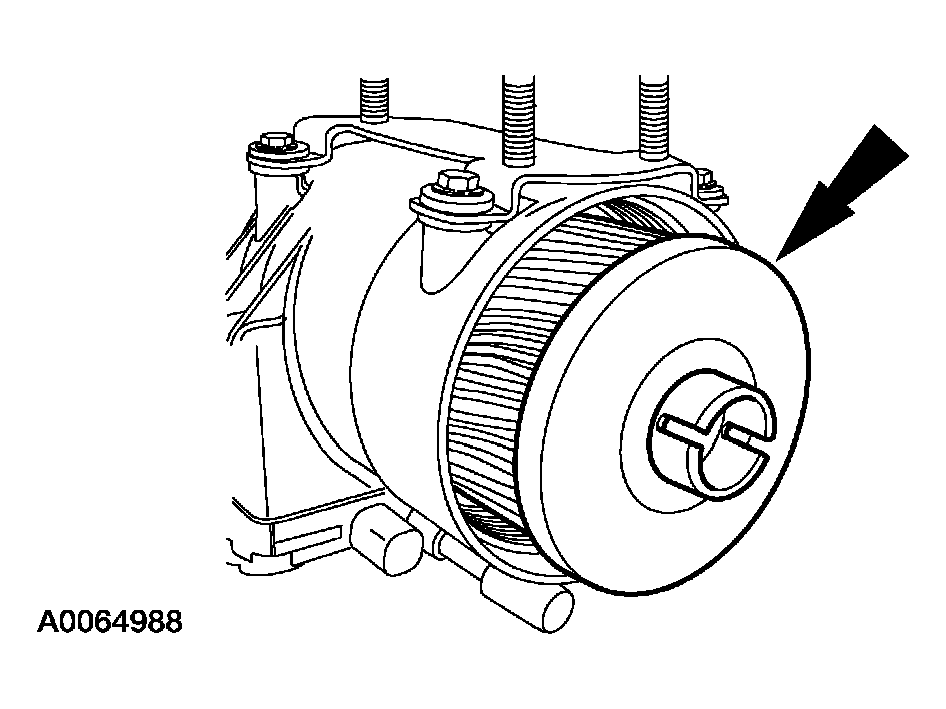

Fig 1: Removing Fuel Filter Cover
Courtesy of FORD MOTOR CO.
Remove the fuel filter and discard.

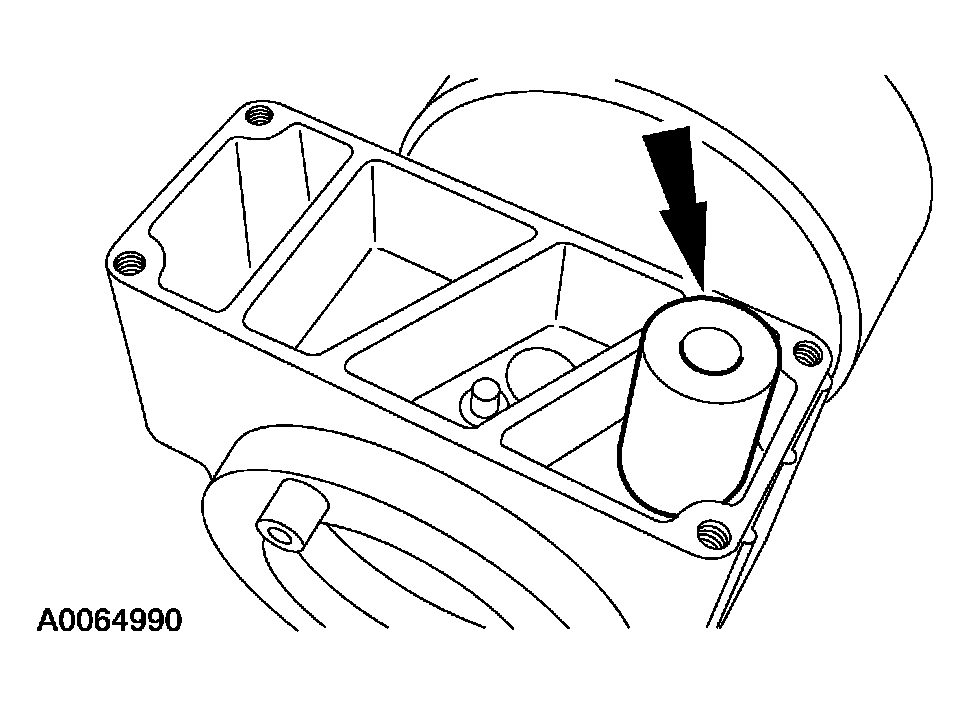

Fig 2: Removing Fuel Filter
Courtesy of FORD MOTOR CO.
Remove the screws and the manifold cover.
- Remove and discard the press-in-place gasket.

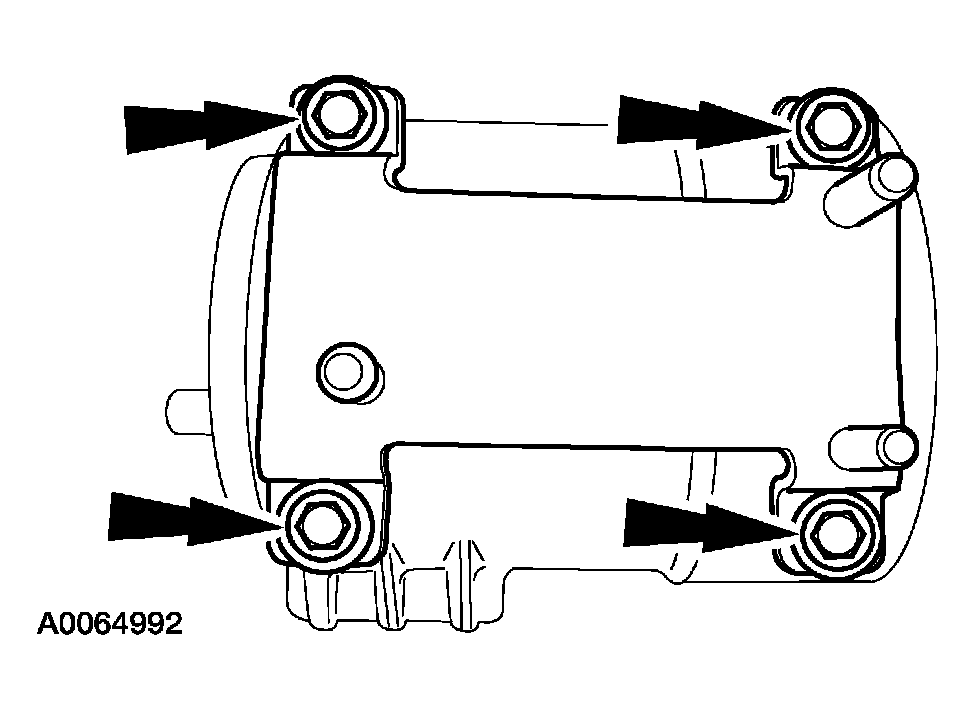

Fig 3: Removing Manifold Cover
Courtesy of FORD MOTOR CO.
Remove the return valve assembly.

Fig 4: Removing Return Valve Assembly
Courtesy of FORD MOTOR CO.
Remove the screws and the fuel pump.
- Remove and discard the O-rings.
Fig 5: Removing Fuel Pump
Courtesy of FORD MOTOR CO.
Remove the screws and the fuel conditioning module mounting bracket.

Fig 6: Removing Fuel Conditioning Module Mounting Bracket
Courtesy of FORD MOTOR CO.
