Engine Front Cover: Installation

WARNING: This page is about a different variant/trim than selected.

    All vehicles

  1. If removed, install the front cover crankcase dowels into the cylinder block.
    Fig 1: Installing Front Cover Crankcase Dowels
    G03887308Courtesy of FORD MOTOR CO.
  2. NOTE: Use guide studs to aid in installation. Studs must be fabricated locally.

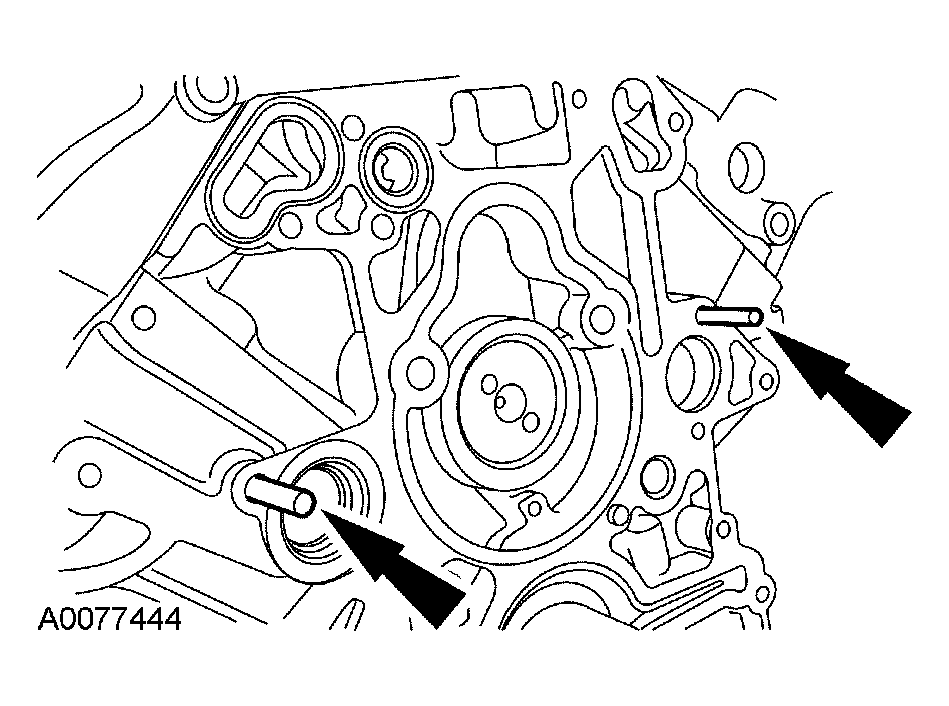

    Fig 2: Installing Guide Studs
    G03887309Courtesy of FORD MOTOR CO.
  3. Install the guide studs.
  4. Apply a bead of sealant at the seam where the crankcase and the lower crankcase meet.

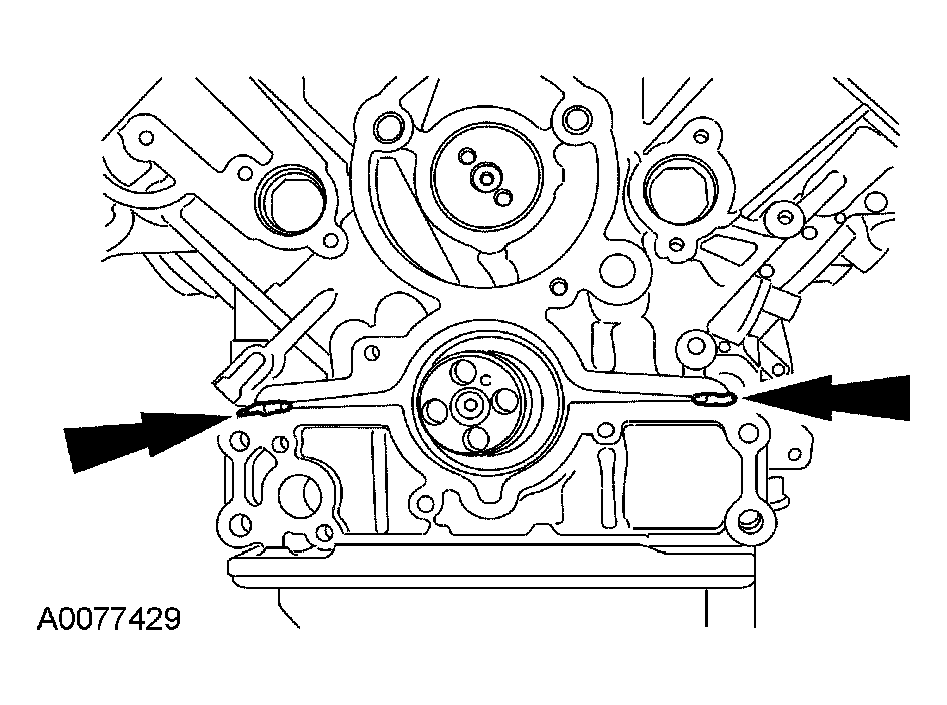

    Fig 3: Applying Bead Of Sealant
    G03887310Courtesy of FORD MOTOR CO.
  5. Install a new engine front cover gasket.

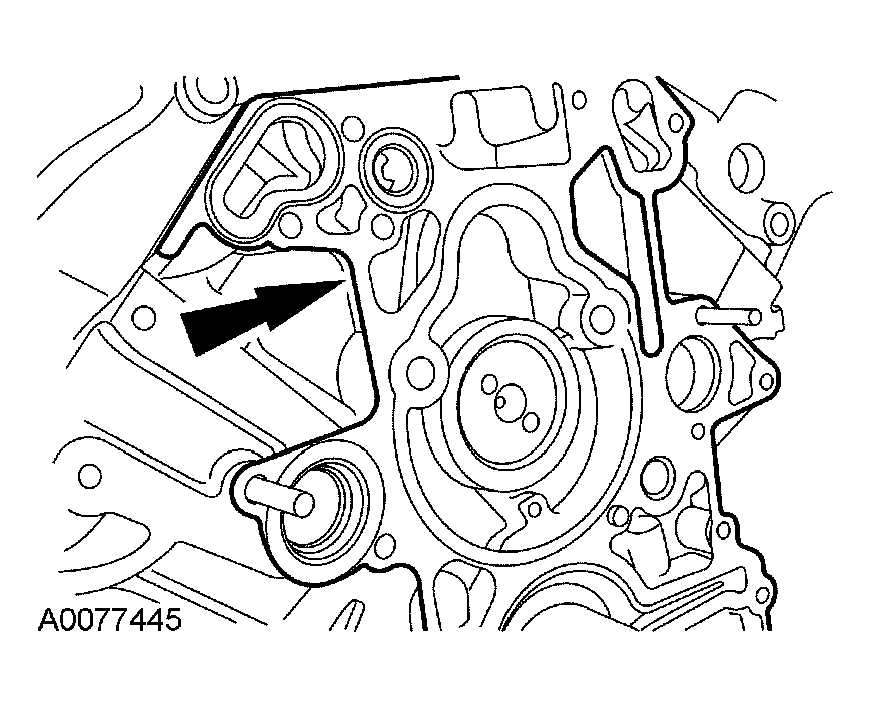

    Fig 4: Installing New Engine Front Cover Gasket
    G03887311Courtesy of FORD MOTOR CO.
  6. Install the engine front cover and bolts.
    Fig 5: Installing Engine Front Cover Bolts With Torque Specifications
    G03887312Courtesy of FORD MOTOR CO.
  7. Install the oil pump. For additional information, refer to OIL PUMP  in this article.
  8. Install the battery cable bracket and nut.

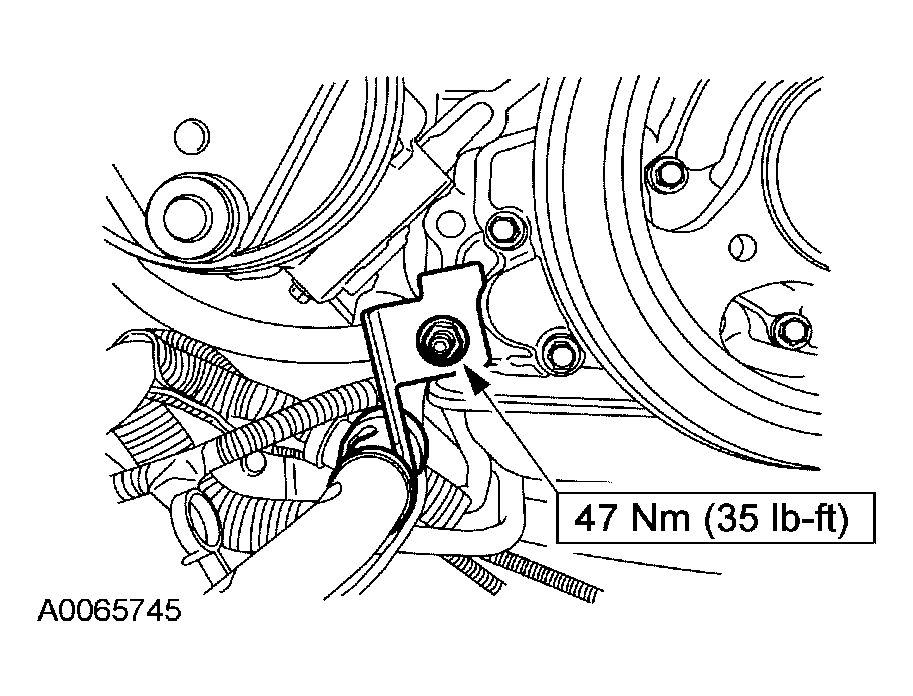

    Fig 6: Installing Battery Cable Bracket Nut With Torque Specifications
    G03906869Courtesy of FORD MOTOR CO.
  9. NOTE: Install a new O-ring on the coolant pump.
    Fig 7: Installing Coolant Pump Bolts With Torque Specifications
    G03887313Courtesy of FORD MOTOR CO.
  10. If removed, install the coolant pump and bolts.
  11. If removed, install the coolant pump pulley and bolts.
    Fig 8: Installing Coolant Pump Pulley Bolts With Torque Specifications
    G03887314Courtesy of FORD MOTOR CO.
  12. Install the accessory drive idler pulleys and bolts.
    Fig 9: Installing Accessory Drive Idler Pulleys Bolts With Torque Specifications
    G03887719Courtesy of FORD MOTOR CO.
  13. Install the accessory drive belt tensioner and bolts.
    Fig 10: Accessory Drive Belt Tensioner Bolt With Torque Specification
    G03887315Courtesy of FORD MOTOR CO.
  14. Position back the power steering pump and install the bolts.

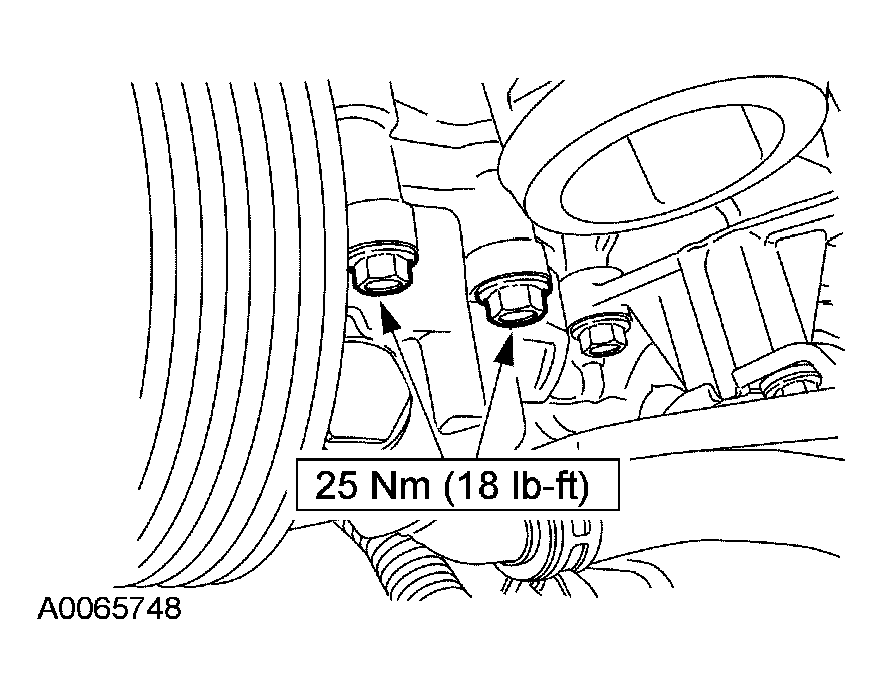

    Fig 11: Installing Bolts With Torque Specifications
    G03906874Courtesy of FORD MOTOR CO.
  15. Install the stator standoff bolt.

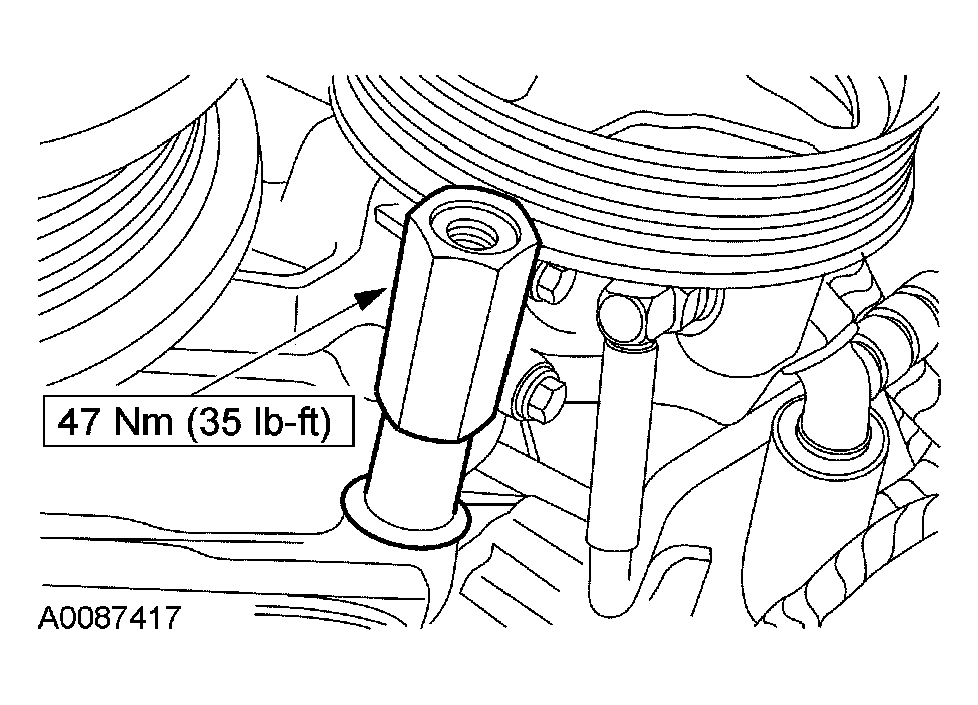

    Fig 12: Installing Stator Standoff Bolt With Torque Specifications
    G03906875Courtesy of FORD MOTOR CO.
  16. Connect the lower radiator coolant hose.

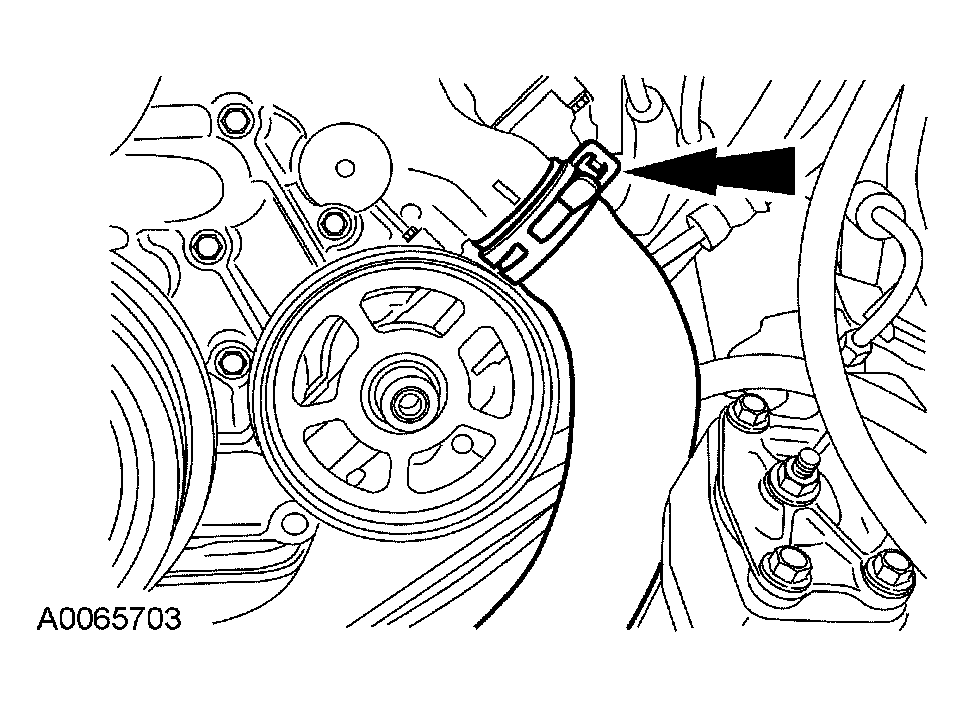

    Fig 13: Connecting Lower Radiator Coolant Hose
    G03906855Courtesy of FORD MOTOR CO.
  17. Connect the engine coolant hose.

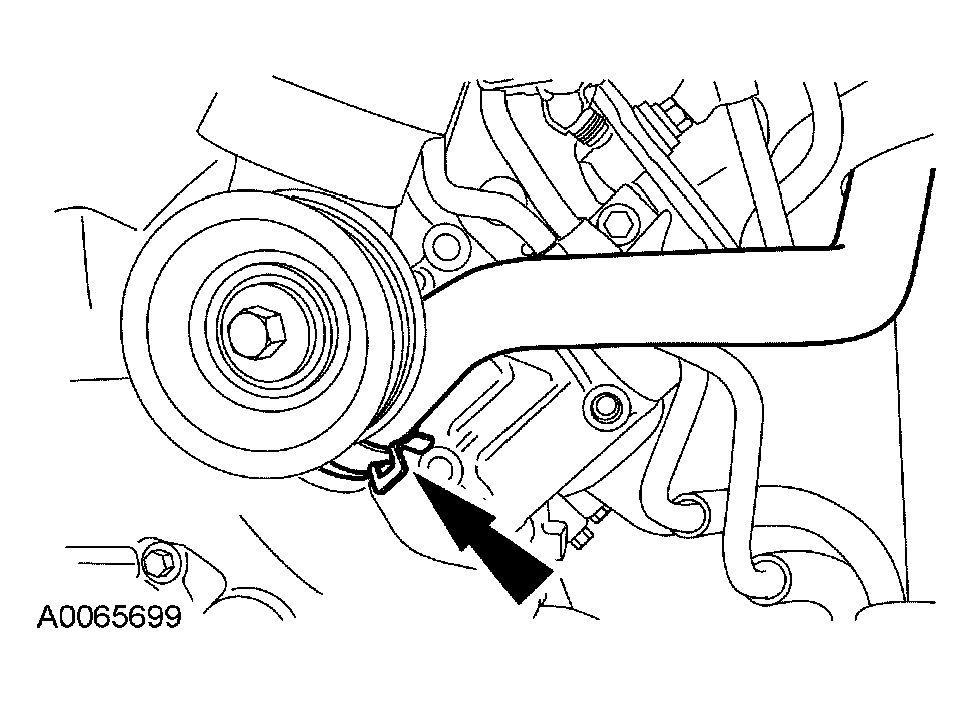

    Fig 14: Locating Heater Hose At Front Cover
    G03906854Courtesy of FORD MOTOR CO.
  18. NOTE: Install a new O-ring.
    Fig 15: Locating Stud Bolts And Thermostat Assembly With Torque Specification
    G03887322Courtesy of FORD MOTOR CO.
  19. If removed, install the thermostat housing and stud bolts.
  20. Early build vehicles

  21. Install the exhaust pressure bracket assembly and retaining nuts.
    Fig 16: Locating Retaining Nuts And Exhaust Backpressure Assembly With Torque Specification
    G03906879Courtesy of FORD MOTOR CO.
  22. Connect the exhaust pressure tube fitting at the exhaust manifold.
    Fig 17: Exhaust Pressure Tube Fitting With Torque Specification
    G03906880Courtesy of FORD MOTOR CO.
  23. All vehicles

  24. Install the intake manifold. For additional information, refer to INTAKE MANIFOLD  in this article.
