Disassembled Views

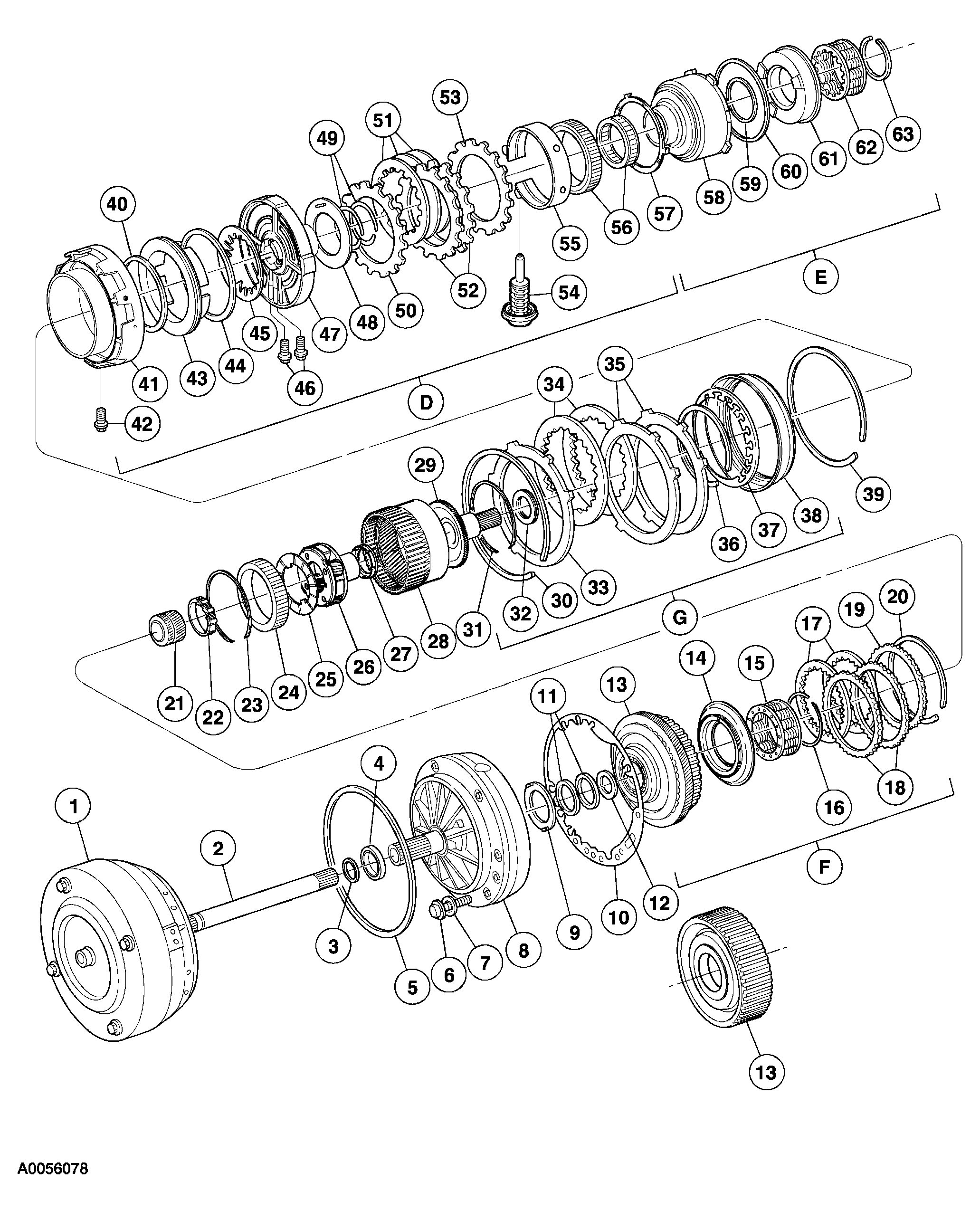

Fig 1: Exploded View Of Transmission (1 Of 7)

G03908138

Courtesy of FORD MOTOR CO.

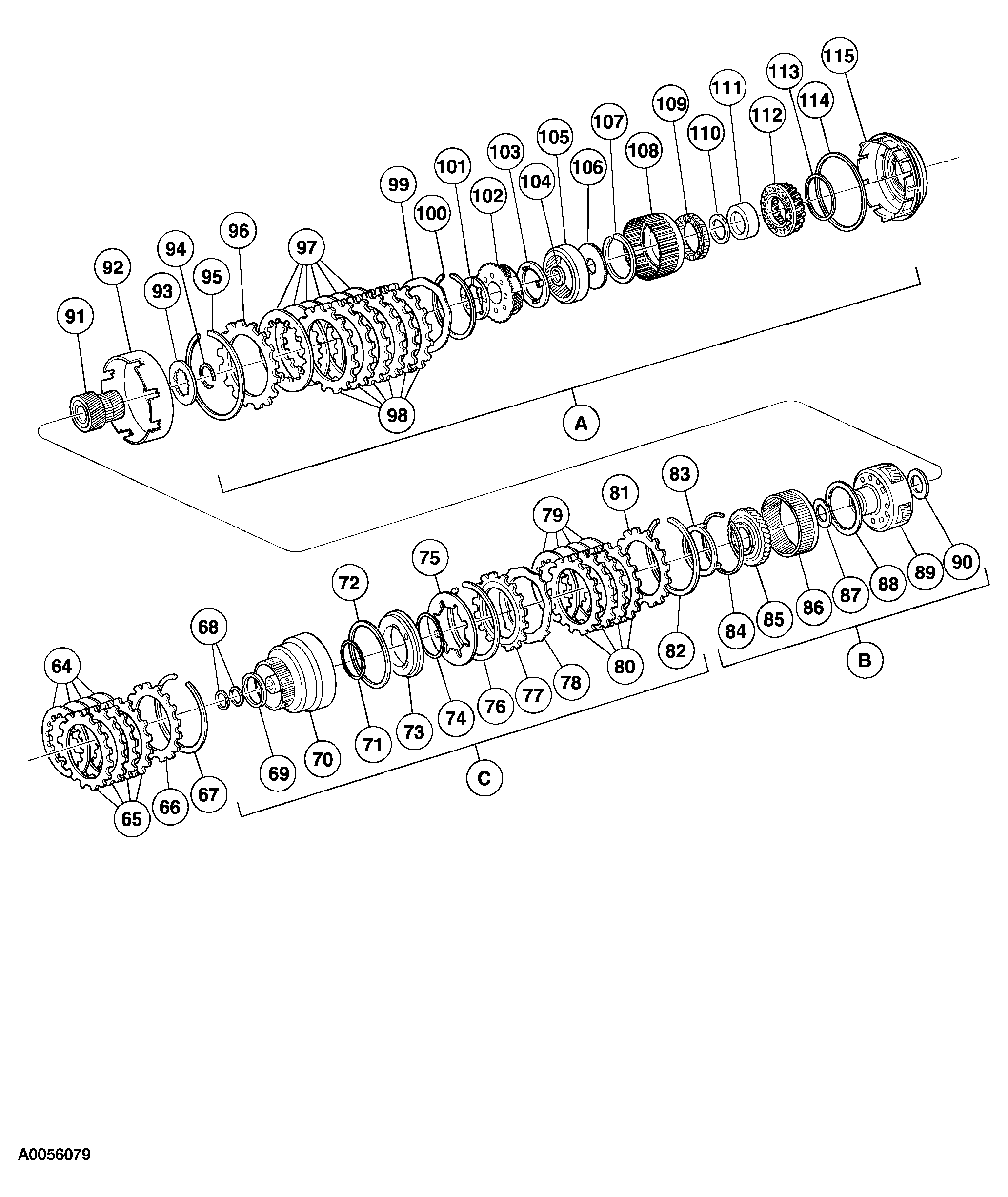

Fig 2: Exploded View Of Transmission (2 Of 7)

G03908139

Courtesy of FORD MOTOR CO.

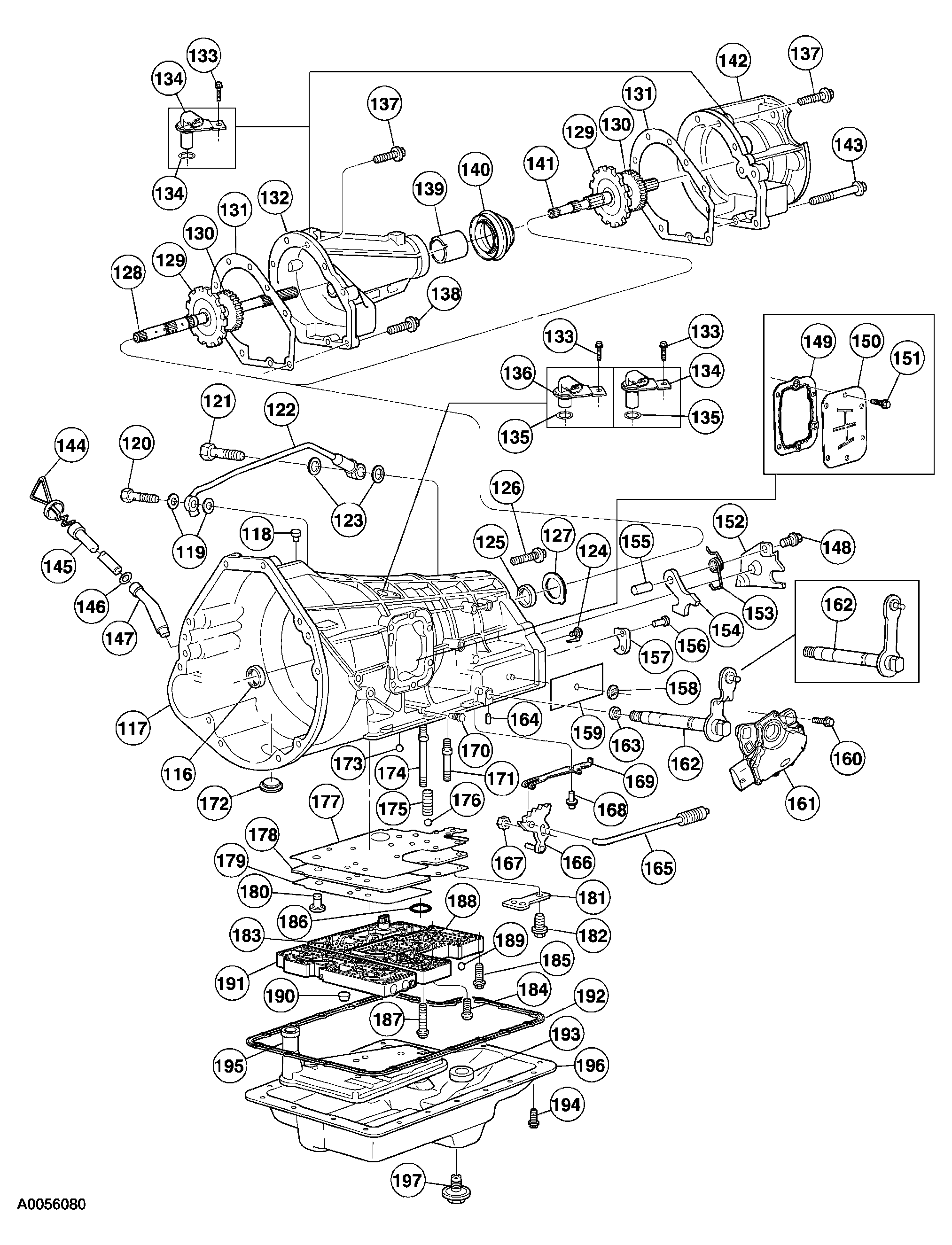

Fig 3: Exploded View Of Transmission (3 Of 7)

G03908140

Courtesy of FORD MOTOR CO.

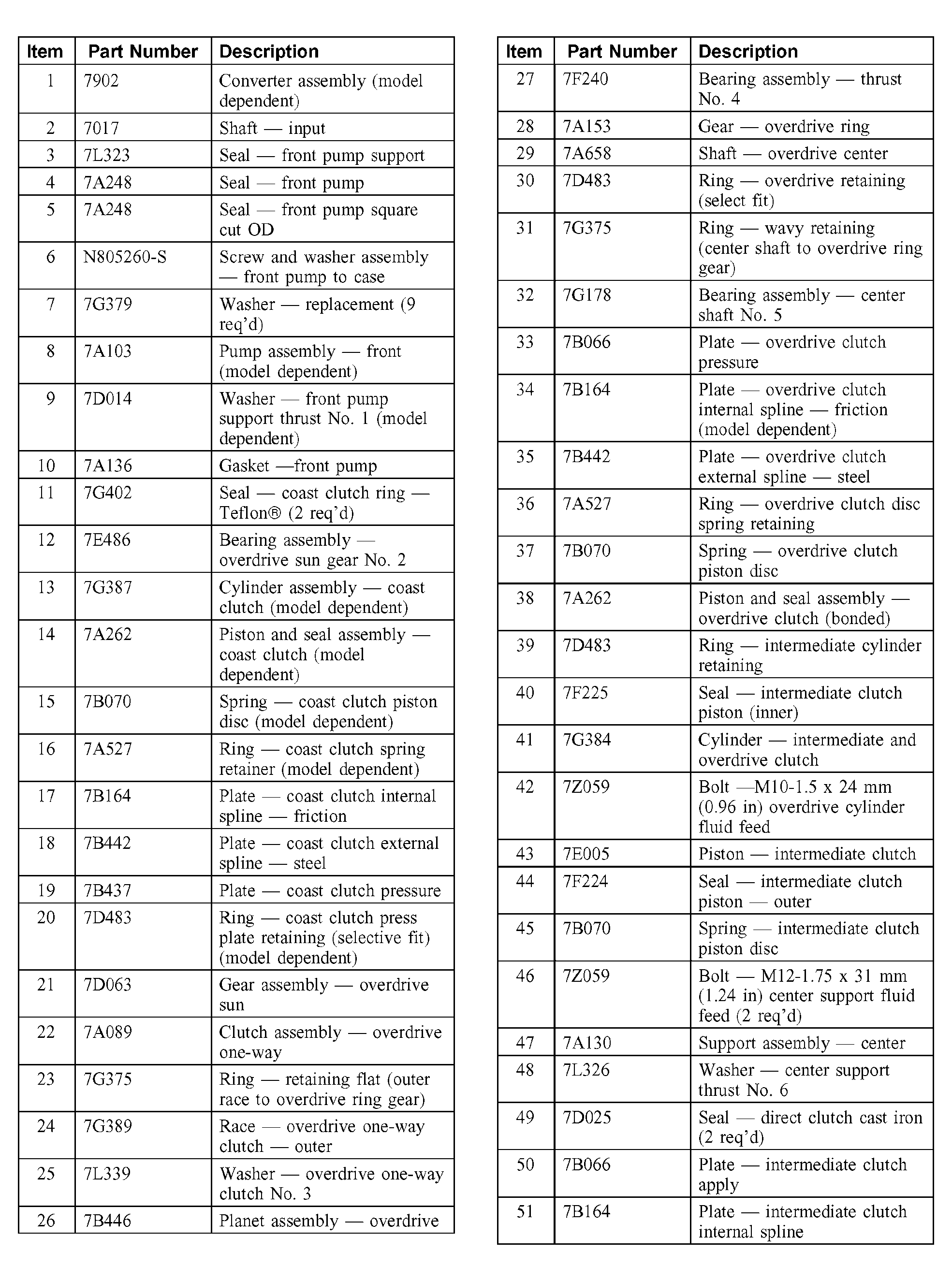

Fig 4: Exploded View Of Transmission (4 Of 7)

G03908141

Courtesy of FORD MOTOR CO.

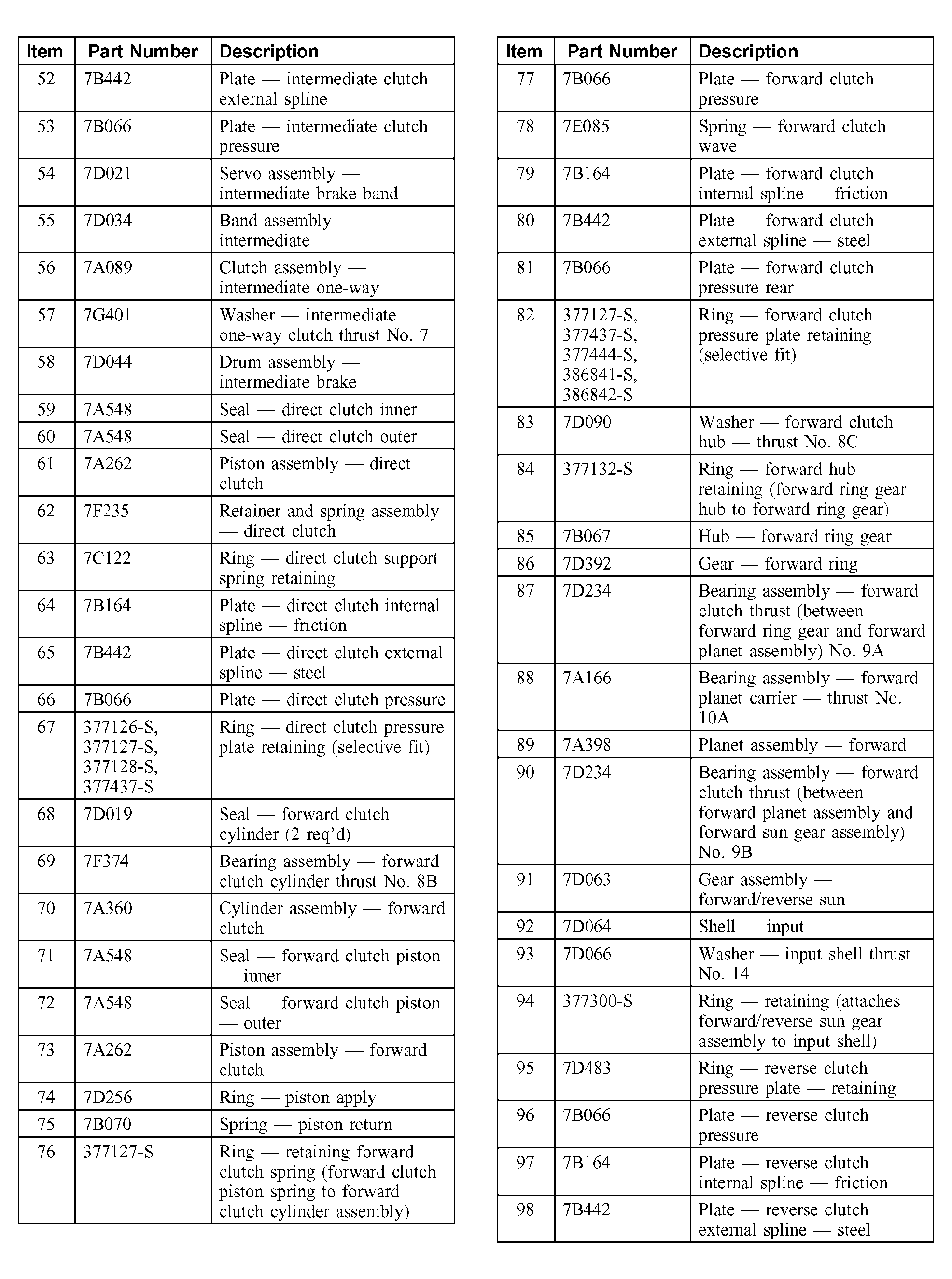

Fig 5: Exploded View Of Transmission (5 Of 7)

G03908142

Courtesy of FORD MOTOR CO.

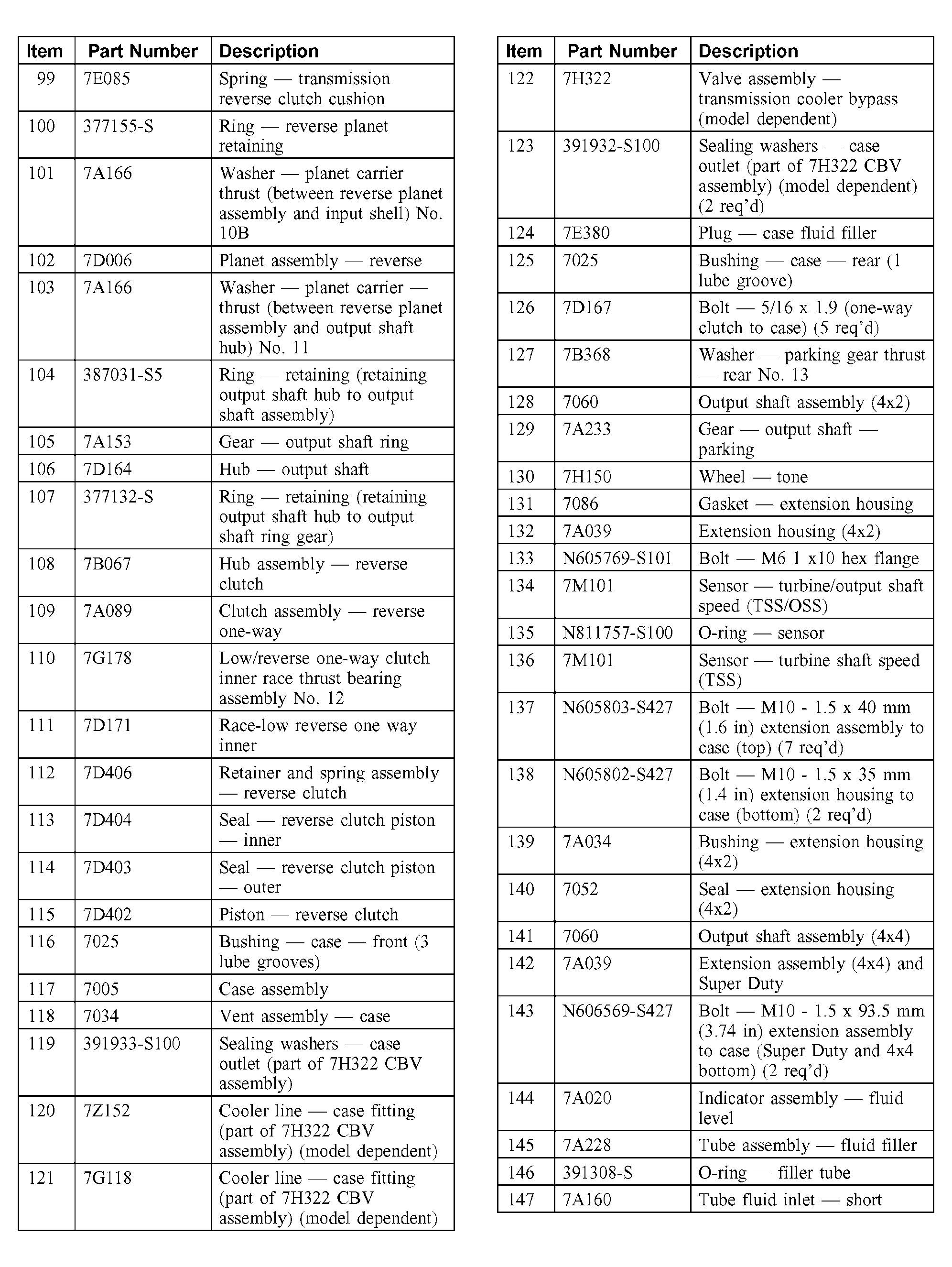

Fig 6: Exploded View Of Transmission (6 Of 7)

G03908143

Courtesy of FORD MOTOR CO.

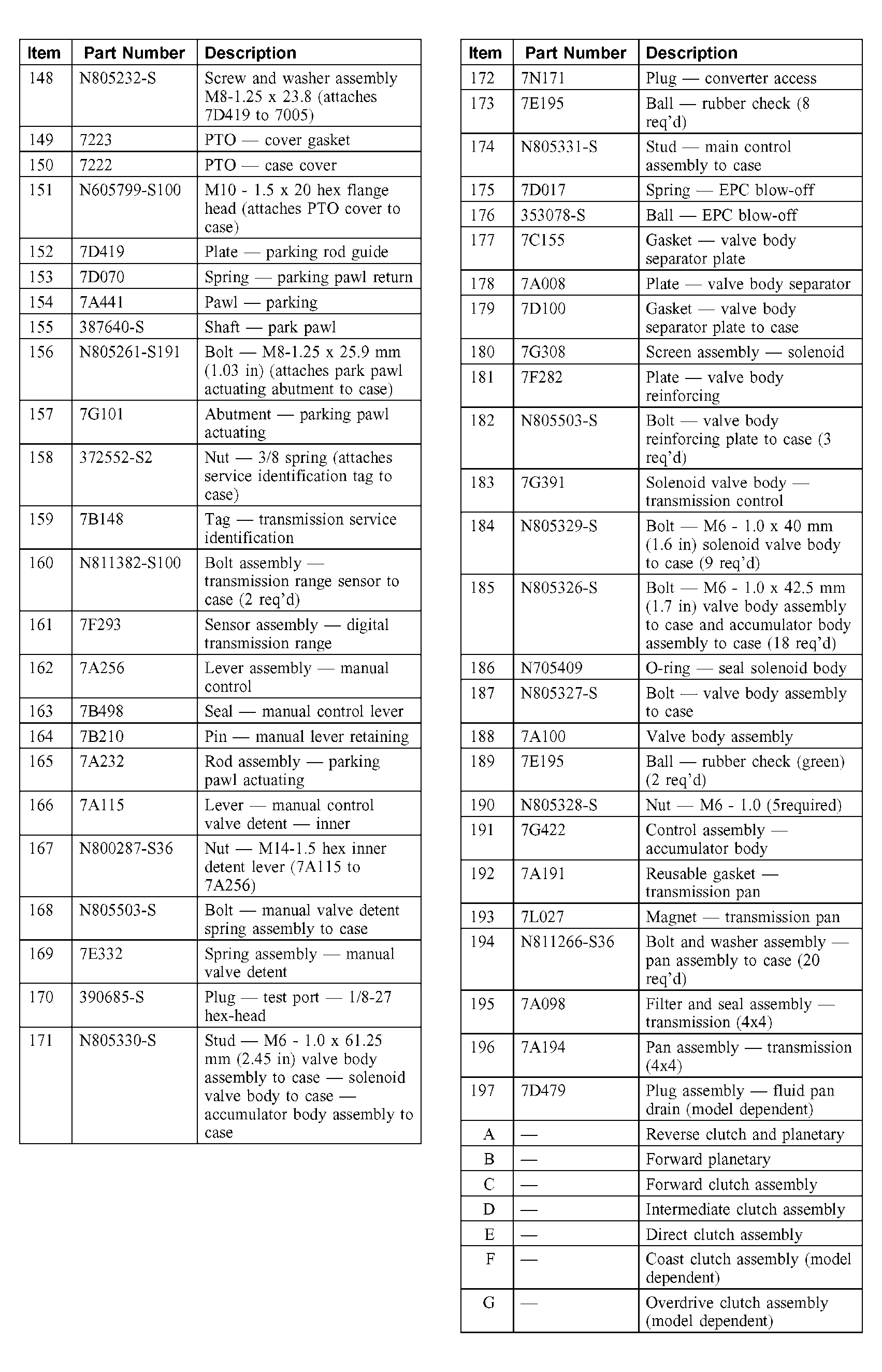

Fig 7: Exploded View Of Transmission (7 Of 7)

G03908144

Courtesy of FORD MOTOR CO.
