Main Components and Functions: Notes

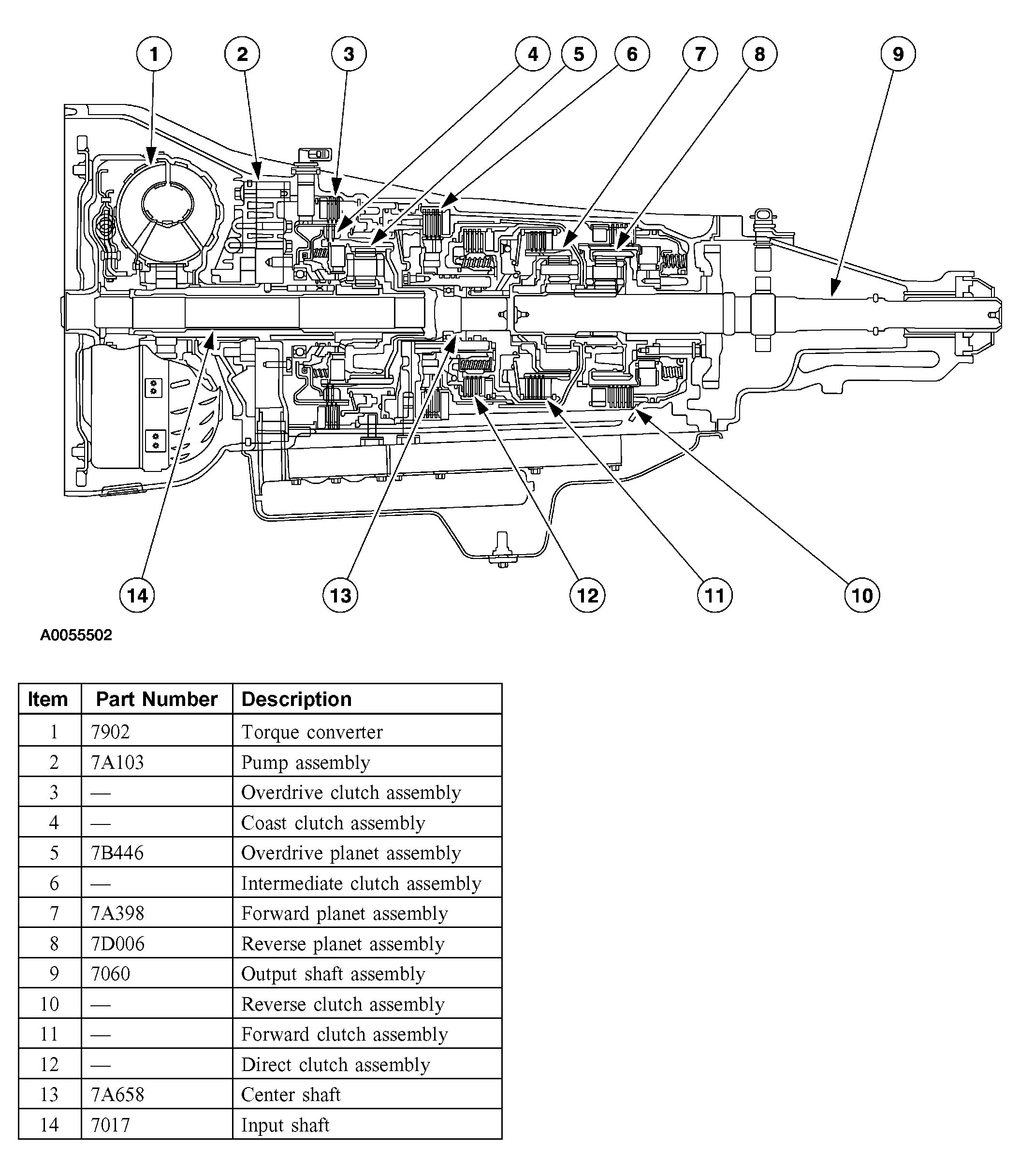

Fig 1: Identifying Automatic Transmission - Sectional View
G03908147Courtesy of FORD MOTOR CO.
