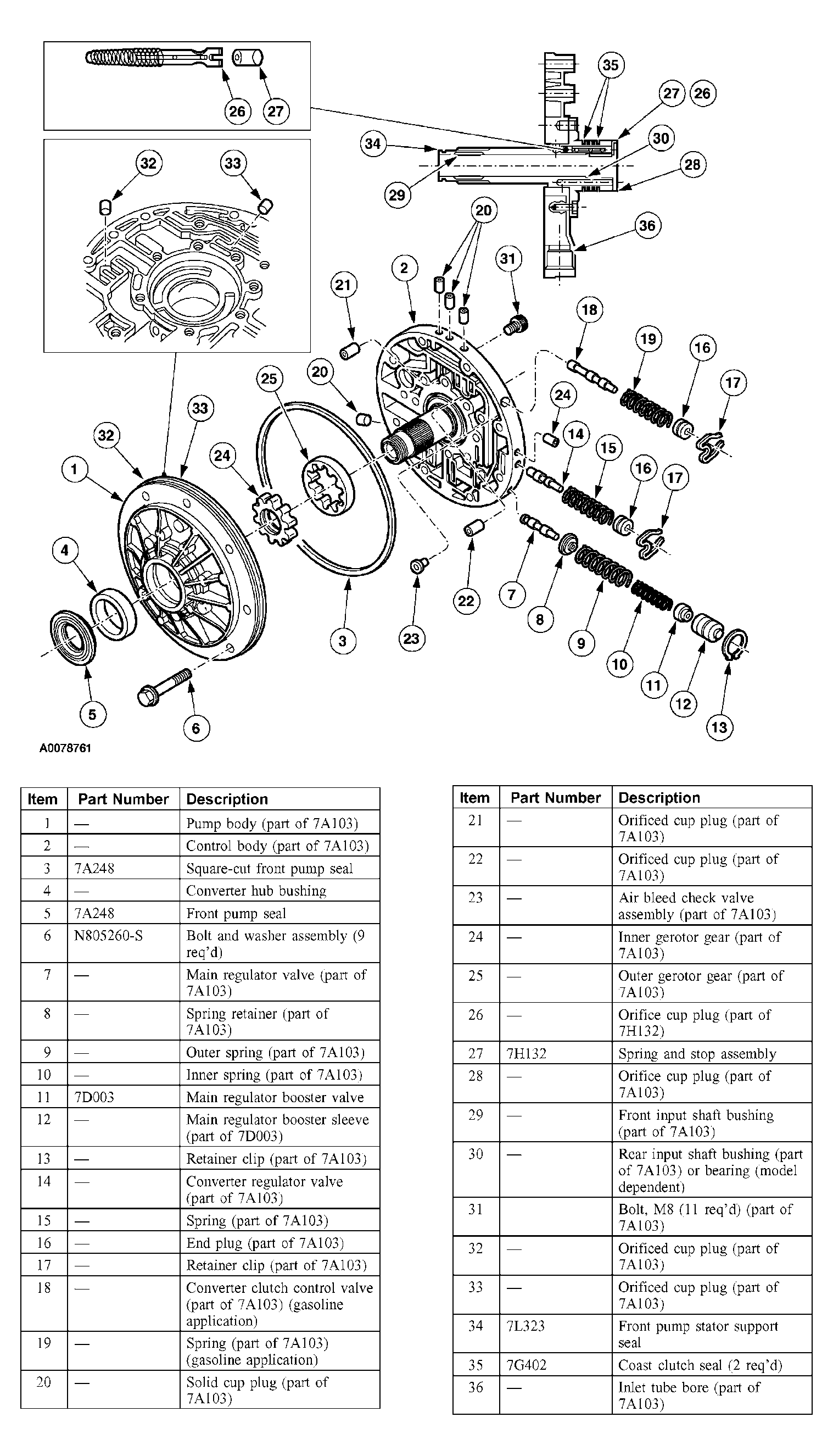

Pump Assembly: Notes
SPECIAL TOOL(S) CHART
| Installer, Front Pump Fluid Seal 307-014 (T63L-77837-A) |
|
|---|---|
| Slide Hammer 307-005 (T59L-100-B) |
|
| Banding Tool, Transmission Pump 307-D004 (D89L-77000-A) or equivalent |
|
| Remover, Bushing 307-001 (TOOL-1175-AC) or equivalent |
|
| Depth Micrometer 303-D026 (D80P-4201-A) or equivalent |
MATERIAL SPECIFICATION CHART
| Item | Specification |
|---|---|
| Motorcraft MERCON® Multi-Purpose (ATF) Transmission Fluid XT-2-QDX | MERCON® |
