Rear Case Bushings: Assembly

    NOTE: The rear case bushing has one lube groove. The front case bushing has three lube grooves.
    Fig 1: Assembling Special Tools
    G03908512Courtesy of FORD MOTOR CO.
  1. Assemble the special tools.
  2. Place the assembled special tools through the case and into the front case bushing.

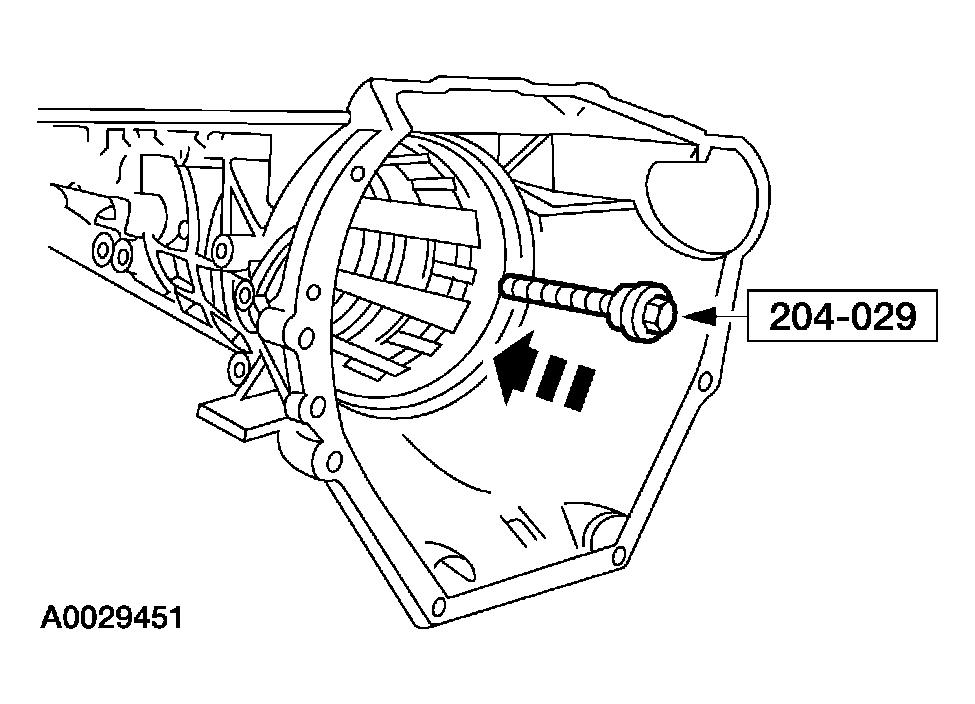

    Fig 2: Placing Assembled Special Tools
    G03908513Courtesy of FORD MOTOR CO.
    3. CAUTION: Make sure the bushing and tool are centered in the bore.

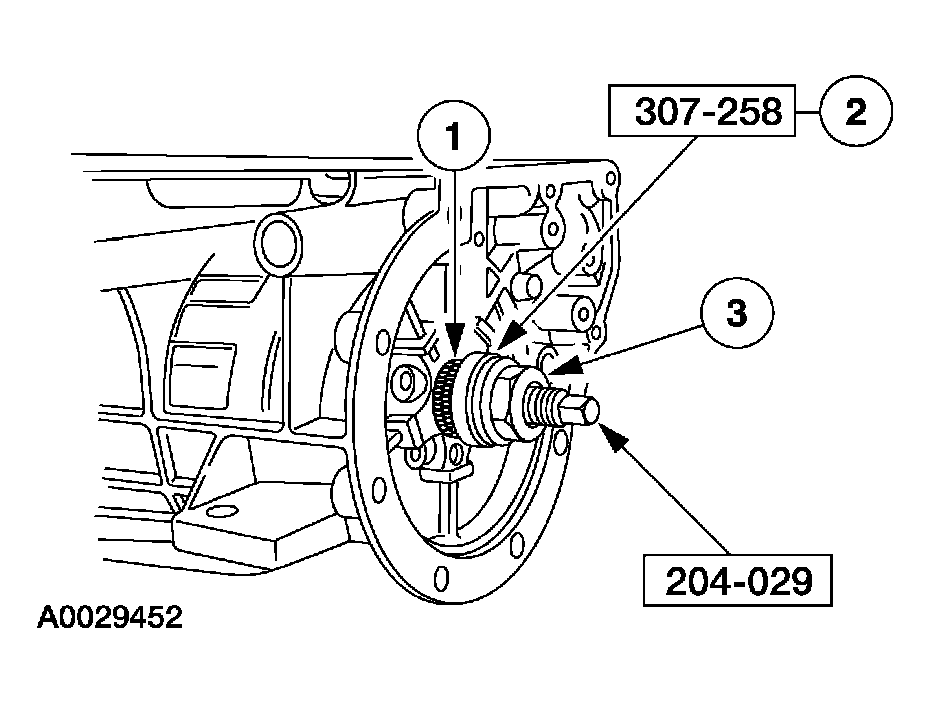

    Fig 3: Installing Washer And Nut
    G03908514Courtesy of FORD MOTOR CO.
  3. Install the rear case bushing.
    1. Install the rear case bushing over the special tool into the case.
    2. Install the special tool.
    3. Install the washer and the nut hand-tight.
  4. Hold the special tool while turning the nut until the rear case bushing is fully seated. Remove the tools.

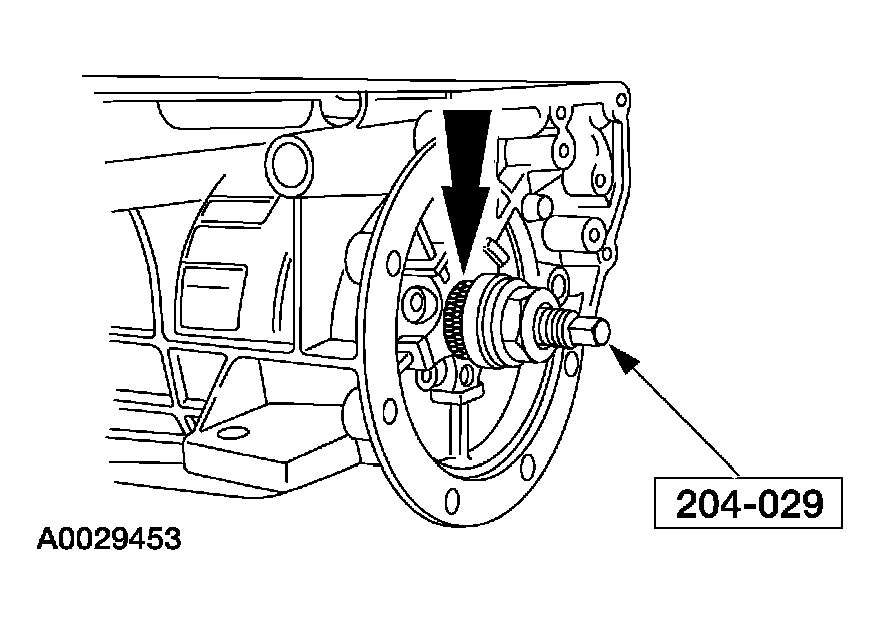

    Fig 4: Removing The Tools
    G03908515Courtesy of FORD MOTOR CO.
