Digital Transmission Range (TR) Sensor: Installation

Install the digital transmission range (TR) sensor.
1. Install digital transmission range (TR) sensor.
2. Loosely install the bolts.

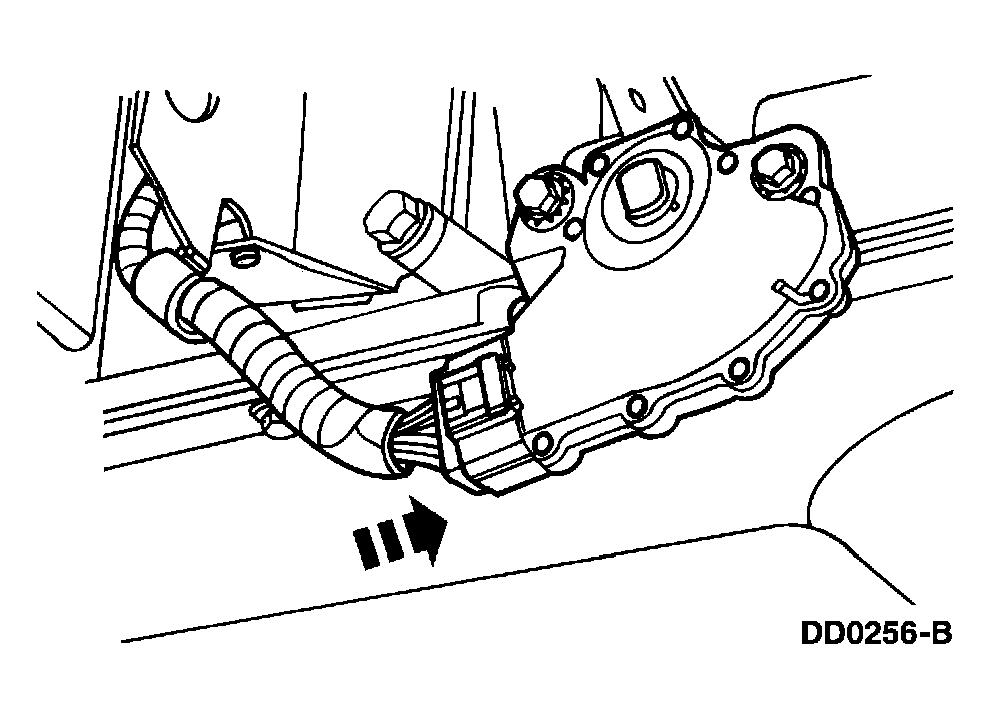

Fig 1: Installing Digital Transmission Range (TR) Sensor
Courtesy of FORD MOTOR CO.

NOTE: Make sure that the manual control lever is in the neutral position.

Fig 2: Aligning Digital TR Sensor

G03908335

Courtesy of FORD MOTOR CO.

Using the special tool, align the digital TR sensor. The tool is designed to fit snug.
Tighten the bolts.

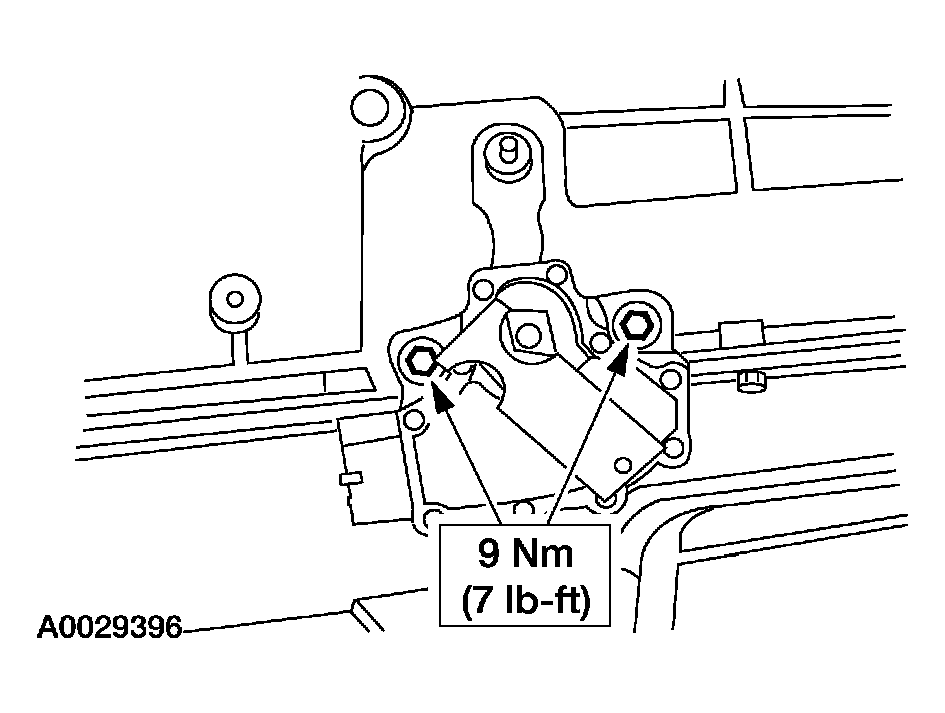

Fig 3: Tightening Digital TR Sensor Bolts With Torque Specifications
Courtesy of FORD MOTOR CO.
Reconnect the shift cable at the manual control lever.

Fig 4: Connecting Shift Cable At Manual Control Lever
Courtesy of FORD MOTOR CO.
Reconnect the connector.

Fig 5: Connecting Connector
Courtesy of FORD MOTOR CO.
