Park System: Installation

    NOTE: If the installation of a new park gear is required, Refer to OUTPUT SHAFT - CHECK  in this article.

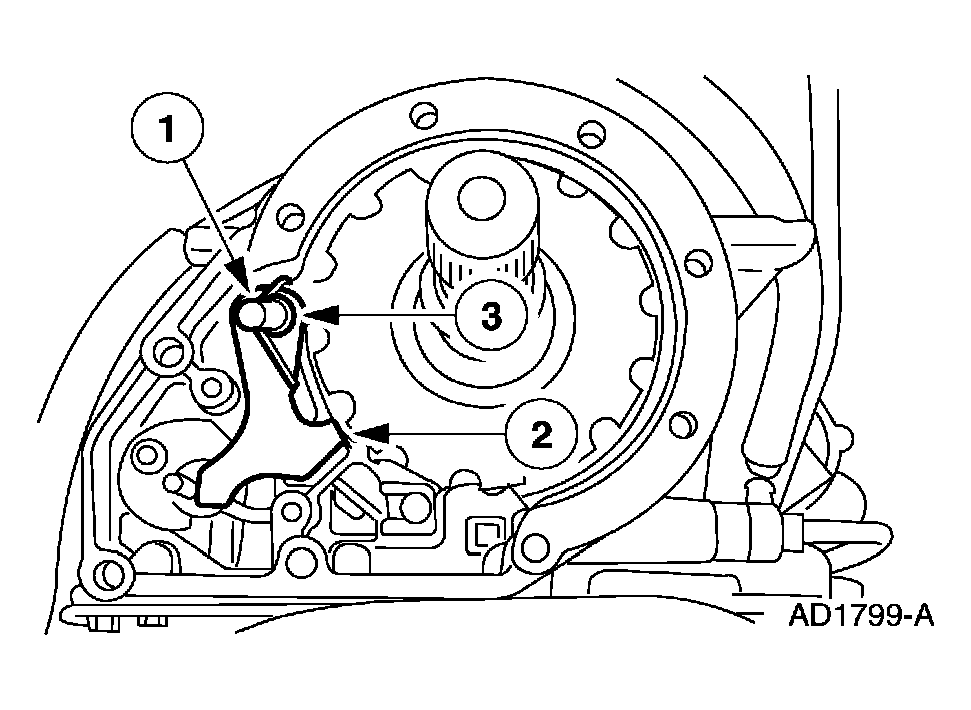

    Fig 1: Locating Park Pawl Shaft
    G03908359Courtesy of FORD MOTOR CO.
  1. Install the park pawl shaft.
    1. Install the park pawl shaft.
    2. Install the park pawl.
    3. Install the park pawl return spring.
  2. Install the parking rod guide plate.
    1. Install the parking rod guide plate.
    2. Install the bolts.

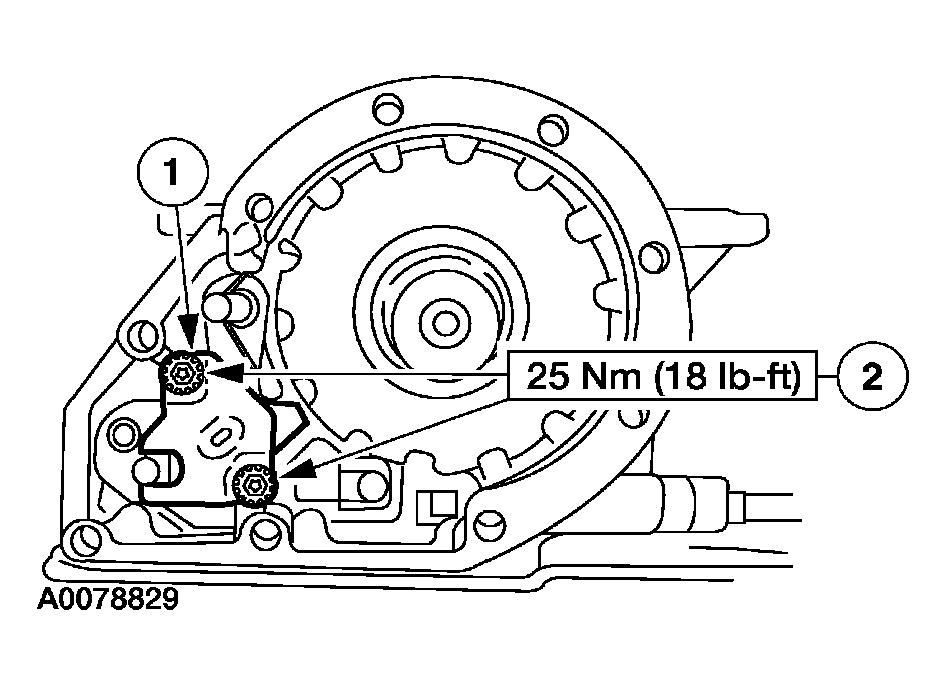

    Fig 2: Locating Parking Rod Guide Plate With Torque Specifications
    G03908360Courtesy of FORD MOTOR CO.
  3. Install the extension housing gasket and the extension housing.
