Park System: Removal

NOTE: For internal park mechanism service, Refer to MANUAL CONTROL LEVER SHAFT AND SEAL in this article.

Remove the extension housing and the extension housing gasket. For additional information, Refer to EXTENSION HOUSING GASKET in this article.
Remove the parking rod guide plate.
1. Remove the bolts.
2. Remove the parking rod guide plate.

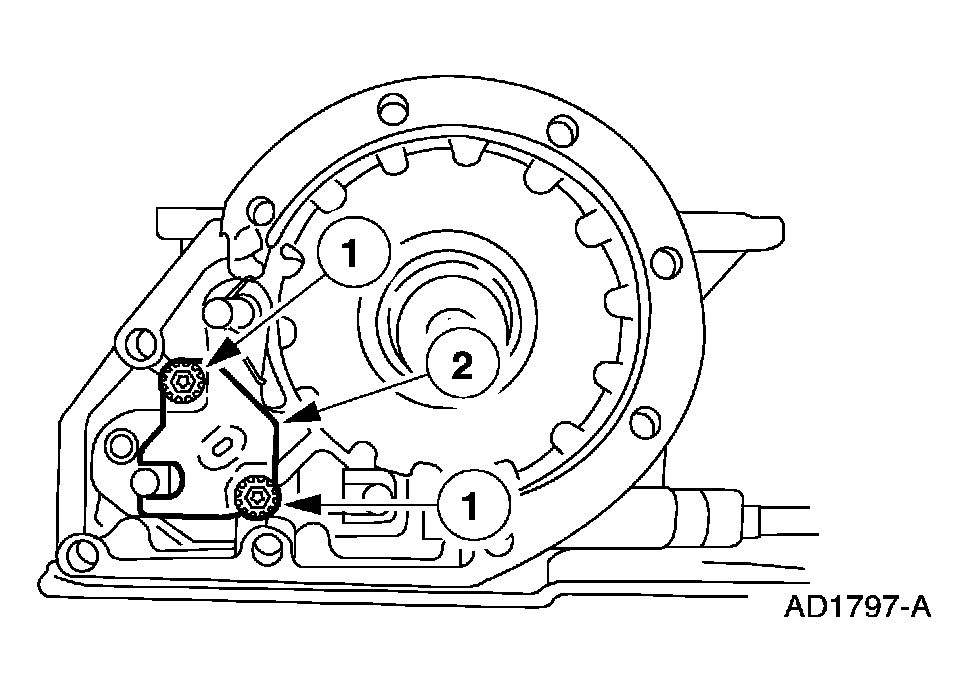

Fig 1: Locating Parking Rod Guide Plate
Courtesy of FORD MOTOR CO.

NOTE: If the installation of a new park gear is required, Refer to OUTPUT SHAFT - CHECK in this article.

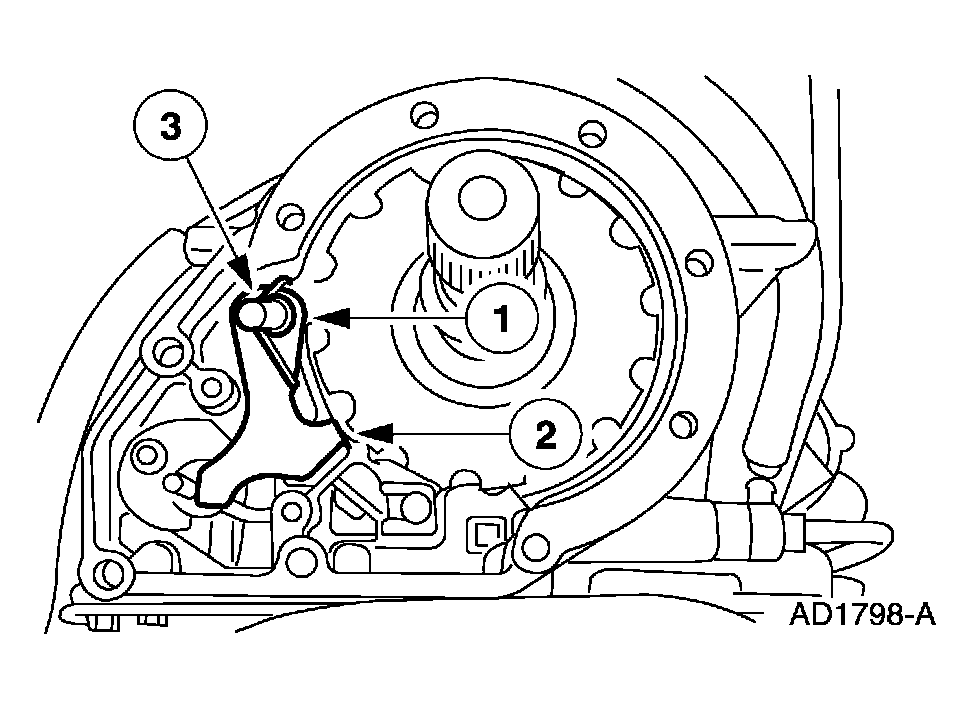

Fig 2: Locating Park Pawl Shaft

Courtesy of FORD MOTOR CO.

Remove the park pawl shaft.
1. Remove the park pawl return spring.
2. Remove the park pawl.
3. Remove the park pawl shaft.
