Automatic Transmission - 5R110W
›
Description And Operation
›
Main Components and Functions
›
Automatic Transmission - Sectional View
Automatic Transmission - Sectional View

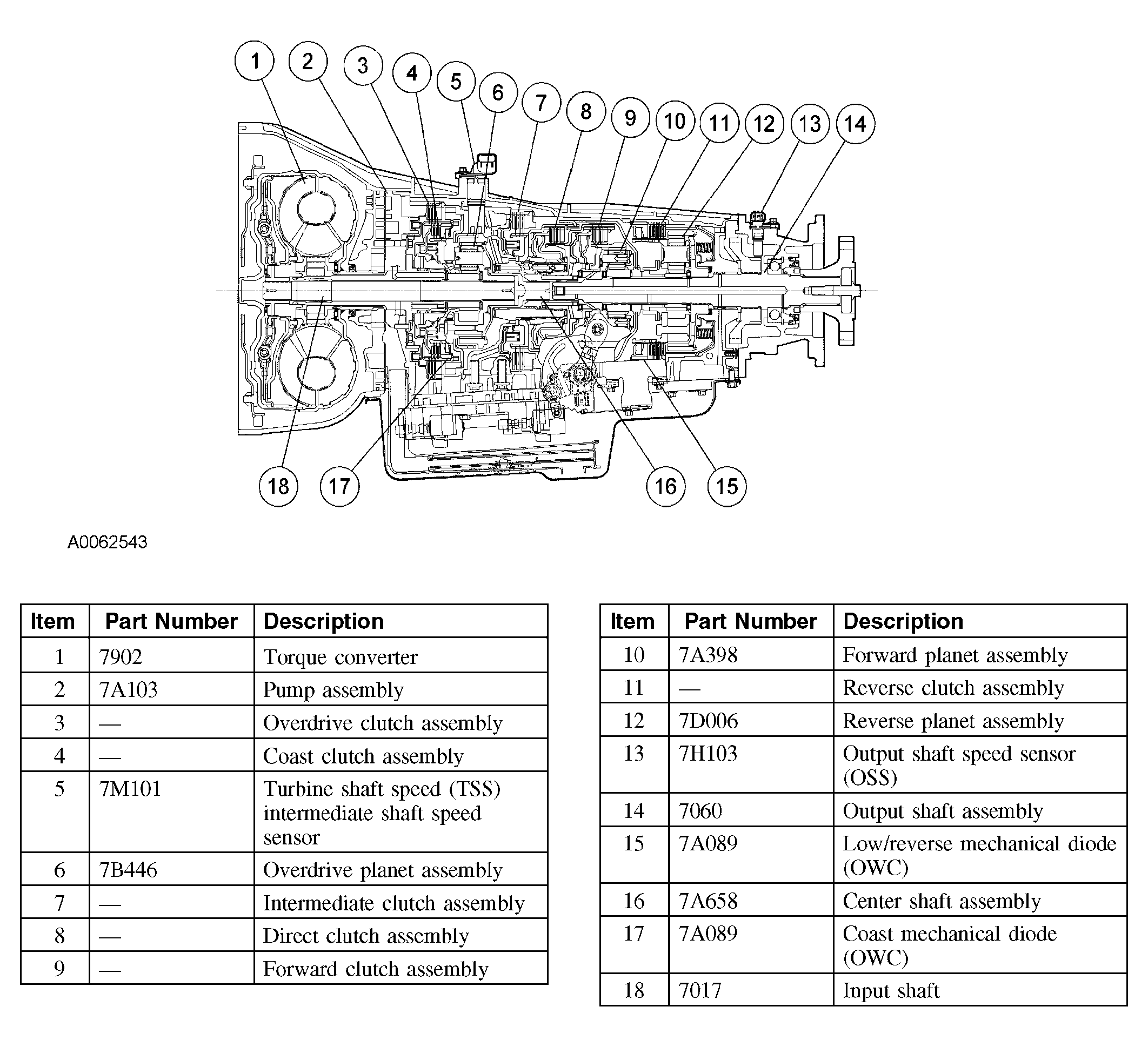

Fig 1: Sectional View Automatic Transmission
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
