Forward Geartrain - Assembly: Assembly

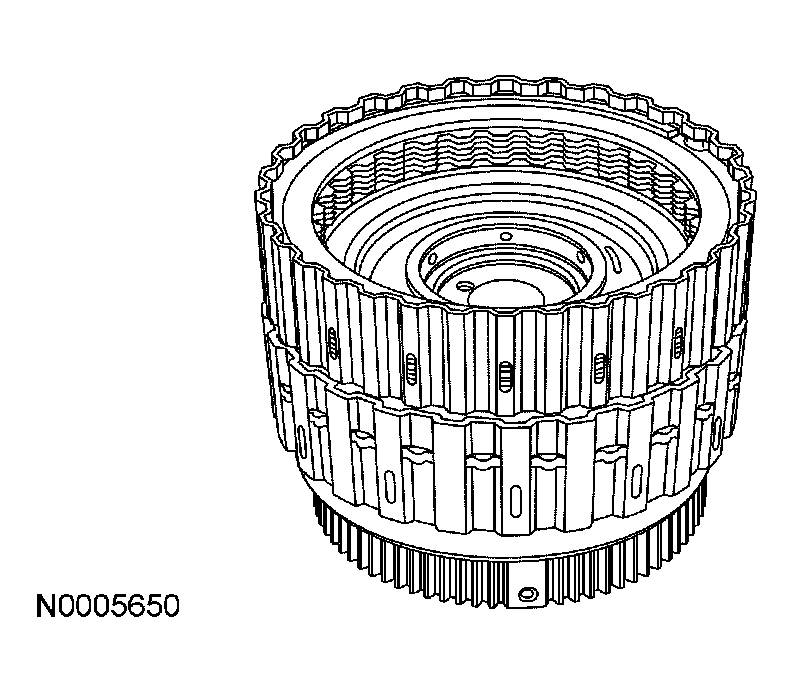

Install the forward clutch assembly into the direct clutch assembly.

Fig 1: Installing Forward Clutch Assembly Into Direct Clutch Assembly
Courtesy of FORD MOTOR CO.

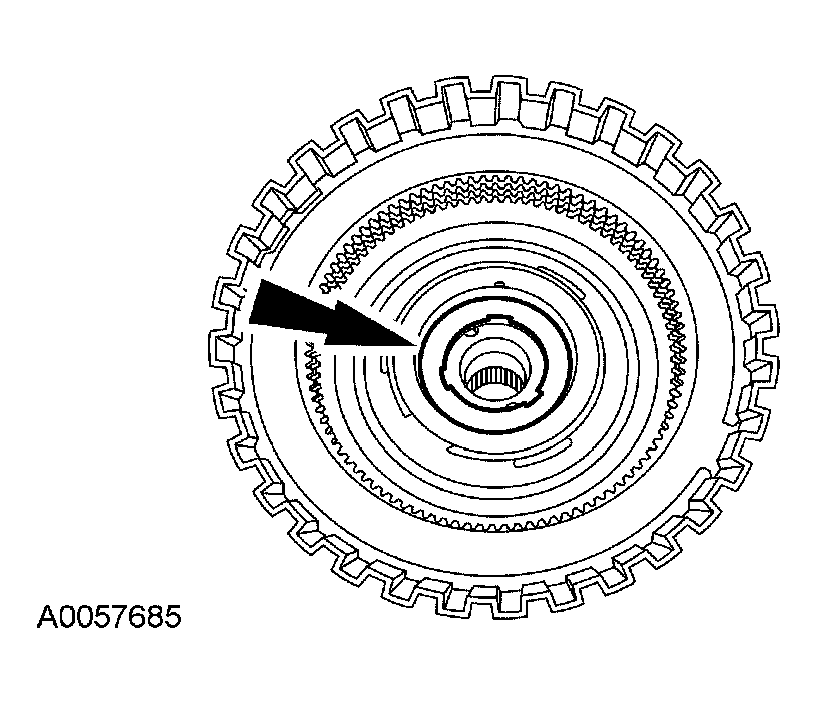

Install the No. 9 forward clutch bearing.

Fig 2: Installing Forward Clutch Bearing
Courtesy of FORD MOTOR CO.

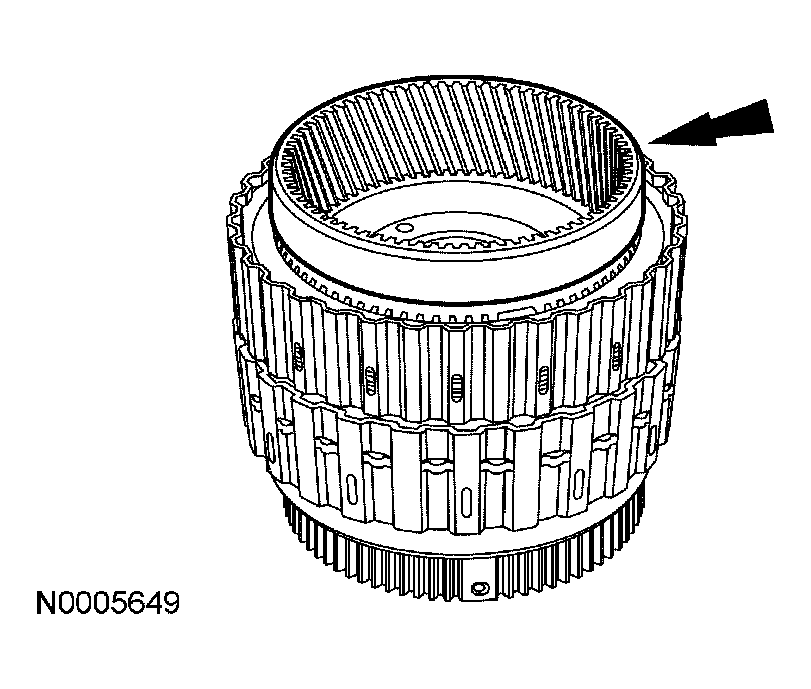

Install the forward hub and ring gear assembly.

Fig 3: Installing Forward Hub And Ring Gear Assembly
Courtesy of FORD MOTOR CO.

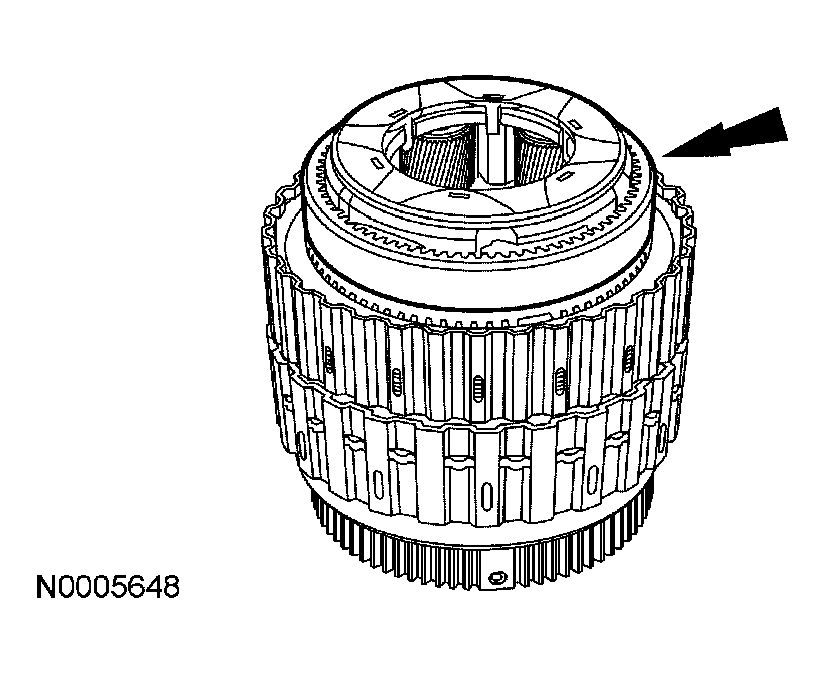

Install the planet carrier and bearing assembly.

Fig 4: Installing Planet Carrier And Bearing Assembly
Courtesy of FORD MOTOR CO.

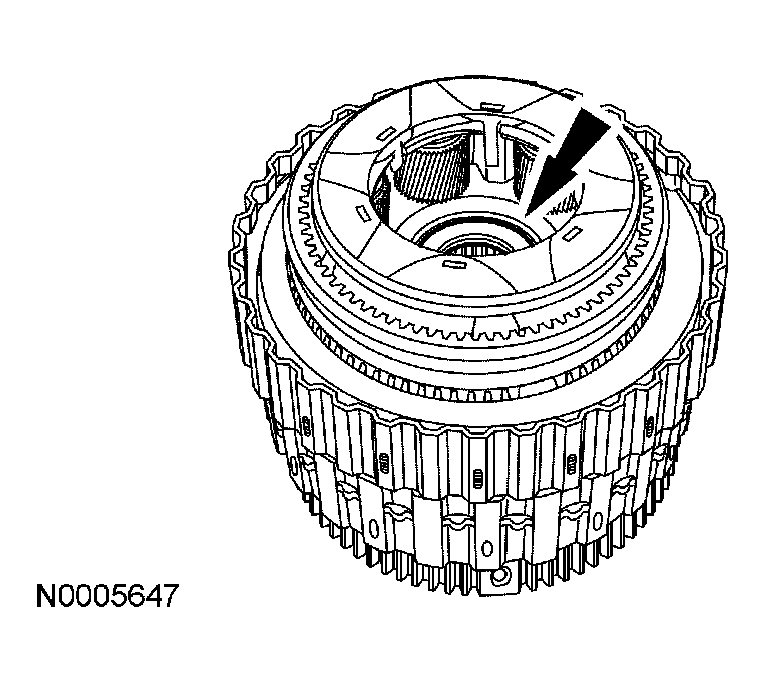

Install the No. 12 thrust bearing onto the forward carrier assembly.

Fig 5: Installing Thrust Bearing Onto Forward Carrier Assembly
Courtesy of FORD MOTOR CO.
Install the input shell assembly.
- Make sure the tab is engaged in the forward clutch assembly.
Fig 6: Identifying Forward Clutch Assembly
Courtesy of FORD MOTOR CO.

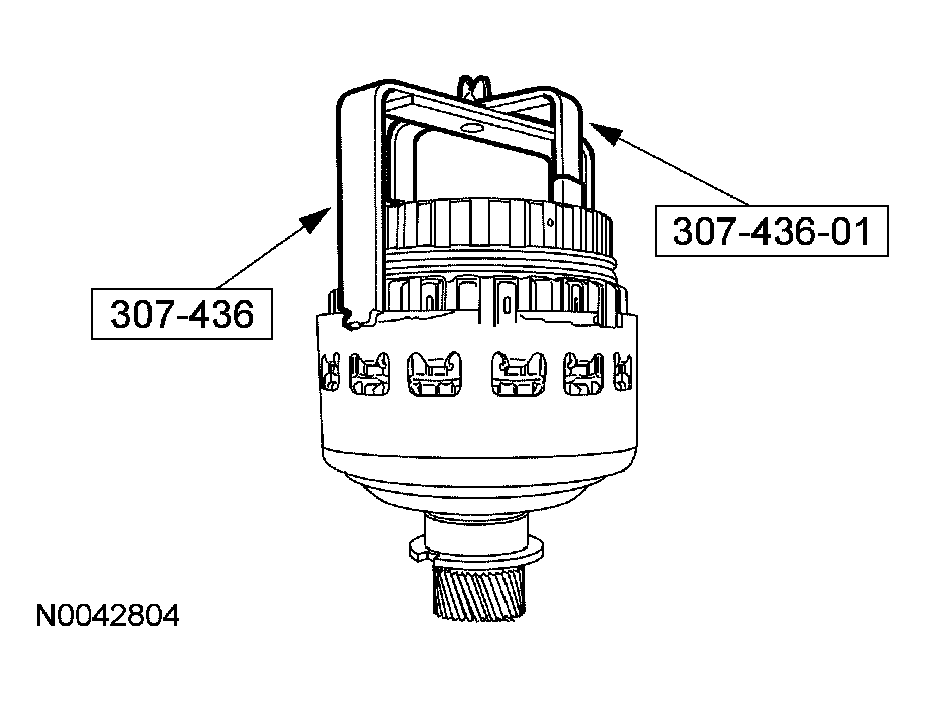

For early production vehicles, Install the special tools. Position aside to use during transmission assembly.

Fig 7: Installing Special Tools Transmission Assembly
Courtesy of FORD MOTOR CO.

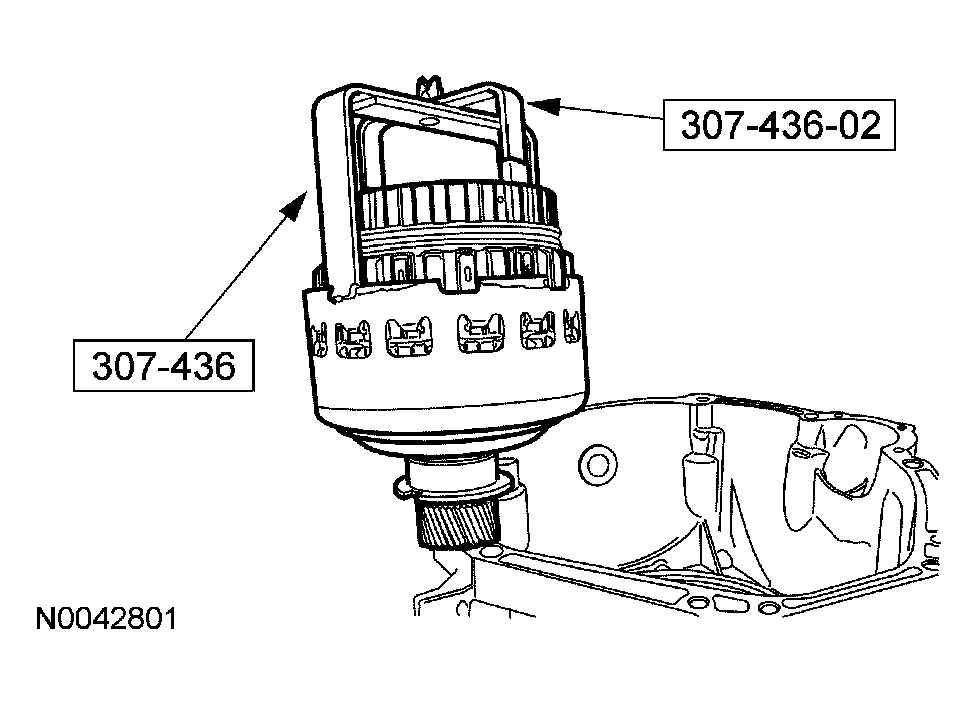

For late production vehicles, install the special tools. Position aside to use during transmission assembly.

Fig 8: Installing Special Tools Position During Transmission Assembly
Courtesy of FORD MOTOR CO.
