Output Shaft - Check: Check

CAUTION: Buildup of contamination can block the flow of lubricant behind the cup plug and cause transmission assembly damage.

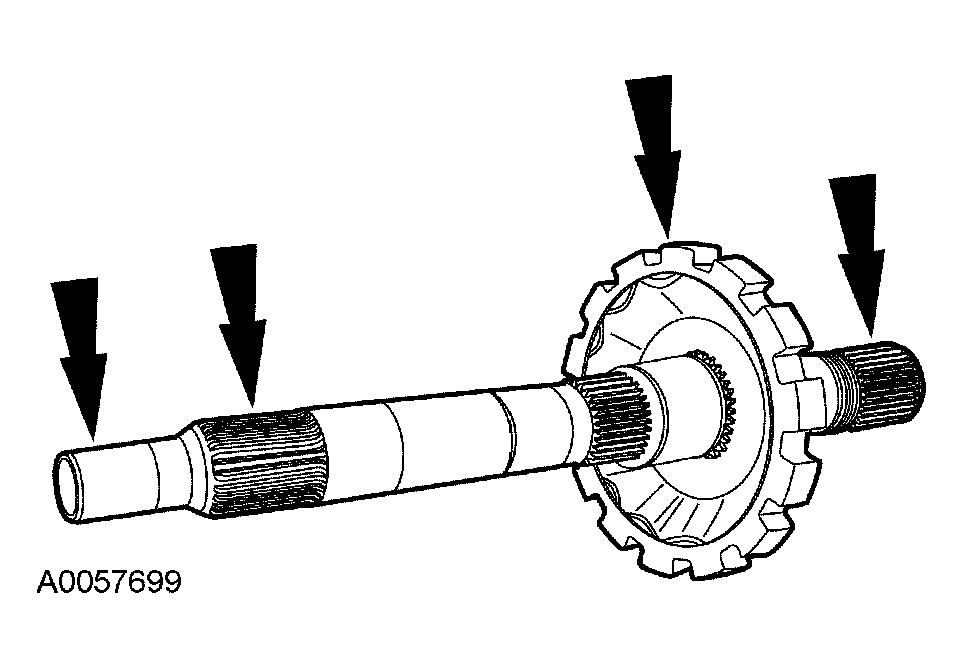

Fig 1: Checking Splines On Output Shaft For Wear

Courtesy of FORD MOTOR CO.

Inspect the output shaft for damage. If damage is found, Install a new shaft.
- Inspect the output shaft.
- Inspect the park and output shaft speed (OSS) sensor gear.
- Inspect the bearing surfaces of the output shaft for wear or scores. If excessive wear or scoring is found, install a new output shaft and inspect the mating components.
- Check the splines on the output shaft for wear. Install a new output shaft if the splines are excessively worn.
Remove the park gear.

Fig 2: Removing Park Gear
Courtesy of FORD MOTOR CO.
Inspect the park and output shaft speed (OSS) sensor gear.

Fig 3: Inspecting Park And Output Shaft Speed (OSS) Sensor Gear
Courtesy of FORD MOTOR CO.
Inspect the output shaft. Make sure the lube passages through the output shaft are clean and free of foreign material. Install a new output shaft as required.

Fig 4: Inspecting Output Shaft
Courtesy of FORD MOTOR CO.
Inspect the orifice cup plug on the end of the output shaft for foreign material, if foreign material is found, remove the orifice plug, flush out the foreign material and install a new orifice plug.

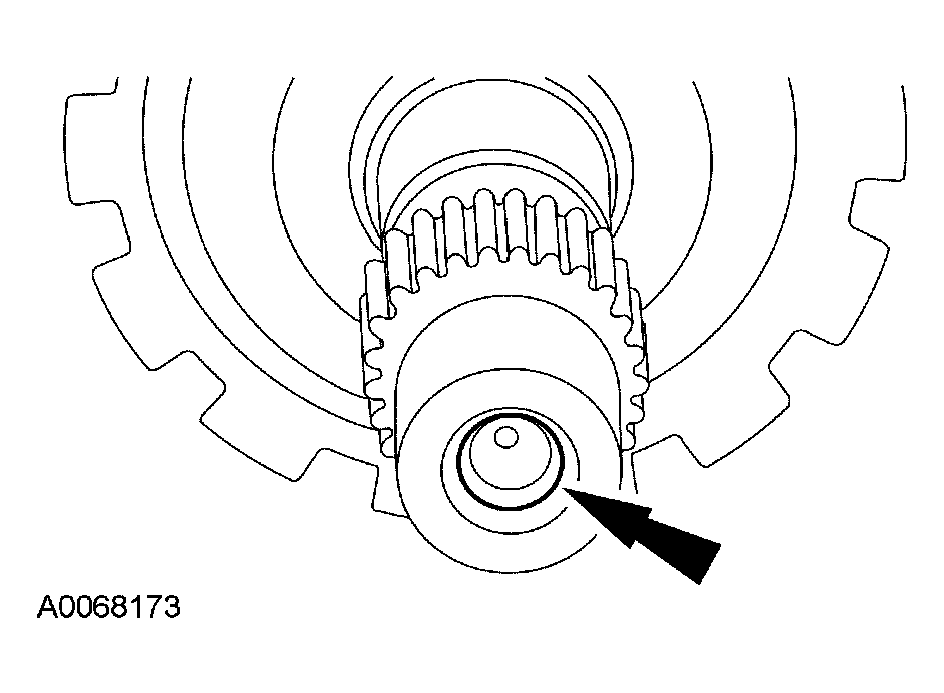

Fig 5: Inspecting Orifice Cup Plug On End Of Output Shaft For Foreign Material
Courtesy of FORD MOTOR CO.
