Internal Harness Service: Installation

  1. Push the bulkhead connector through the transmission solenoid body, twist it to lock it in place.
  2. Connect the internal wiring harness.
    1. Install the two screws.
    2. Connect the transmission fluid temperature sensor electrical connector.
    3. Connect the solenoid electrical connectors.

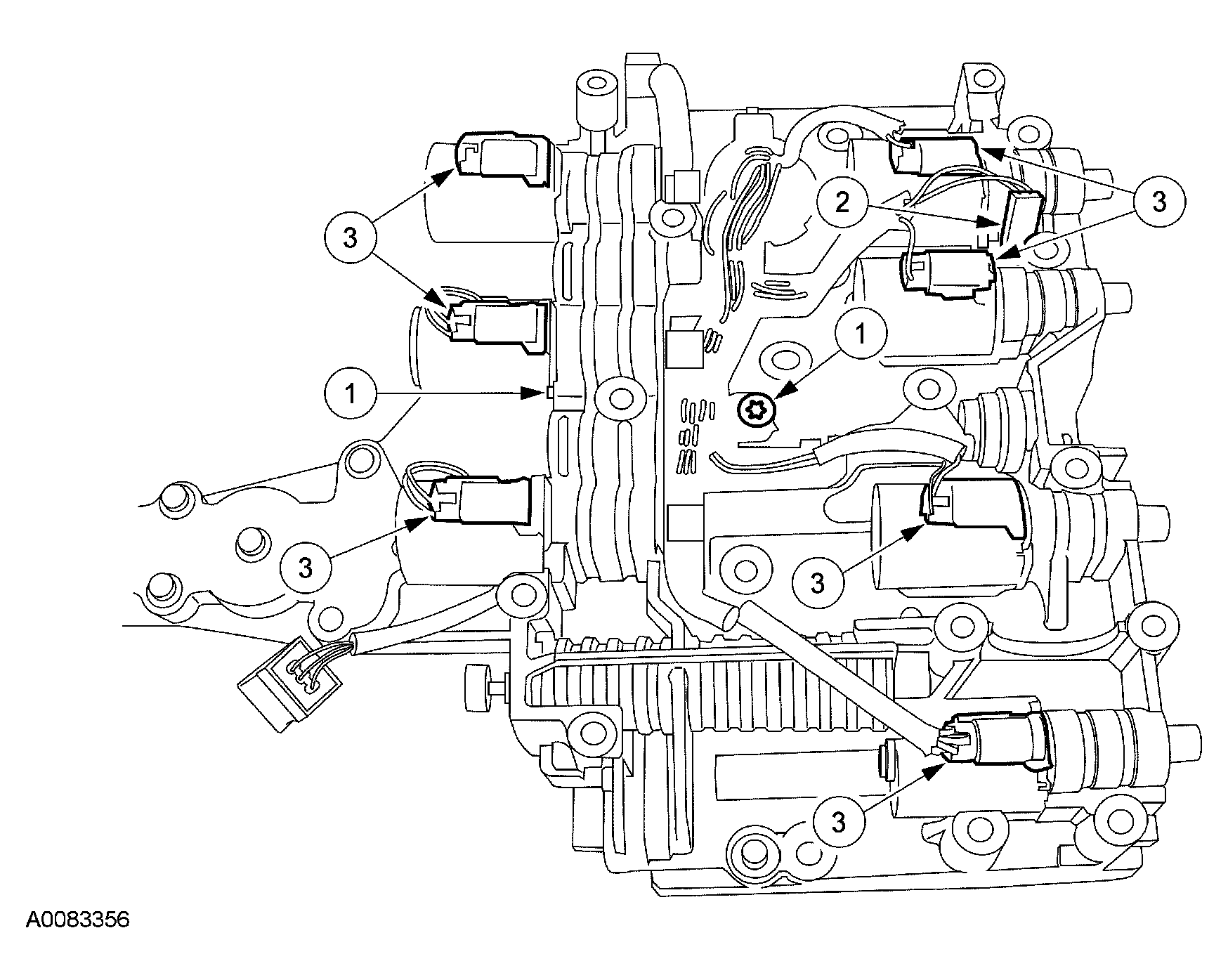

    Fig 1: Connecting Solenoid Electrical Connectors
    G03889119Courtesy of FORD MOTOR CO.
    3. NOTE: The O-ring must be installed in the top slot.
    Fig 2: Installing A New Solenoid Body Bulkhead Connector O-Ring
    G03889120Courtesy of FORD MOTOR CO.
  3. Install a new solenoid body bulkhead connector O-ring.
  4. Install the solenoid body.
