Line Pressure Control Solenoid - PC-A: Installation

  1. Assemble the main control valve body.
    1. Install the pressure control solenoid (PC-A) and install the (E) retaining clip.
    2. Push the bulkhead connector through the solenoid body and twist the bulkhead connector locking it into place
    3. Install the shift solenoid (SSPC-C) back into place and install the (E) retaining clip.
    4. Connect the electrical connectors to the pressure control solenoid (PC-A) and the shift solenoid (SSPC-C).
    5. Install the wire harness to solenoid body and tighten the bolts.

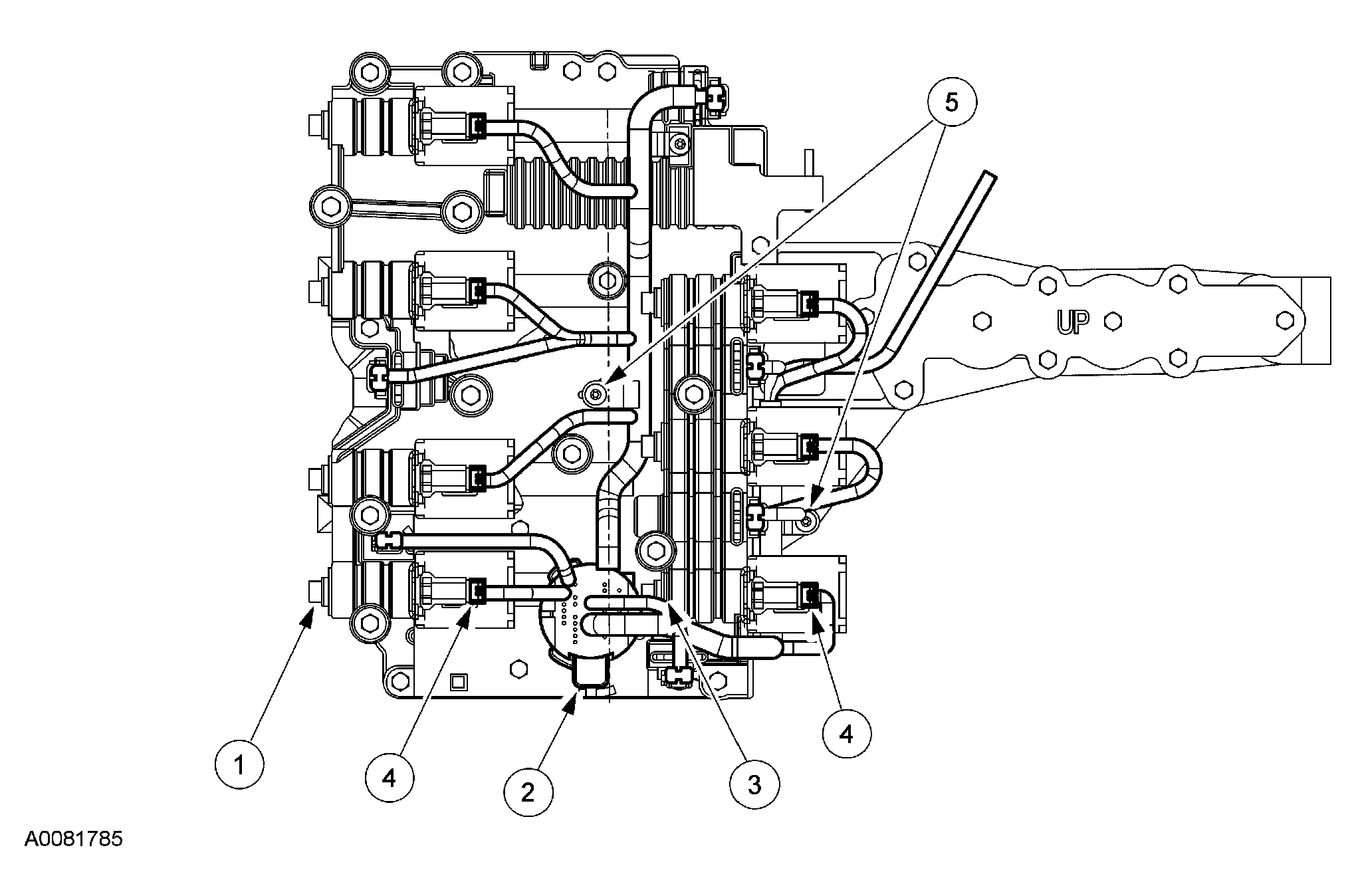

    Fig 1: Installing Wire Harness To Solenoid Body
    G03889081Courtesy of FORD MOTOR CO.
  2. Remove the solenoid body electrical connector O-ring seal.
    Fig 2: Locating Solenoid Body Electrical Connector O-Ring Seal
    G03889078Courtesy of FORD MOTOR CO.
  3. Install the transmission main control valve body. For additional information, refer to SOLENOID BODY ASSEMBLY  in this article.
