Center Support: Assembly
- Follow the disassembly procedure in reverse order.
- Lightly lubricate the thrust washer with petroleum jelly to hold it in place during assembly.
- Install new seals.

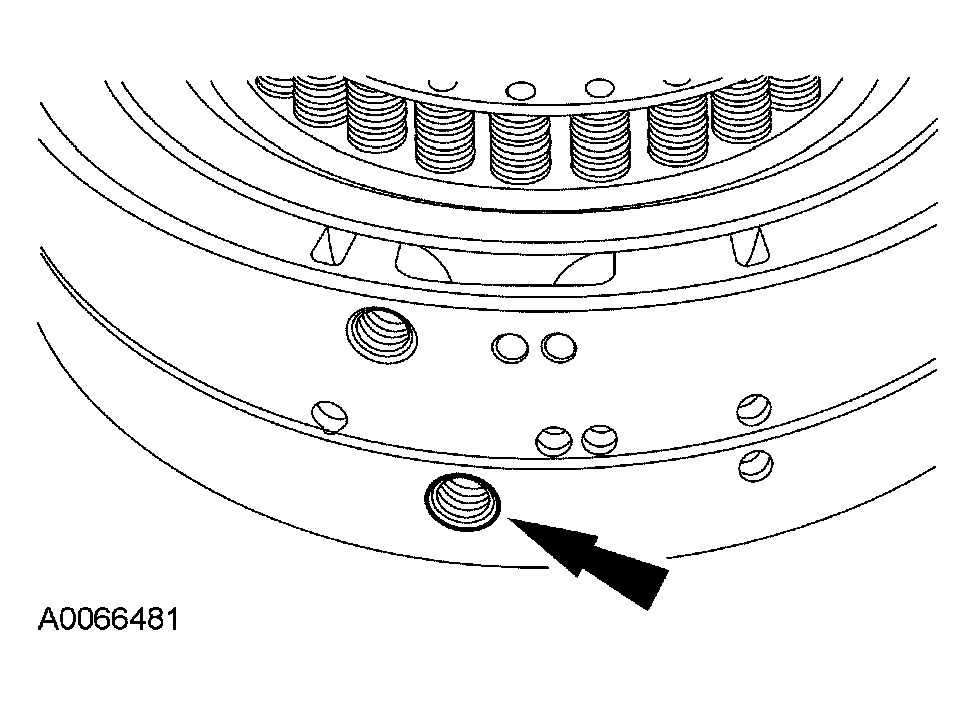

- After the center support is completely assembled, apply 231 kPa (20 psi) of air to the port and verify the function of the piston.
