Input Shell Assembly: Check

  1. Clean and inspect the forward/reverse sun gear and input shell assembly. Check the sun gear teeth, lug teeth and thrust surface for damage. If any evidence of damage is found, a new input shell assembly must be installed.
    Fig 1: Inspecting Forward/Reverse Sun Gear And Input Shell Assembly
    G03889472Courtesy of FORD MOTOR CO.
  2. Inspect the front bushing for damage. If any damage is found a new input shell assembly must be installed.

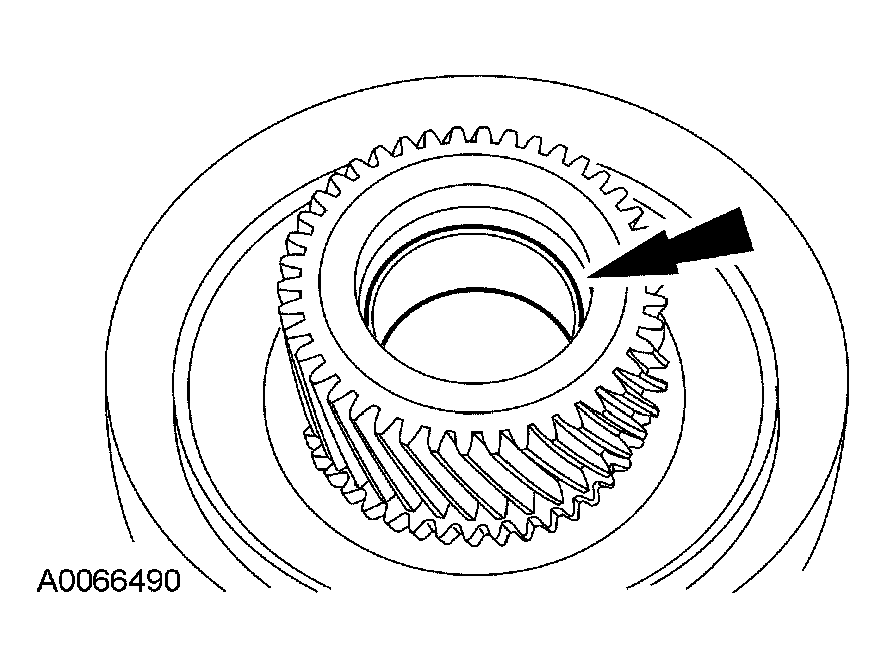

    Fig 2: Inspecting Front Bushing
    G03909253Courtesy of FORD MOTOR CO.
