Input Shell Assembly: Notes

  1. Inspect the forward/reverse sun gear input shell.
    1. Early production vehicles have a 42 tooth forward sun gear.
    2. Late production vehicles have a 55 tooth forward sun gear.
    3. Both early and late production vehicles have a 34 tooth reverse sun gear.

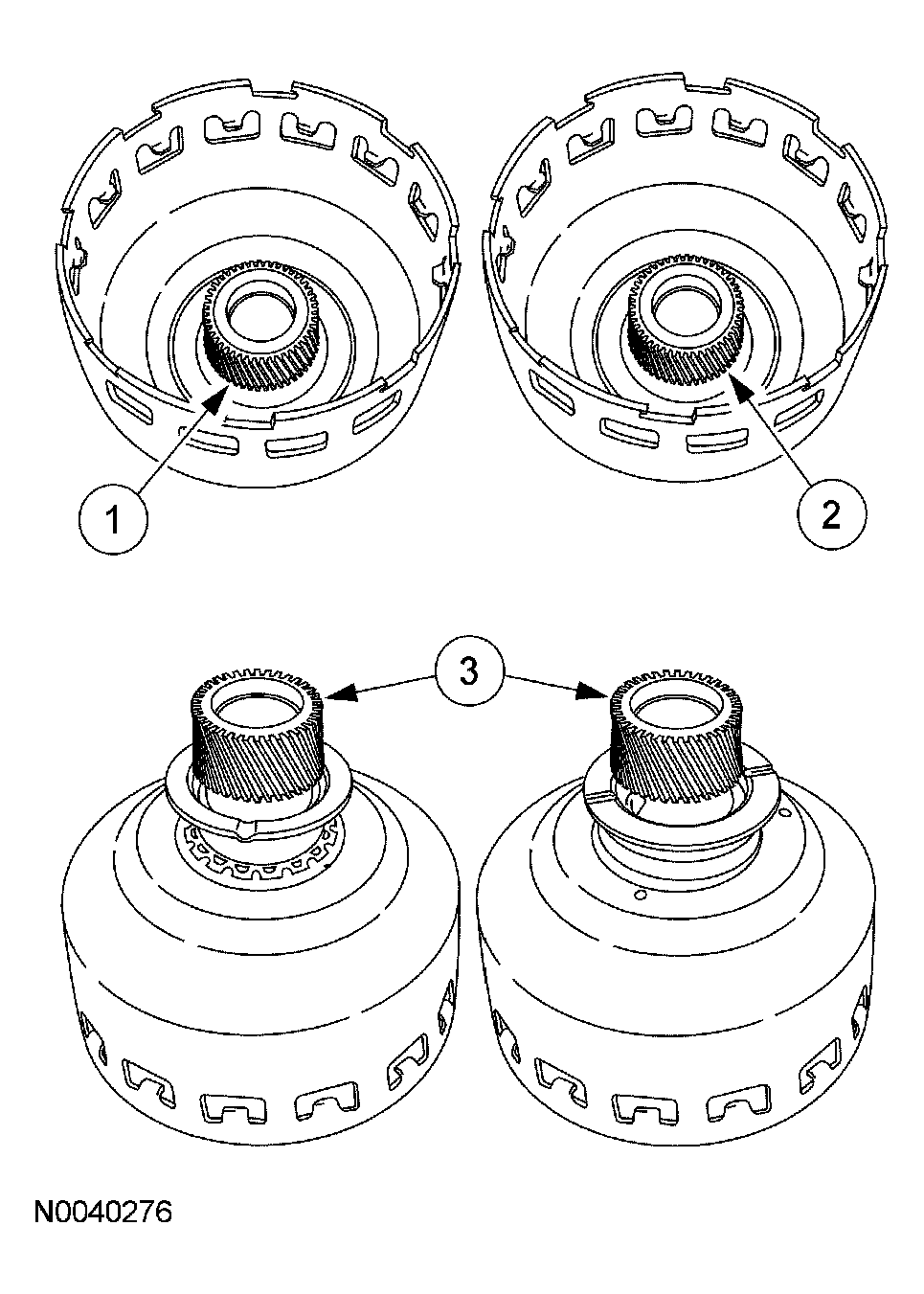

    Fig 1: Inspecting Forward/Reverse Sun Gear Input Shell
    G03909251Courtesy of FORD MOTOR CO.
