Pump Assembly: Assembly

    NOTE: All the valves must drop into their bores freely without hanging up.
    Fig 1: Installing Converter Clutch Control Valve, Spring, Plug
    G03889373Courtesy of FORD MOTOR CO.
  1. Install the converter clutch control valve, cooler bypass valve and thermostat valve, converter pressure limit valve, converter anti-drain back valve and the main regulator valve.
    1. Install the main regulator boost valve spring, plug and install the retainer clip.
    2. Install the converter anti-drain back valve, spring, plug and install the retainer clip.
    3. Install the converter pressure limit valve, spring, plug and install the retainer clip.
    4. Install the thermostat spring and valve.
    5. Install the cooler bypass valve, plug and clip.
    6. Install the converter clutch control valve, spring, plug and install the retainer clip.
  2. NOTE: Prior to installation, lightly lubricate the pump gears with clean automatic transmission fluid.
    Fig 2: Installing Gerotor Gearset With Both Dots Facing Up
    G03889374Courtesy of FORD MOTOR CO.
  3. Install the gerotor gearset with both dots facing up.
  4. Using the special tool, measure the pump gear to pump body clearance.

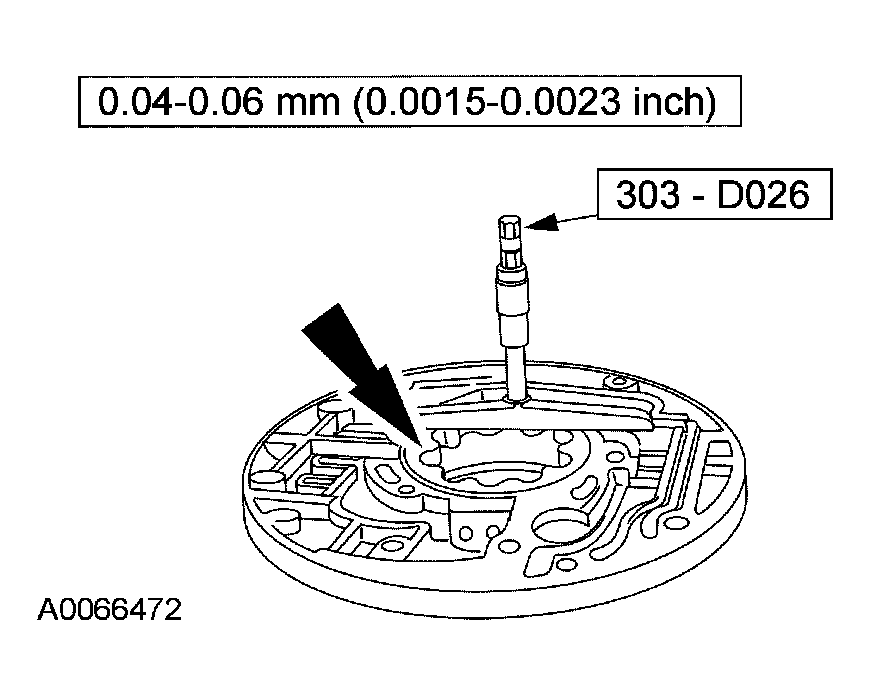

    Fig 3: Measuring Pump Gear To Pump Body Clearance
    G03889380Courtesy of FORD MOTOR CO.
  5. Install the separator plate.
    Fig 4: Installing Separator Plate
    G03889381Courtesy of FORD MOTOR CO.
  6. CAUTION: Prior to pump assembly, make sure all cup plugs are installed.
    CAUTION: Inspect mating surfaces of the pump body and the control body to make sure they are clean and free of nicks and burrs.
    NOTE: Note the location of the alignment pins. The pins should be installed at 1 o'clock and 7 o'clock with the pump filter inlet sump at 6 o'clock. The alignment pins should move freely when installing the band strap.

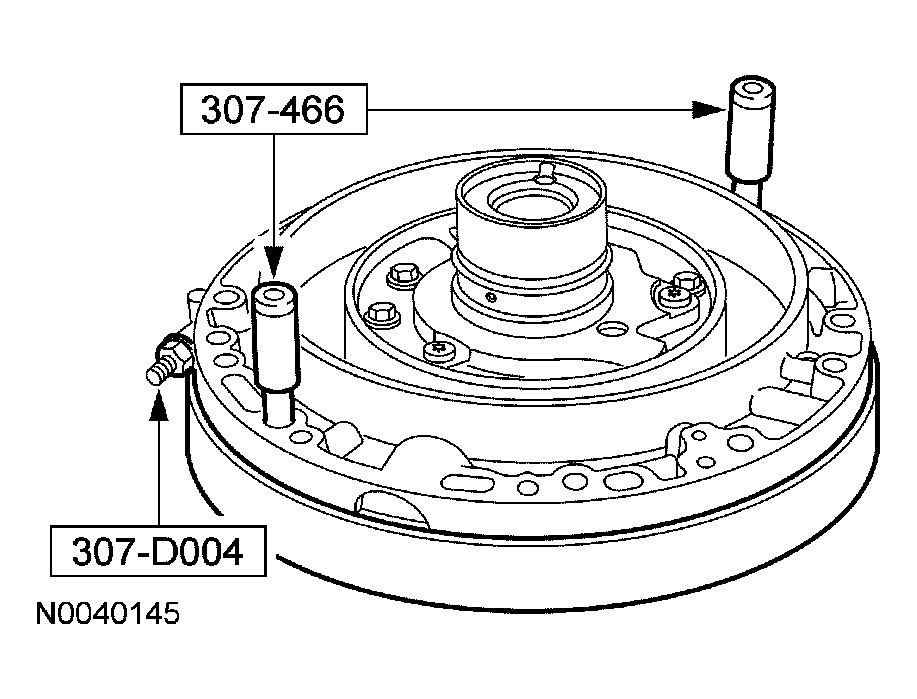

    Fig 5: Assembling Control Body And Stator Assembly Onto Pump Body
    G03909146Courtesy of FORD MOTOR CO.
  7. Using the special tools, assemble the control body and stator assembly onto the pump body.
  8. NOTE: Make sure that the outer edges of the pump body and the outer bolt holes are aligned during assembly.

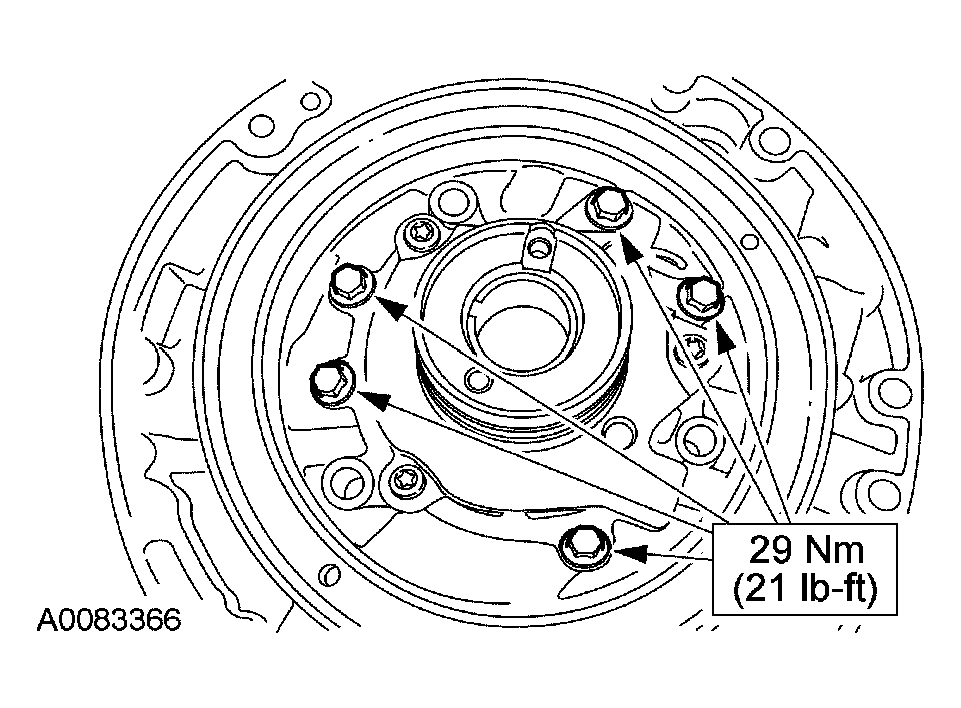

    Fig 6: Checking Outer Edges Of Pump Body And Bolt Holes Are Aligned With Torque Specification
    G03889383Courtesy of FORD MOTOR CO.
  9. Assemble the pump and loosely install the bolts.
    • Check that the outer edges of the pump body and the bolt holes are aligned. Tighten the bolts.
  10. Lubricate with clean automatic transmission fluid and install a new overdrive piston.
    Fig 7: Installing A New Overdrive Piston
    G03889370Courtesy of FORD MOTOR CO.
  11. Install the overdrive piston return spring.

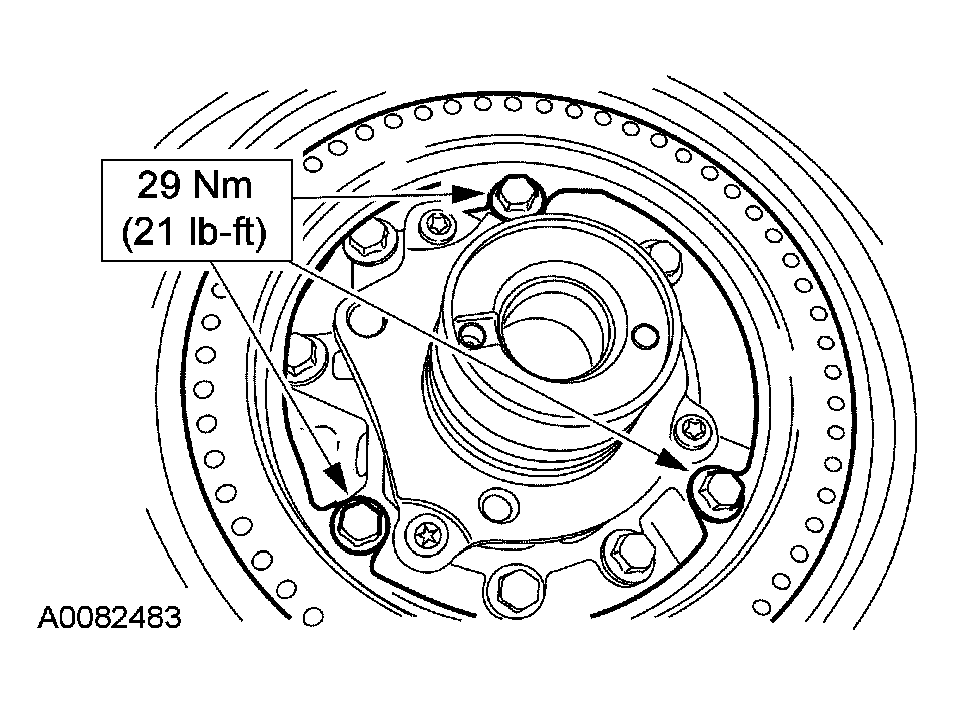

    Fig 8: Installing Overdrive Piston Return Spring With Torque Specification
    G03889385Courtesy of FORD MOTOR CO.
  12. Install new pump seals.
    Fig 9: Installing New Pump Seals
    G03889367Courtesy of FORD MOTOR CO.
  13. Coat the seal with automatic transmission fluid and install the pump outer diameter square-cut front pump seal with the white stripe facing out.
    Fig 10: Installing Pump Outer Diameter Square-Cut Front Pump Seal With White Stripe Facing Out
    G03889368Courtesy of FORD MOTOR CO.
  14. Install a new front pump seal, using the special tool.
    Fig 11: Installing A New Front Pump Seal
    G03889388Courtesy of FORD MOTOR CO.
  15. Install a new front pump stator support seal.
    Fig 12: Installing A New Front Pump Stator Support Seal
    G03889389Courtesy of FORD MOTOR CO.
  16. NOTE: Lightly lubricate the thrust washer and the bearing with petroleum jelly to hold them in place during assembly.
    Fig 13: Installing Pump Thrust Washer And Overdrive Sun Gear Thrust Bearing (1 Of 2)
    G03889390Courtesy of FORD MOTOR CO.

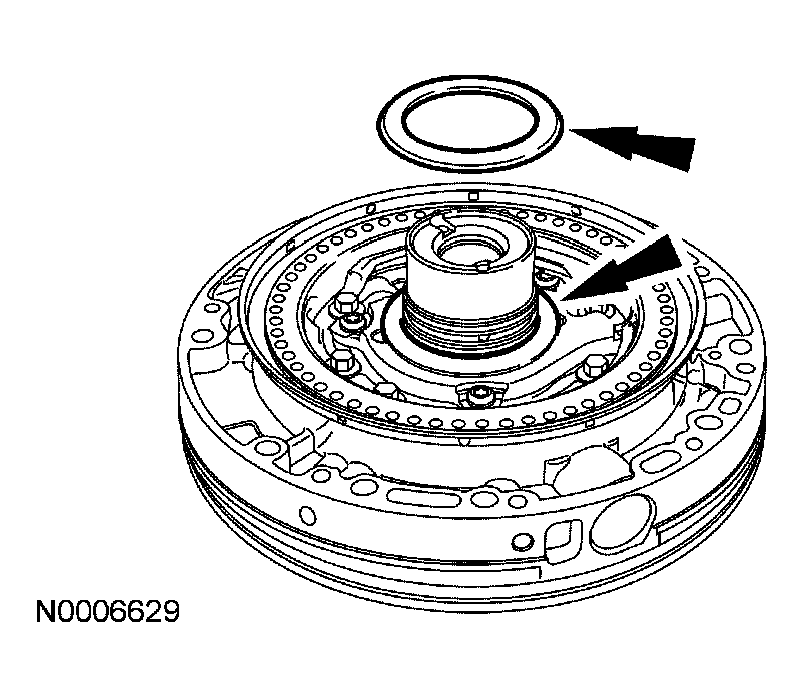

    Fig 14: Installing Pump Thrust Washer And Overdrive Sun Gear Thrust Bearing (2 Of 2)
    G03889391Courtesy of FORD MOTOR CO.
  17. Install the No. 1 pump thrust washer and the No. 2A overdrive sun gear thrust bearing.
