Main Control Valve Body - Accumulator Body Check: Assembly

  1. Install the control valves and springs.

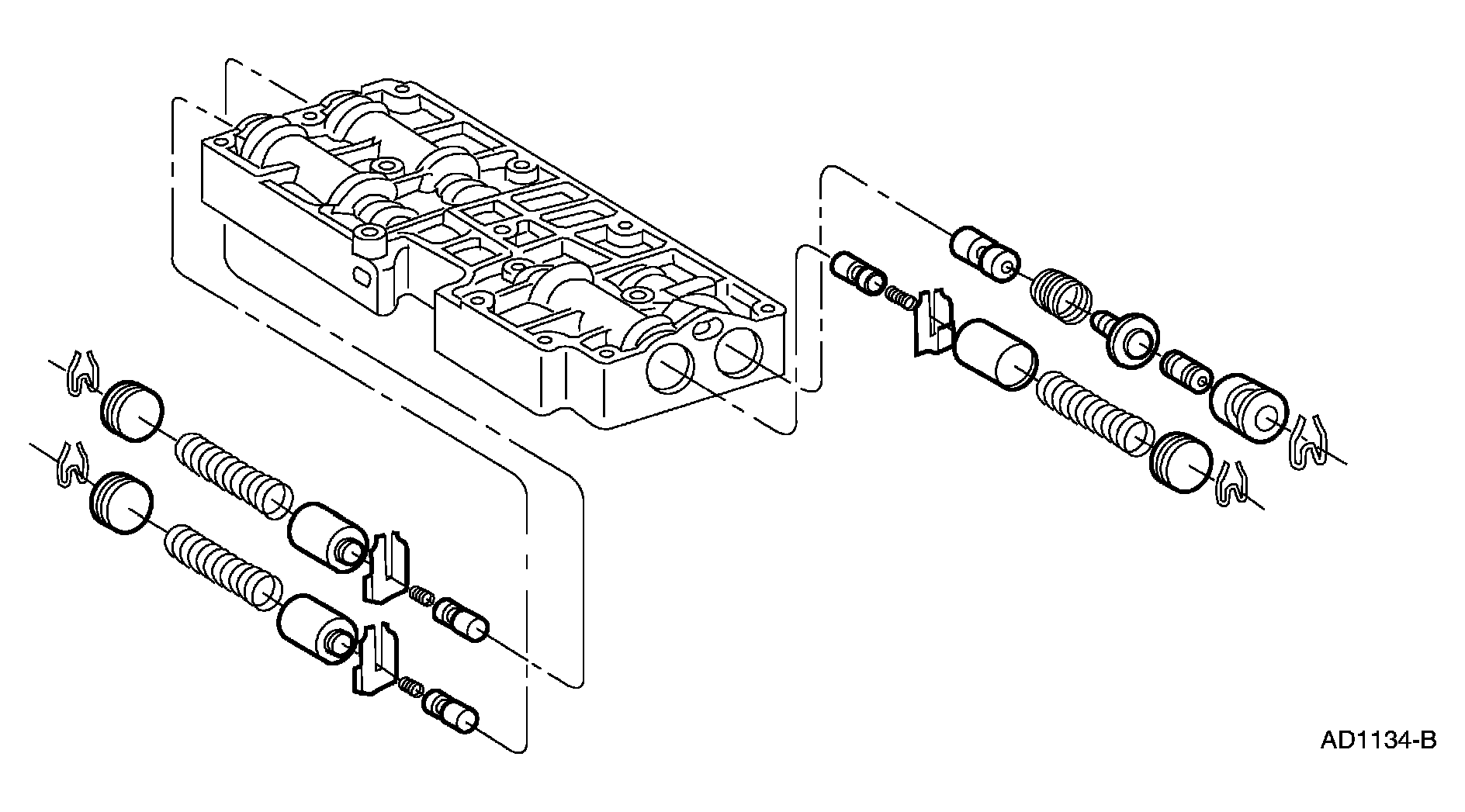

Fig 1: Installing Control Valves And Springs
G03908467Courtesy of FORD MOTOR CO.
